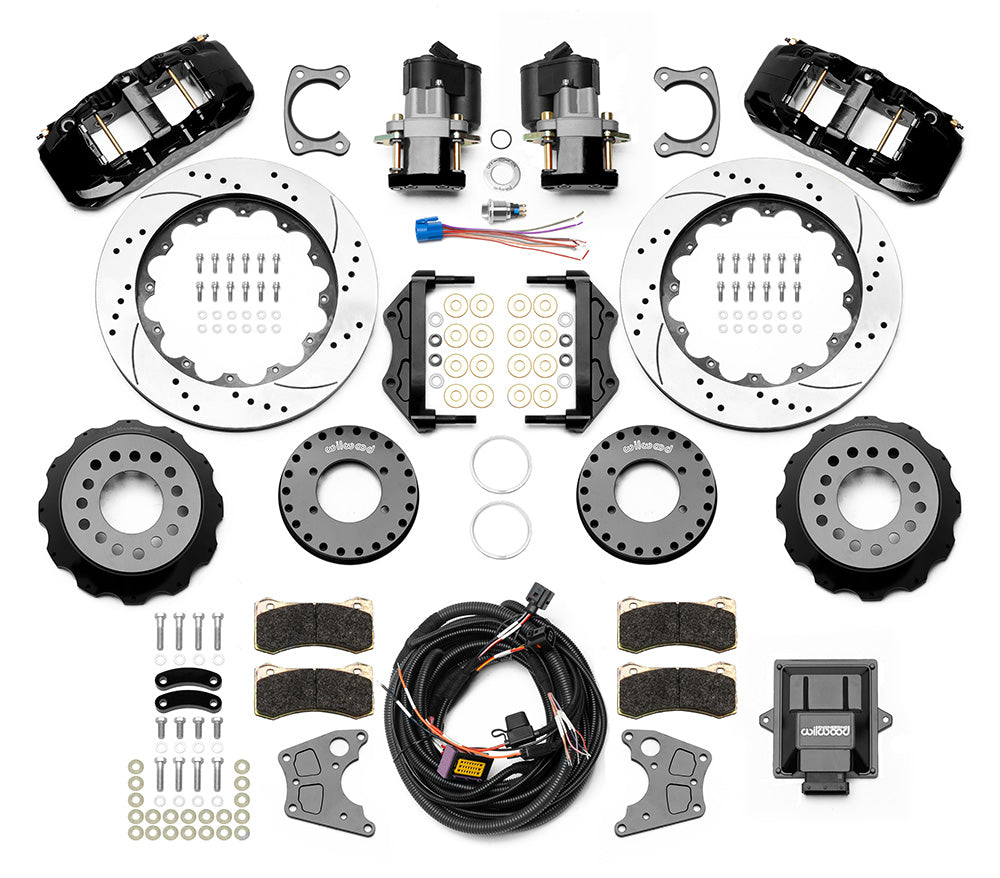

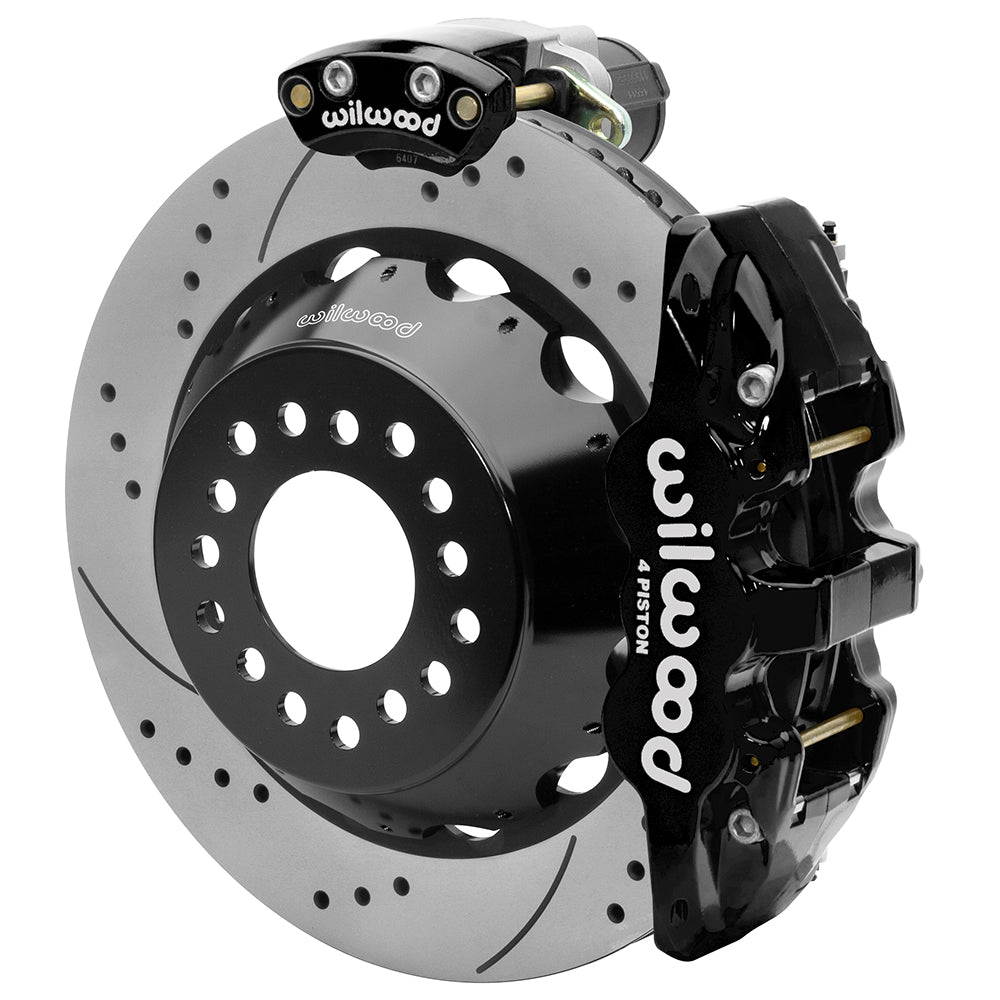

Wilwood Small Ford Rear Electronic Parking Brake Kit, 2.66-Inch Offset, Black Calipers and SRP Drilled 14-Inch Rotors

Use a 2.66-inch Small Ford rear offset with drilled and slotted 14-inch rotors and black AERO4 calipers. Verify the flange and wheel clearance. This conversion keeps hydraulic service braking and electric parking in separate calipers selected for the documented mounting arrangement. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Housing / axle interface: Small Ford; axle offset 2.66 in
• Rotor dimensions, construction and face: 14.00 × 1.10 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Hydraulic caliper specification: 4-piston AERO4; Black Powder Coat
• Supplied service-pad compound: BP-10
• Mounting and piston details: Radial; piston material: stainless steel
• Hydraulic inlet: 1/8-27 NPT
• Hose provision: Not included
• Hardware supplied: mounting hardware
• Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16176-D
• Kit function: Rear Brake Kits - Street Performance; rear position
• Quantity: Sold as a kit.

Fitment & Compatibility

Measure 2.66 inches of axle offset at the Small Ford housing interface and check all flange and bearing-retainer dimensions before ordering. The Town Car table entry below is conditional on the actual axle configuration; do not select this kit by vehicle identity alone. AERO4 hydraulic calipers provide the service brake, while separate motor-operated parking calipers use the supplied controller and wiring harness. Electronic parking does not replace an emergency stopping system. Allow for wiring protection, the two-piece rotor envelope and separately sourced flexlines.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions · Technical bulletin

With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
