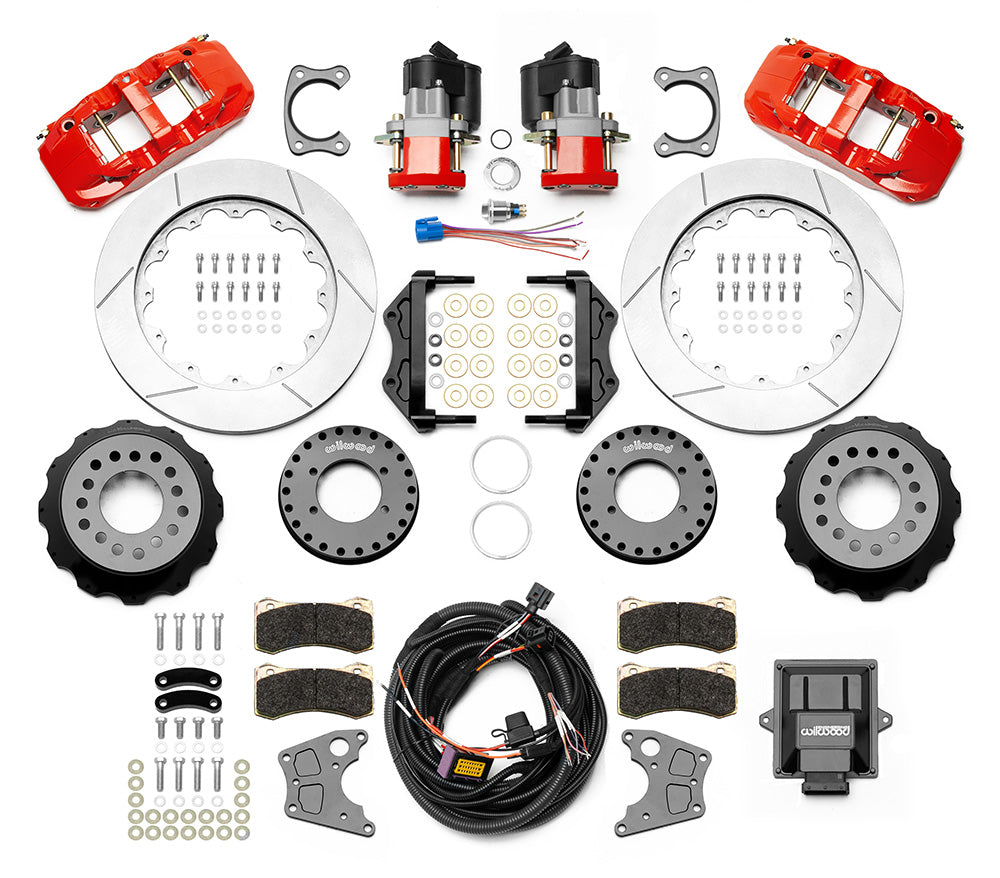

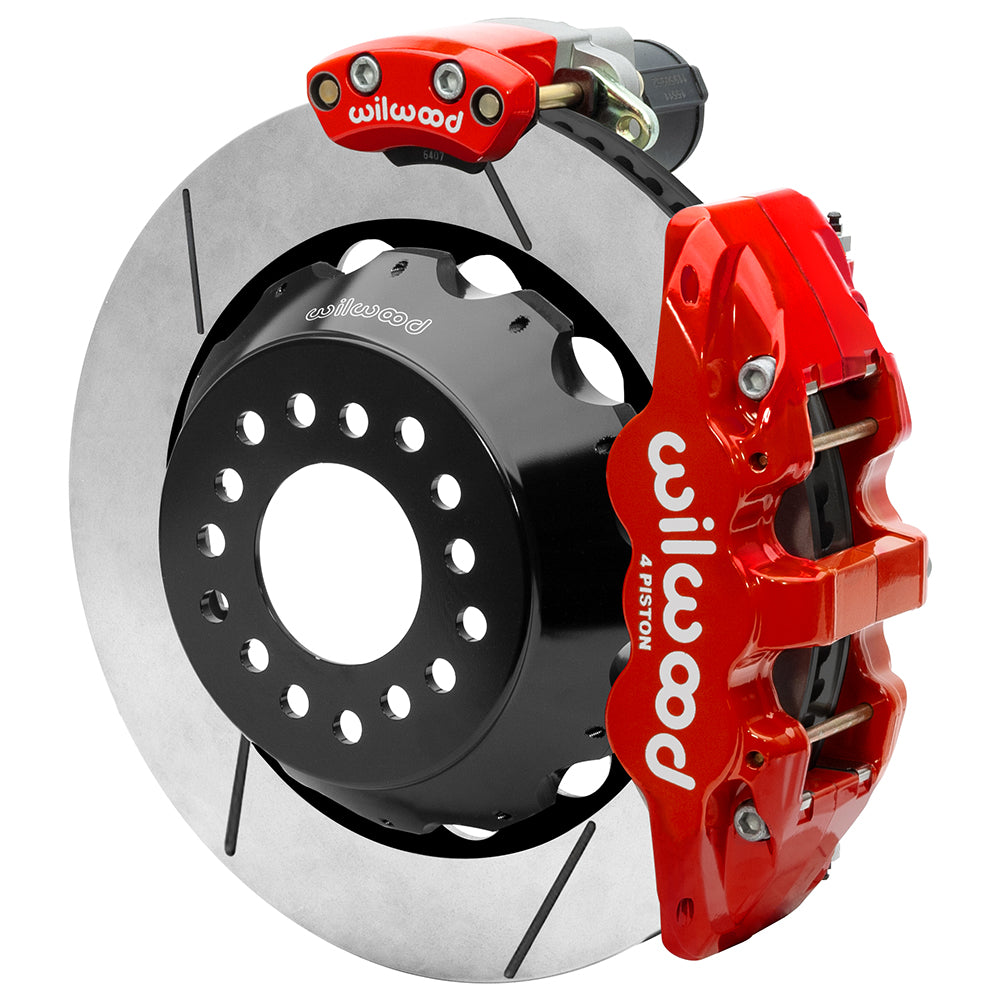

Wilwood Small Ford 2.50-Inch Offset Rear Brake Kit with Red Four-Piston Calipers, 14-Inch GT Rotors and Electric Parking

Plan rear electric parking around the Small Ford 2.50-inch axle interface, red four-piston calipers and slotted 14-inch rotors. Check wheel space. This conversion keeps hydraulic service braking and electric parking in separate calipers selected for the documented mounting arrangement. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Application / axle position: Rear Brake Kits - Street Performance; rear position
• Rotor specification: 14.00 × 1.10 inches; Spec-37 Iron; vented; GT Slotted
• Supplied service-pad compound: BP-20
• Wheel-size starting point: 18 in; verify the complete clearance drawing
• Flexline inclusion: Not included
• Caliper family, piston count and finish: 4-piston AERO4; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Housing / axle interface: Small Ford; axle offset 2.50 in
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Caliper mounting: Radial; piston material: stainless steel
• Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Supplied mounting components: mounting hardware
• Manufacturer part number: 140-16175-R
• Quantity: Sold as a kit.

Fitment & Compatibility

This conversion is selected by the Small Ford housing flange and a measured 2.50-inch axle offset. Compare the housing bolt centers, bearing retainer, axle registration and offset with the Wilwood worksheet before choosing a kit. The 1990 Lincoln Town Car entry in the table below requires individual axle verification; model year alone does not establish compatibility. The electric parking system includes its control unit and harness and is for parking, not an emergency stopping brake. Provide compatible hydraulic lines separately and check the complete wheel envelope against DS-1424.

Wilwood product specifications · Installation instructions · Technical bulletin

With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
