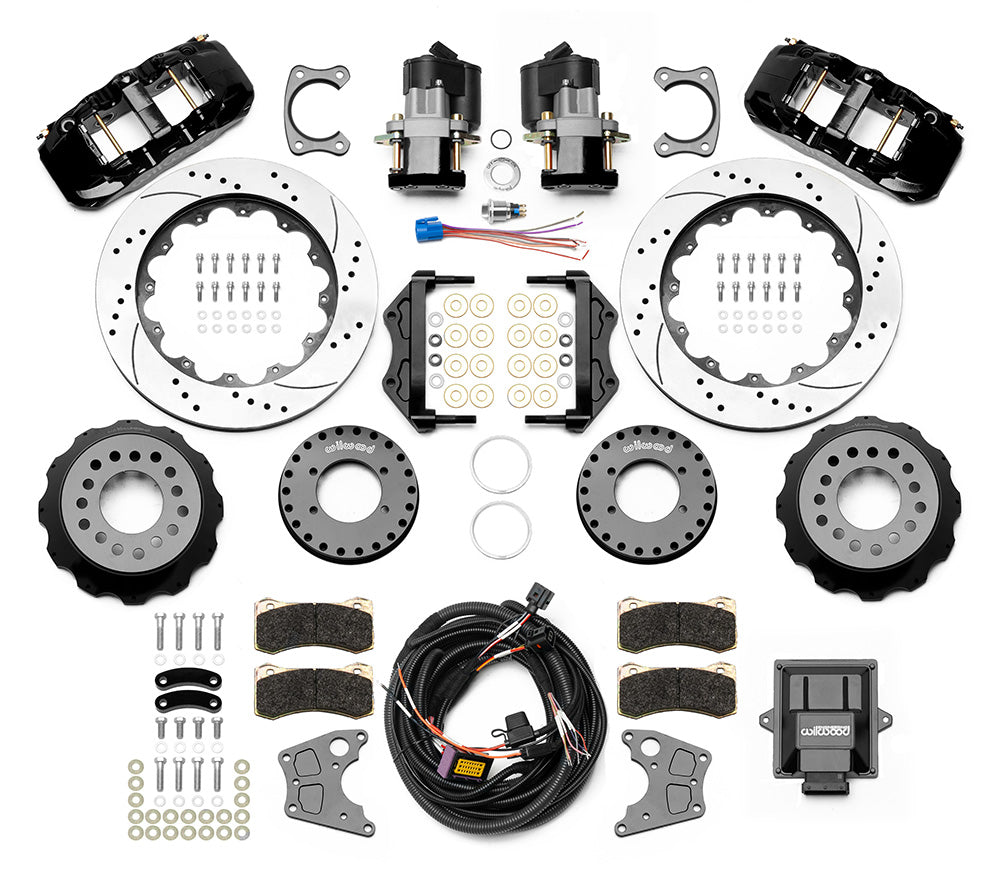

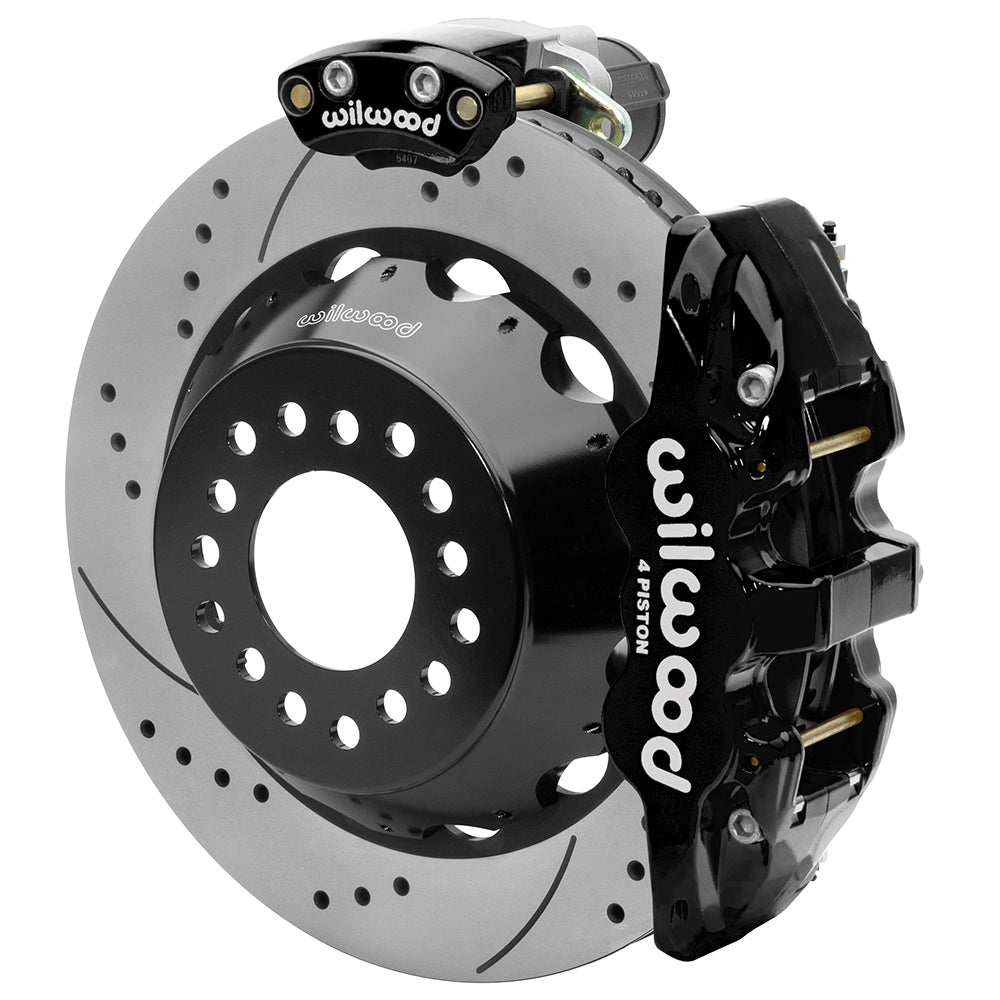

Wilwood 14-Inch Drilled Rear Brake Conversion with Black AERO4 Calipers and Electronic Parking for Small Ford 2.50-Inch Offset

Choose drilled and slotted rear rotors with black four-piston calipers for a Small Ford flange. Measure the 2.50-inch offset and check EPB wiring. This conversion keeps hydraulic service braking and electric parking in separate calipers selected for the documented mounting arrangement. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Housing / axle interface: Small Ford; axle offset 2.50 in
• Rotor dimensions, construction and face: 14.00 × 1.10 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Hydraulic caliper specification: 4-piston AERO4; Black Powder Coat
• Supplied service-pad compound: BP-10
• Mounting and piston details: Radial; piston material: stainless steel
• Hydraulic inlet: 1/8-27 NPT
• Hose provision: Not included
• Hardware supplied: mounting hardware
• Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16175-D
• Kit function: Rear Brake Kits - Street Performance; rear position
• Quantity: Sold as a kit.

Fitment & Compatibility

This conversion is selected by the Small Ford housing flange and a measured 2.50-inch axle offset. Compare the housing bolt centers, bearing retainer, axle registration and offset with the Wilwood worksheet before choosing a kit. The 1990 Lincoln Town Car entry in the table below requires individual axle verification; model year alone does not establish compatibility. The electric parking system includes its control unit and harness and is for parking, not an emergency stopping brake. Provide compatible hydraulic lines separately and check the complete wheel envelope against DS-1424.

Wilwood product specifications · Installation instructions · Technical bulletin

With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
