Wilwood Black Rear AERO4/EPB Brake Kit for Big Ford Axles with 2.36-Inch Offset, Drilled 14-Inch Spec-37 Rotors

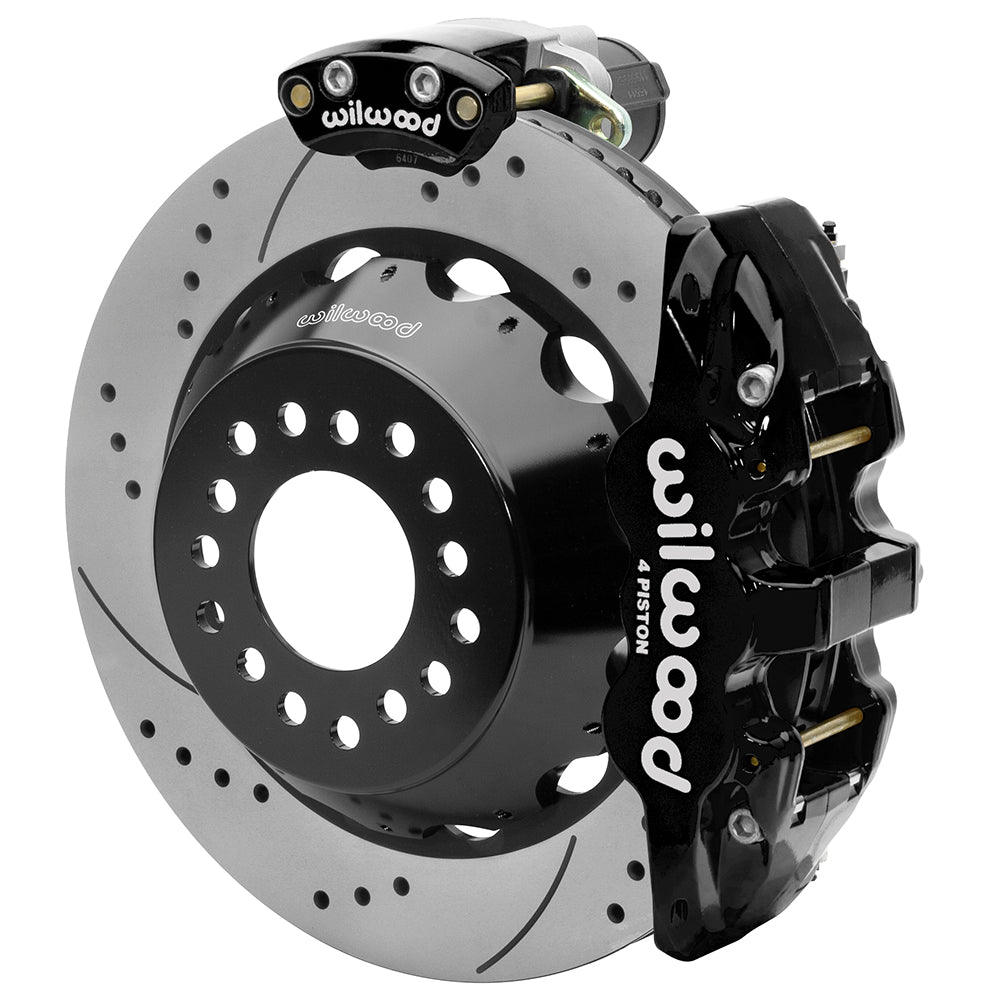

The drilled-ring version of this Big Ford rear conversion uses black AERO4 hydraulic calipers and separate EPB units. Its two-piece 14-inch rotor assemblies require both correct axle registration and clearance for the parking motors and electrical connectors. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. Its disc brake systems and components serve motorsport, street-performance and specialized applications. The range includes calipers, rotors, master cylinders, valves, fittings and brake lines, chosen to suit the mounting and hydraulic requirements of the complete system.

Technical Details

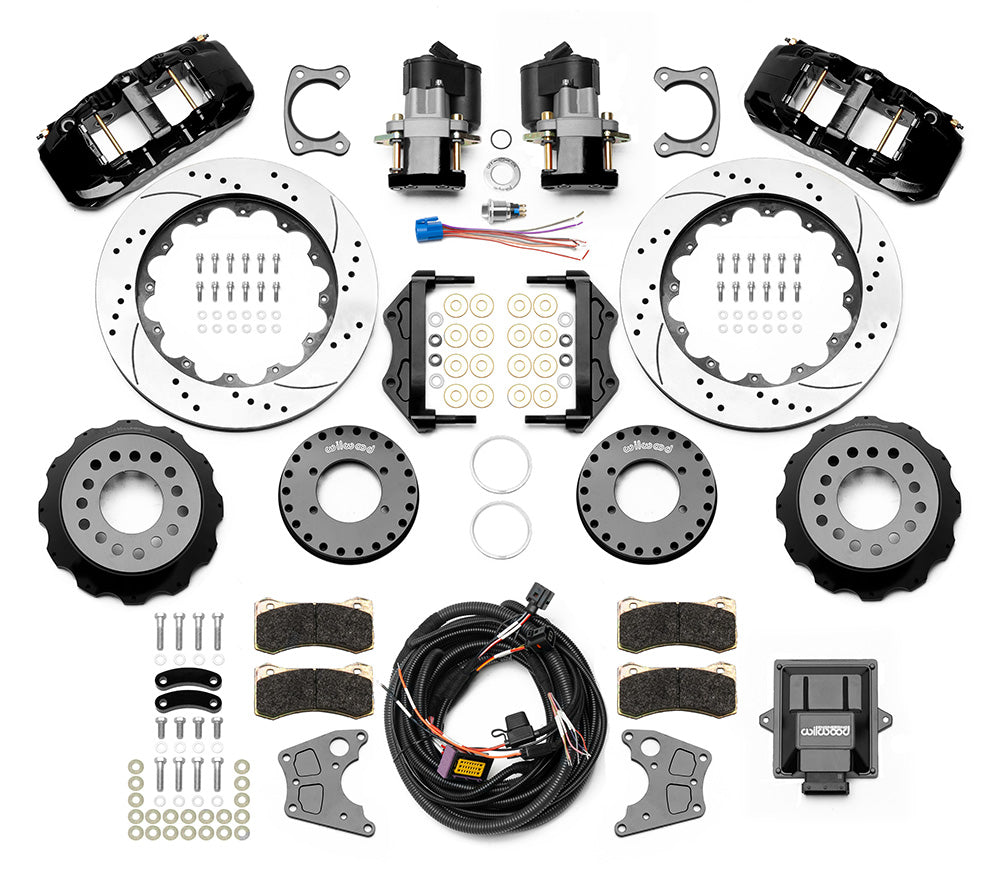

• Manufacturer part number: 140-16173-D; supplied as one rear axle brake kit.
• Hydraulic service calipers: AERO4; 4 pistons per caliper; Forged Aluminium body; radial mounting; Stainless pistons.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Rotor mounting hats: Aluminum; Black E-Coat; hat offset 1.625 inches. This is a hat dimension, not the axle offset.
• Cataloged rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm bolt circle; cataloged stud-hole clearances 0.520 in; 13.21 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Hydraulic installation: Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Rotor dimensions: 14.00 in; 355.6 mm outside diameter; 1.10 in; 27.94 mm thick.
• Minimum nominal wheel diameter: 18 in; 457.2 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Supplied service pads: BP-10 compound; verify suitability for the intended operating conditions.
• Parking-brake package: Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.
• Caliper finish and port: Black Powder Coat; hydraulic inlet 1/8-27 NPT.
• Rotor material and surface: Spec-37 Iron; vented; SRP Drilled & Slotted; surface finish Black Electro Coat.
• Rear axle interface: Big Ford housing flange; 2.36 in; 59.94 mm axle offset. Measure the installed assembly.

Fitment & Compatibility

Installation requires the Big Ford housing flange and a measured 2.36-inch axle offset. Compare the housing bolt pattern, bearing/axle retention, wheel pattern and center registration with the kit drawing, then check both service-caliper and EPB-motor clearance. Nominal 18-inch wheel diameter is only the starting point.

Review the fitment table below after identifying the rear axle. Confirm housing-flange dimensions, retention hardware, offset, register and wheel pattern against the kit drawing. For a 1990 Lincoln Town Car, identify the actual axle and confirm the specified interface; do not select this conversion from model and year alone.

The supplied EPB switch and pigtail connect through a universal harness to the controller and separate parking-caliper motors. Vehicle-specific power, ground and ignition/accessory wiring still requires installation under DS1353. This static-hold system is independent of the service brakes and is not intended for emergency stopping.

PMB Performance has more than 20 years of parts experience and can help assess the documented brake configuration. Provide the vehicle details together with clear mounting-area photographs and measurements.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.
