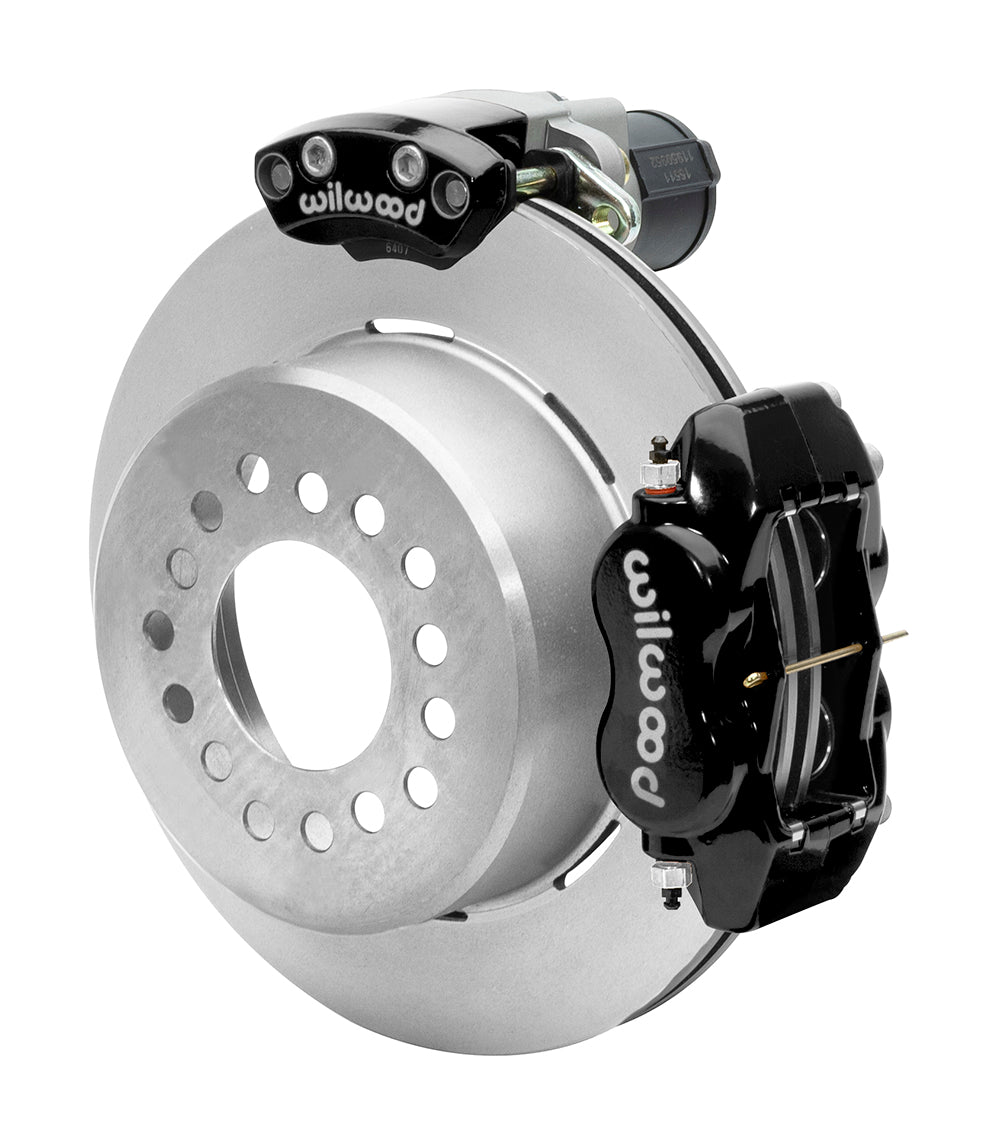

Wilwood Black Dynalite Rear EPB Conversion for Chevy 12-Bolt C-Clip Axles, Plain 12.19-Inch Iron Rotors, 2.75-Inch Offset

Black Dynalite calipers provide service braking against plain 12.19-inch rear rotor/hat assemblies in this Chevy 12-bolt kit. Separate motor-operated parking units share the rotors, with the mounting configuration designed for C-clip axles at 2.75 inches of offset. From its Camarillo, California base, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer part number: 140-16164; supplied as one rear axle brake kit.
• Minimum nominal wheel diameter: 15 in; 381 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Cataloged rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm bolt circle; cataloged stud-hole clearances 0.52 in; 13.21 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Rear axle interface: 12 Bolt housing flange; 2.75 in; 69.85 mm axle offset. Measure the installed assembly.
• Rotor material and surface: Iron; vented; Plain Face; surface finish Plain.
• Supplied service pads: BP-10 compound; verify suitability for the intended operating conditions.
• Hydraulic service calipers: Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; lug mounting; Stainless pistons.
• Hydraulic installation: Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thick.

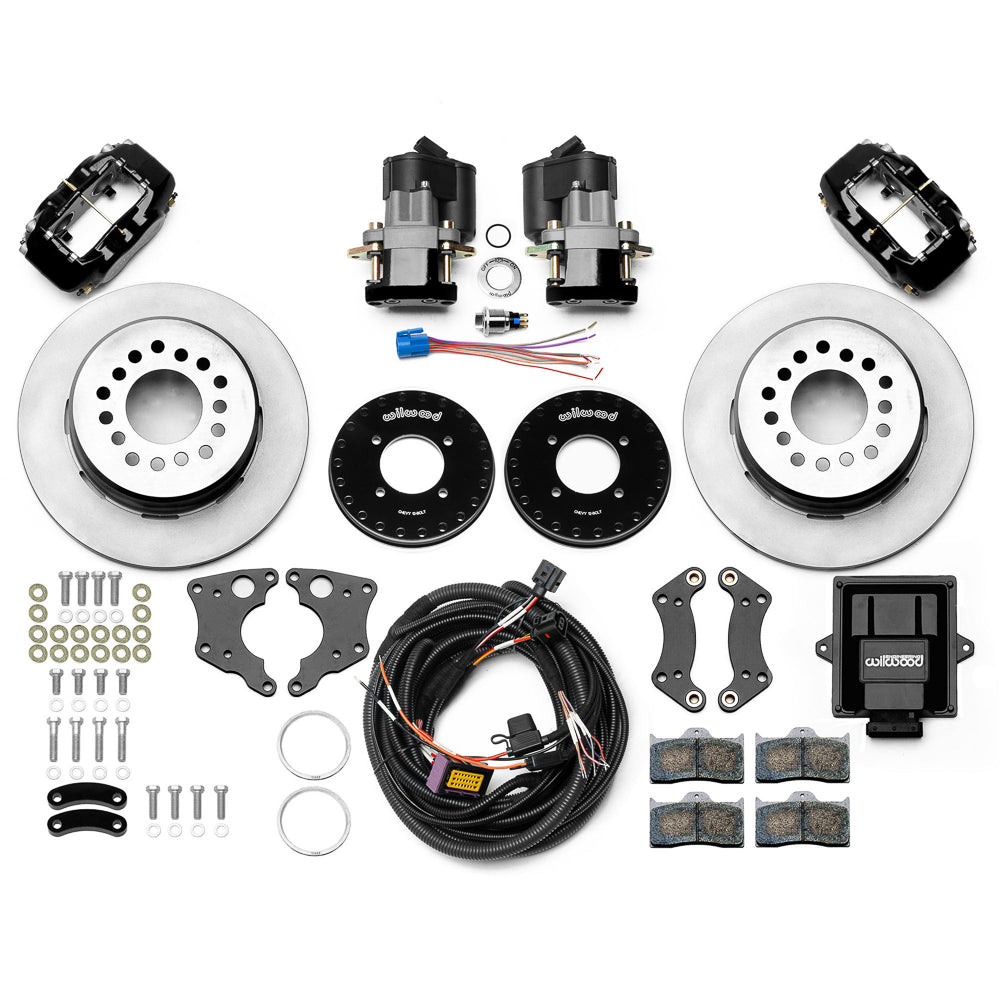

• Parking-brake package: Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.
• Caliper finish and port: Black Powder Coat; hydraulic inlet 1/8-27 NPT.

Fitment & Compatibility

Use only an axle that matches the documented 12 Bolt flange and 2.75-inch offset. Rear-end names can conceal different bearing flanges, so measure the installed parts. Check the rotor register, studs, axle retention and complete wheel outline rather than relying on the nominal 15-inch wheel size. Confirm C-clip axle retention and end play; a C-clip eliminator or different housing flange requires its own fit assessment.

The fitment table below is subject to physical axle-interface confirmation. Check housing flange, bearing arrangement, offset, wheel-stud pattern and center register before ordering. For Chevelle, 442, Beaumont, Camaro and Apollo vehicles, establish rear-axle fit independently of the front spindle configuration. Confirm the housing flange, axle retention and offset on the installed rear assembly.

Parking actuation is electric through a supplied controller, switch with pigtail, universal harness and two motor-driven calipers. The installer must provide suitable vehicle power/ground and ignition/accessory connections and check lead routing to DS1353. These additional calipers are for parking hold, not an emergency stop function.

Contact PMB Performance if the installed hardware differs from the documented arrangement. More than 20 years of parts experience informs our fitment review; photographs and measured dimensions are particularly useful.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.
