Wilwood Drilled 12.19-Inch Rear Brake Conversion with Black Dynalite and EPB Calipers, Small Ford 2.66-Inch Axle Geometry

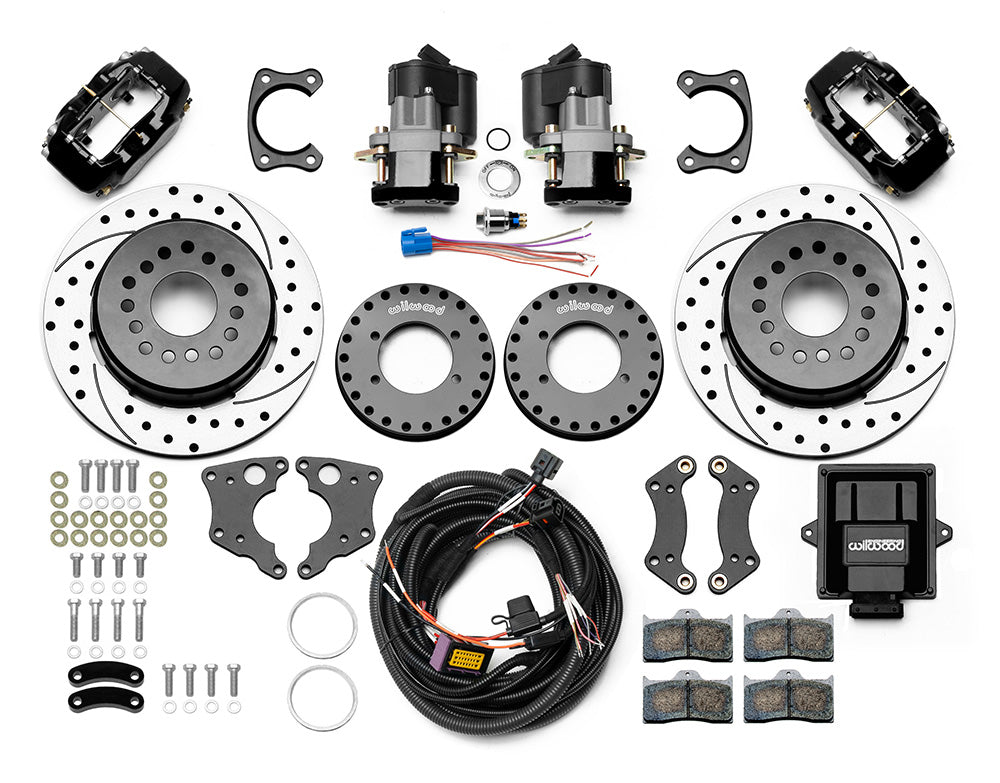

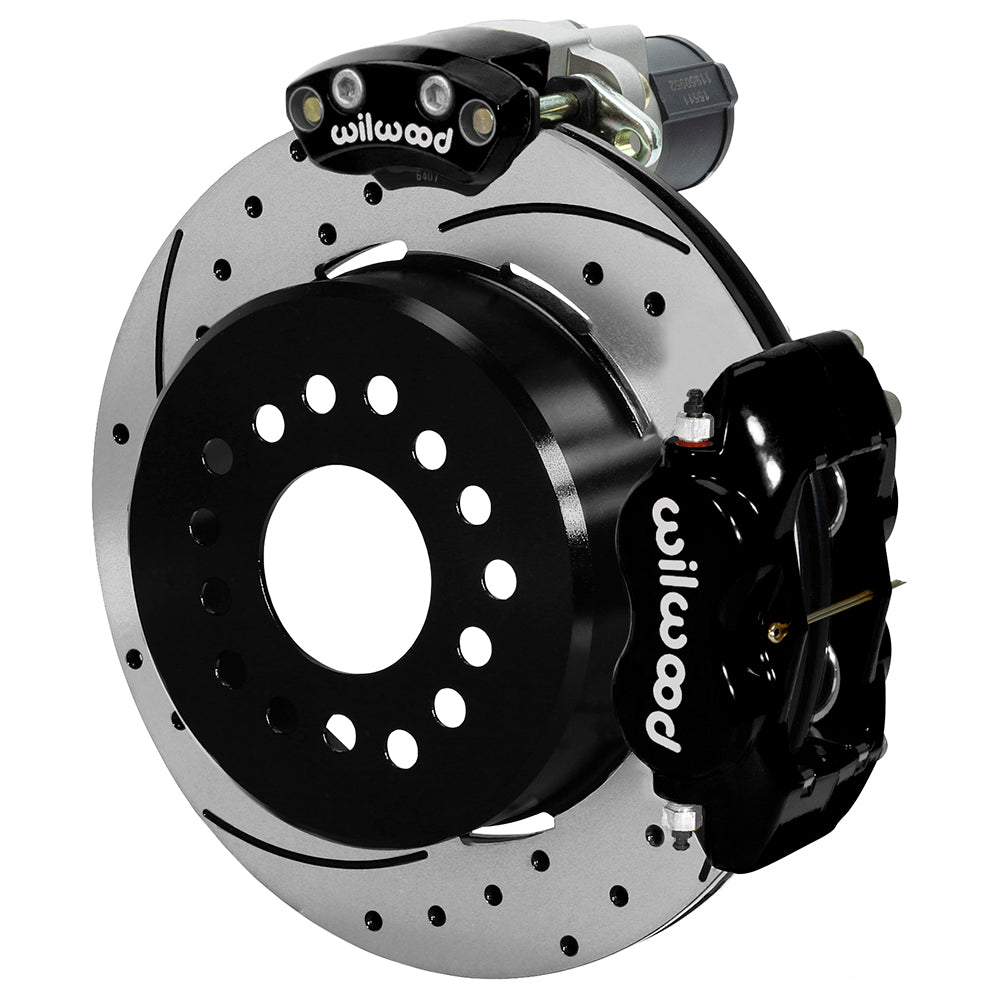

The drilled rear kit supplies black four-piston service calipers and independent electric parking calipers for a Small Ford axle. Drilled-and-slotted iron rotors fit the 2.66-inch-offset arrangement, with the control unit and harness included. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering manufactures and designs disc brake systems and components. The range serves motorsport, street-performance and specialized applications with calipers, brake rotors, master cylinders, valves, fittings and brake lines. Matching individual components requires considering the full brake assembly.

Technical Details

• Manufacturer part number: 140-16154-D; supplied as one rear axle brake kit.
• Cataloged rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm bolt circle; cataloged stud-hole clearances 0.52 in; 13.21 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Hydraulic service calipers: Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; lug mounting; Stainless pistons.
• Rear axle interface: Small Ford housing flange; 2.66 in; 67.56 mm axle offset. Measure the installed assembly.
• Parking-brake package: Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.
• Caliper finish and port: Black Powder Coat; hydraulic inlet 1/8-27 NPT.
• Hydraulic installation: Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Rotor material and surface: Iron; vented; SRP Drilled & Slotted; surface finish Black Electro Coat.
• Minimum nominal wheel diameter: 15 in; 381 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Supplied service pads: BP-10 compound; verify suitability for the intended operating conditions.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thick.

Fitment & Compatibility

Installation requires the Small Ford housing flange and a measured 2.66-inch axle offset. Compare the housing bolt pattern, bearing/axle retention, wheel pattern and center registration with the kit drawing, then check both service-caliper and EPB-motor clearance. Nominal 15-inch wheel diameter is only the starting point.

The fitment table below is subject to physical axle-interface confirmation. Check housing flange, bearing arrangement, offset, wheel-stud pattern and center register before ordering. For a 1990 Lincoln Town Car, identify the actual axle and confirm the specified interface; do not select this conversion from model and year alone.

Service braking remains hydraulic; the additional electric calipers are for static parking hold and must not be used as an emergency stop brake. The switch/pigtail, controller and universal EPB harness are supplied. Plan the vehicle’s 12V power, ground and ignition/accessory wiring and protect all motor leads according to DS1353.

Before selecting the conversion, PMB Performance can review the listed requirements with you. We have over 20 years of parts experience; include axle measurements and any wheel, hub or suspension changes.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
