Wilwood Rear Dynalite Brakes and EPB for Small Ford Axles with 2.66-Inch Offset, Black Calipers and Plain 12.19-Inch Rotors

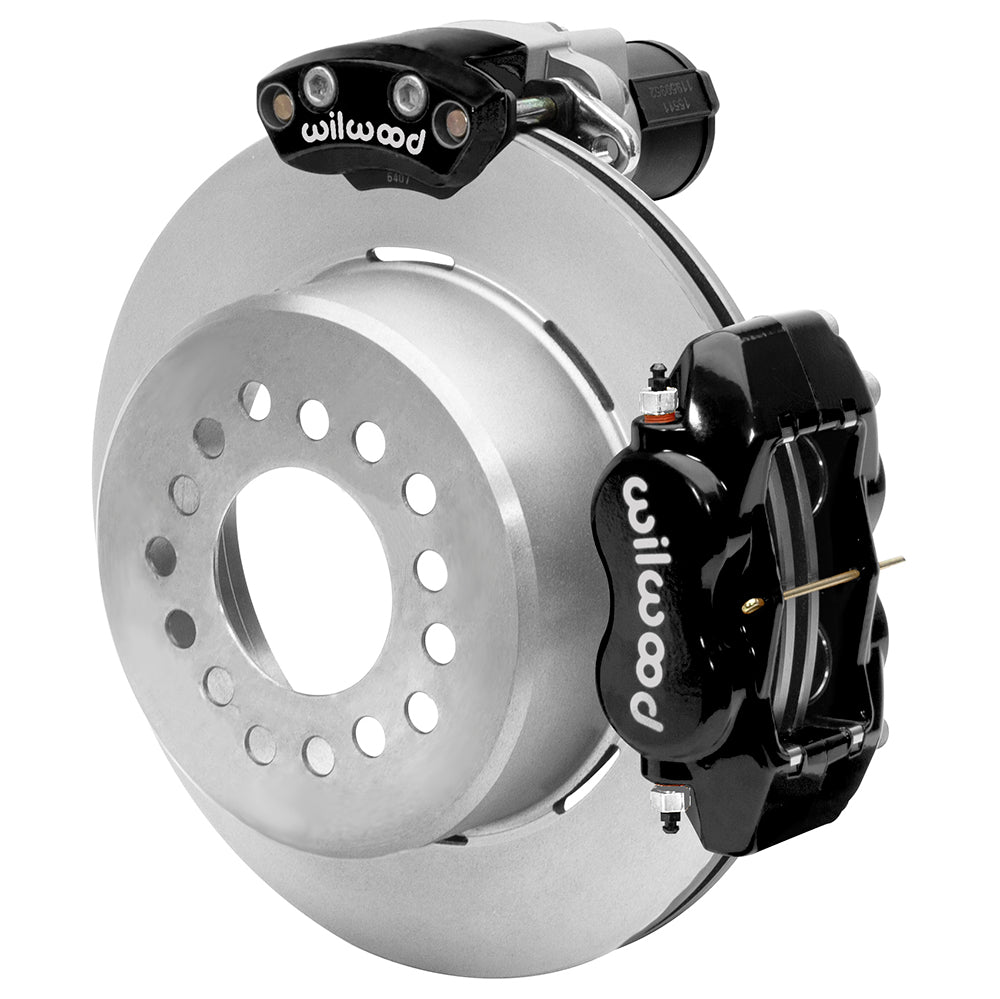

This Small Ford rear conversion combines black Dynalite hydraulic calipers with plain 12.19-inch rotor assemblies. Separate electric parking calipers use the same rotors, with the axle hardware positioned for the specified 2.66-inch offset. From its Camarillo, California base, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications, with individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer part number: 140-16154; supplied as one rear axle brake kit.
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thick.
• Rear axle interface: Small Ford housing flange; 2.66 in; 67.56 mm axle offset. Measure the installed assembly.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Rotor material and surface: Iron; vented; Plain Face; surface finish Plain.
• Minimum nominal wheel diameter: 15 in; 381 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Supplied service pads: BP-10 compound; verify suitability for the intended operating conditions.
• Caliper finish and port: Black Powder Coat; hydraulic inlet 1/8-27 NPT.
• Cataloged rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm bolt circle; cataloged stud-hole clearances 0.52 in; 13.21 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Hydraulic installation: Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Hydraulic service calipers: Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; lug mounting; Stainless pistons.

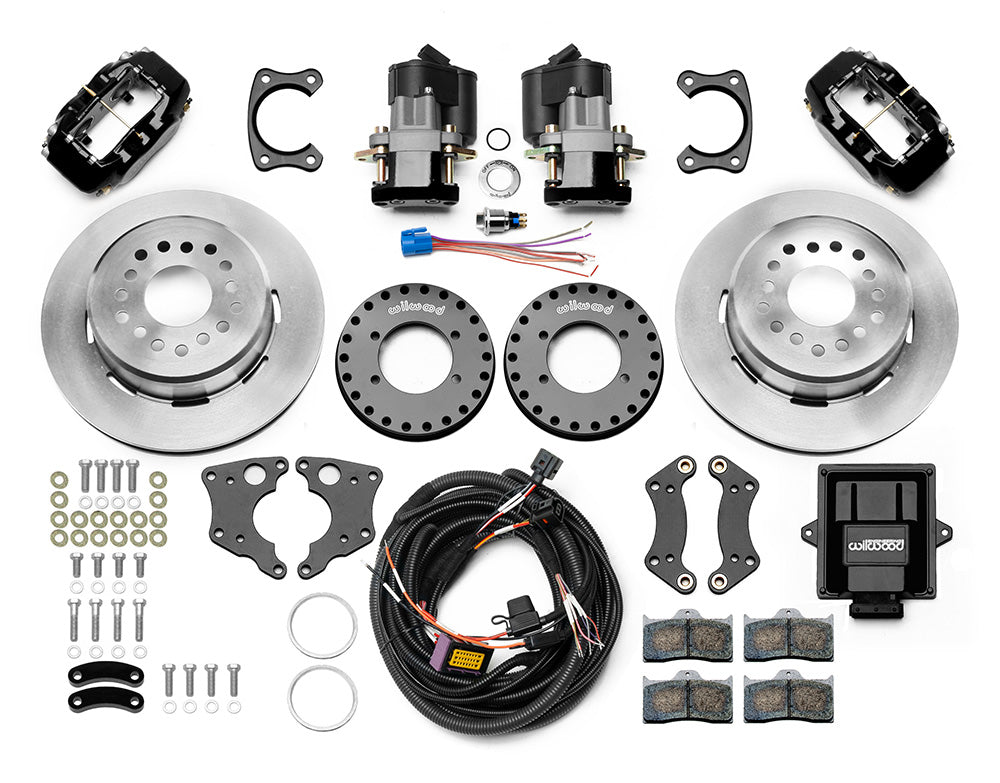

• Parking-brake package: Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.

Fitment & Compatibility

Use only an axle that matches the documented Small Ford flange and 2.66-inch offset. Rear-end names can conceal different bearing flanges, so measure the installed parts. Check the rotor register, studs, axle retention and complete wheel outline rather than relying on the nominal 15-inch wheel size.

Any vehicle application in the fitment table below depends on the installed axle interface. Compare flange and bearing geometry, axle offset, center register and wheel hardware with the specified assembly. For a 1990 Lincoln Town Car, identify the actual axle and confirm the specified interface; do not select this conversion from model and year alone.

The supplied EPB switch and pigtail connect through a universal harness to the controller and separate parking-caliper motors. Vehicle-specific power, ground and ignition/accessory wiring still requires installation under DS1353. This static-hold system is independent of the service brakes and is not intended for emergency stopping.

For help checking the installation, contact PMB Performance with the vehicle year and photographs of the existing brakes. Our more than 20 years of parts experience helps identify the details that model names alone cannot settle.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.
