Wilwood Small Ford 2.50-Inch Rear Brake Conversion with Black Dynalite Calipers, Plain 12.19-Inch Rotors and EPB

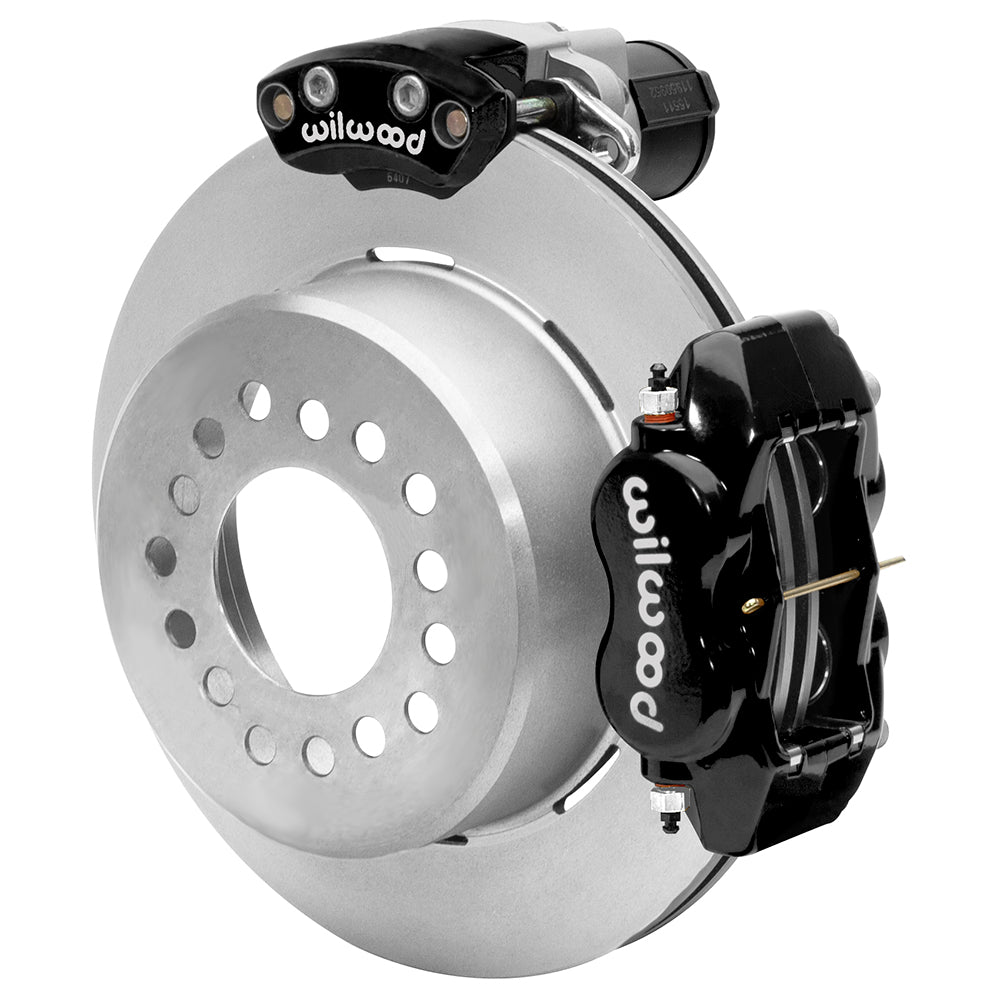

Black four-piston Dynalite calipers operate against plain 12.19-inch rotors in this Small Ford rear conversion. Separate EPB calipers provide parking hold, with the brackets and rotor assemblies designed for a 2.50-inch axle offset. Wilwood Engineering, founded by Bill Wood in 1977, designs and manufactures disc brake systems from Camarillo, California. Its motorsport, street-performance and specialized product range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines. A conversion must be considered as a complete brake system when selecting those parts.

Technical Details

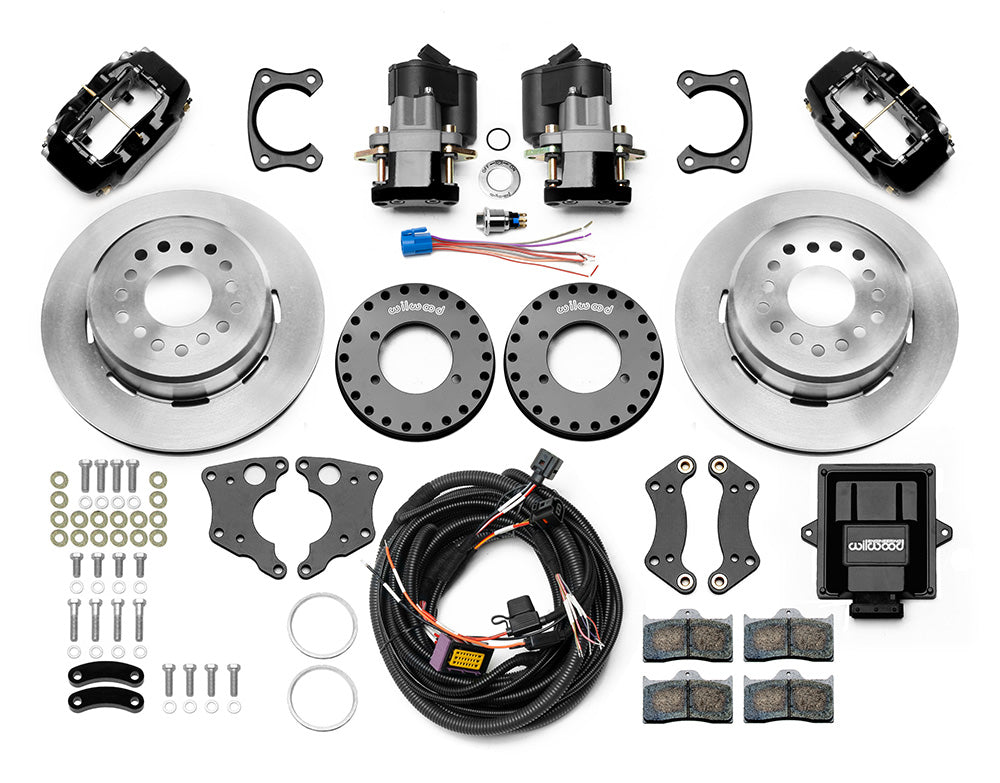

• Manufacturer part number: 140-16150; supplied as one rear axle brake kit.
• Rear axle interface: Small Ford housing flange; 2.50 in; 63.5 mm axle offset. Measure the installed assembly.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Supplied service pads: BP-10 compound; verify suitability for the intended operating conditions.
• Minimum nominal wheel diameter: 15 in; 381 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Hydraulic service calipers: Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; lug mounting; Stainless pistons.
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thick.
• Hydraulic installation: Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Parking-brake package: Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.
• Cataloged rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm bolt circle; cataloged stud-hole clearances 0.52 in; 13.21 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Rotor material and surface: Iron; vented; Plain Face; surface finish Plain.
• Caliper finish and port: Black Powder Coat; hydraulic inlet 1/8-27 NPT.

Fitment & Compatibility

Use only an axle that matches the documented Small Ford flange and 2.50-inch offset. Rear-end names can conceal different bearing flanges, so measure the installed parts. Check the rotor register, studs, axle retention and complete wheel outline rather than relying on the nominal 15-inch wheel size.

Vehicle fitment in the table below remains conditional on axle identity. Measure the housing flange, bearing/retention arrangement, register and offset rather than relying on vehicle year. For a 1990 Lincoln Town Car, identify the actual axle and confirm the specified interface; do not select this conversion from model and year alone.

A separate electric caliper at each rear wheel performs the parking function; it does not replace the hydraulic service circuit. Supplied EPB equipment includes the controller, switch/pigtail and wiring harness. Install the vehicle power, ground and accessory connections using DS1353. Use the system only for parking hold, not emergency stopping.

Before selecting the conversion, PMB Performance can review the listed requirements with you. We have over 20 years of parts experience; include axle measurements and any wheel, hub or suspension changes.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.
