Wilwood GT-Slotted Rear Disc Conversion with Red Superlite 4R Calipers and EPB, 12.88-Inch Rotors, Big Ford 2.36-Inch Axle Offset

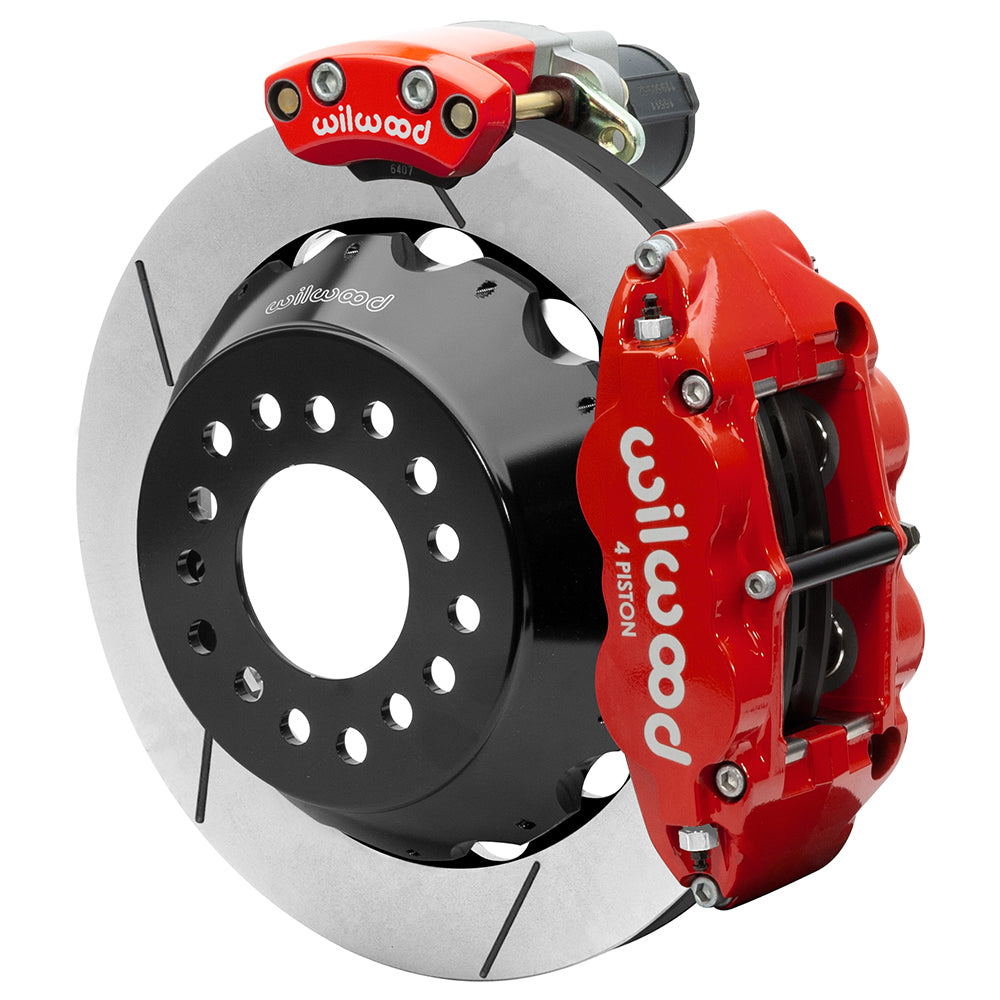

The red-caliper GT configuration combines undrilled slotted rotor rings with separate aluminum mounting hats. Four-piston Superlite service brakes and dedicated electric parking calipers make this a full rear conversion for the specified Big Ford axle interface. Wilwood Engineering began in 1977 under founder Bill Wood and is based in Camarillo, California. It designs and manufactures disc braking equipment for motorsport, specialized applications and street-performance vehicles. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form part of the range and must match the requirements of the complete system.

Technical Details

• Manufacturer part number: 140-16143-R; supplied as one rear axle brake kit.
• Minimum nominal wheel diameter: 17 in; 431.8 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Hydraulic service calipers: Forged Narrow Superlite 4R; 4 pistons per caliper; Forged Aluminium body; radial mounting; Stainless pistons.
• Hydraulic installation: Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Rotor mounting hats: Aluminum; Black E-Coat; hat offset 1.625 inches. This is a hat dimension, not the axle offset.
• Rotor material and surface: Spec-37 Iron; vented; GT Slotted; surface finish Black Electro Coat.
• Supplied service pads: BP-10 compound; verify suitability for the intended operating conditions.

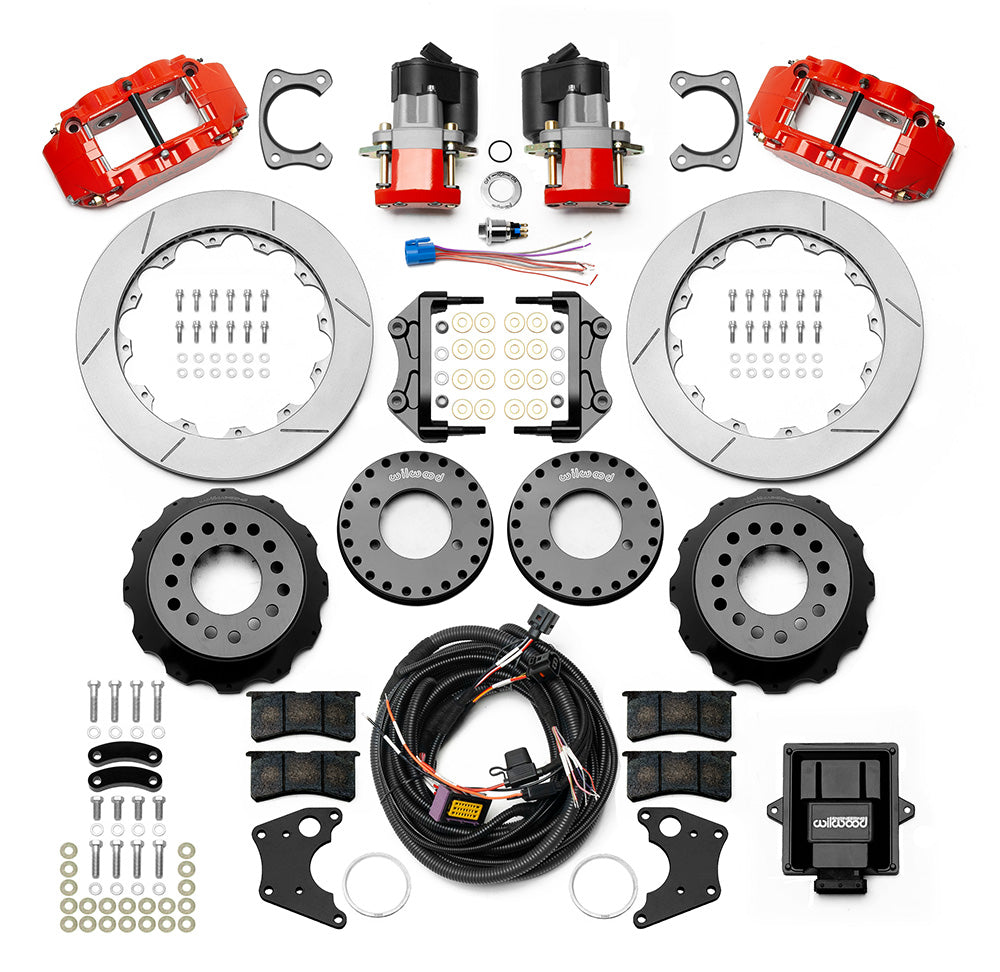

• Parking-brake package: Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.
• Caliper finish and port: Red Powder Coat; hydraulic inlet 1/8-27 NPT.
• Cataloged rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm bolt circle; cataloged stud-hole clearances 0.520 in; 13.21 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Rear axle interface: Big Ford housing flange; 2.36 in; 59.94 mm axle offset. Measure the installed assembly.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Rotor dimensions: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thick.

Fitment & Compatibility

This kit is selected for Big Ford geometry at 2.36 inches of axle offset. Wheel-stud pattern and register dimensions must match the supplied rotors or hats, and the parking motors and harness connectors need clearance throughout suspension travel. Compare the intended 17-inch or larger wheel with the installation drawing.

Any vehicle application in the fitment table below depends on the installed axle interface. Compare flange and bearing geometry, axle offset, center register and wheel hardware with the specified assembly. For a 1990 Lincoln Town Car, identify the actual axle and confirm the specified interface; do not select this conversion from model and year alone.

Two dedicated motorized calipers provide parking hold separately from the hydraulic service calipers. The kit supplies their switch with pigtail, control unit and universal wiring harness. DS1353 covers the required 12V vehicle connections and component placement. The EPB is not an emergency stopping brake.

PMB Performance has more than 20 years of parts experience and can help assess the documented brake configuration. Provide the vehicle details together with clear mounting-area photographs and measurements.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.
