Wilwood Red Rear Superlite 4R Brakes with 12.88-Inch SRP Rotors and EPB, New-Style Big Ford Housing, 2.36-Inch Offset

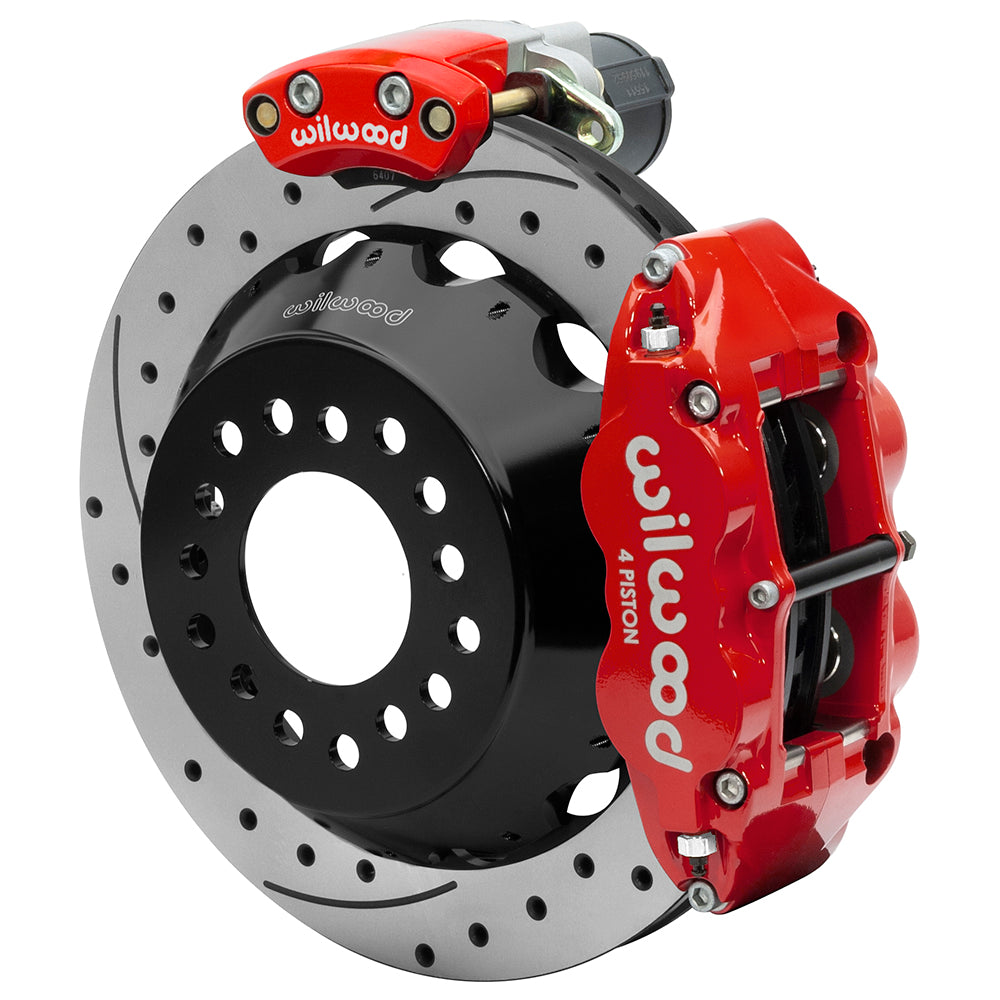

This red Superlite rear conversion combines drilled 12.88-inch rotor rings with aluminum hats and separate motorized parking calipers. Both braking functions are mounted around the new-style Big Ford housing flange using the specified 2.36-inch axle offset. Camarillo, California is home to Wilwood Engineering, the company Bill Wood founded in 1977. Wilwood designs and manufactures disc braking systems and components for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected to work within the complete installation.

Technical Details

• Manufacturer part number — 140-16131-DR; supplied as one rear axle brake kit.
• Mechanical contents — Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Rear axle interface — Big Ford New Style housing flange; 2.36 in; 59.94 mm axle offset. Measure the installed assembly.

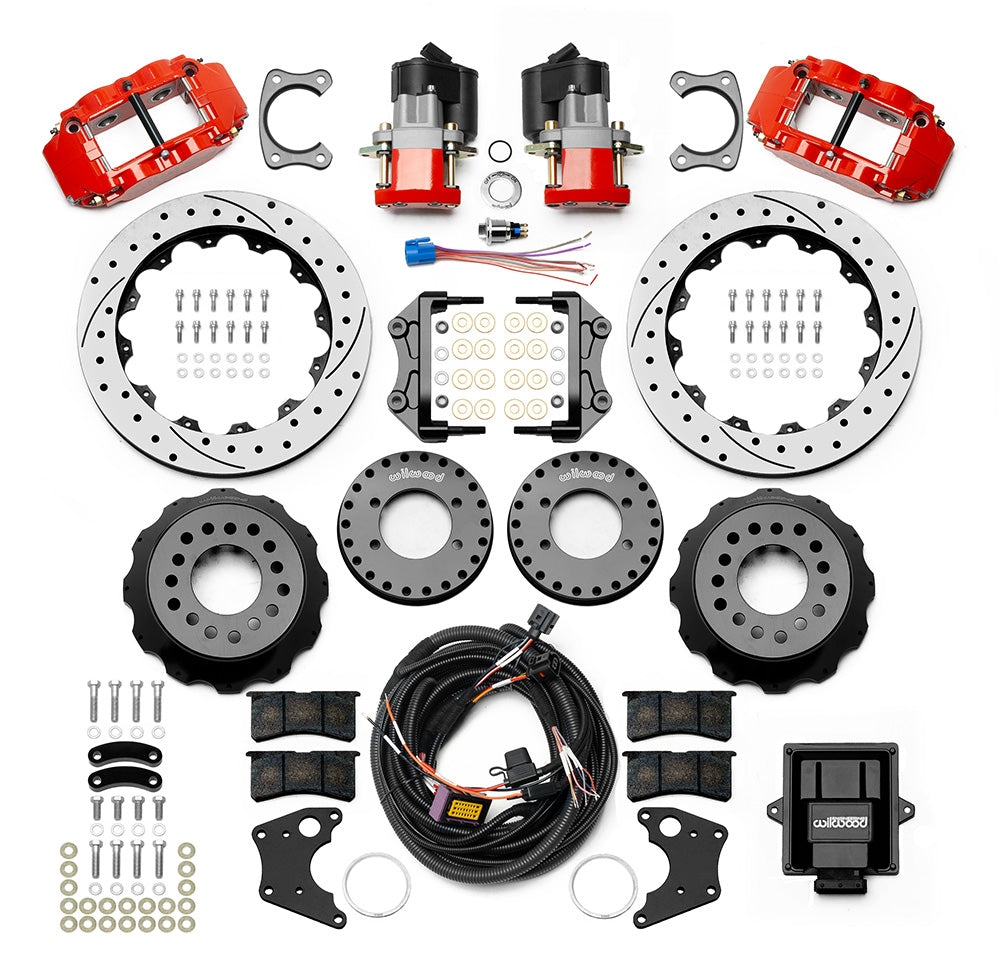

• Parking-brake package — Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.
• Cataloged rotor/hat mounting-hole pattern — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm bolt circle; cataloged stud-hole clearances 0.520 in; 13.21 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Caliper finish and port — Red Powder Coat; hydraulic inlet 1/8-27 NPT.
• Rotor dimensions — 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thick.
• Rotor material and surface — Spec-37 Iron; vented; SRP Drilled & Slotted; surface finish Black Electro Coat.
• Rotor mounting hats — Aluminum; Black E-Coat; hat offset 1.625 inches. This is a hat dimension, not the axle offset.
• Hydraulic service calipers — Forged Narrow Superlite 4R; 4 pistons per caliper; Forged Aluminium body; radial mounting; Stainless pistons.
• Minimum nominal wheel diameter — 17 in; 431.8 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Hydraulic installation — Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Supplied service pads — BP-10 compound; verify suitability for the intended operating conditions.

Fitment & Compatibility

Match the actual rear axle to the Big Ford New Style diagram and 2.36-inch offset before disassembly. Verify the bearing arrangement, axle register and wheel-bolt pattern independently, including any changes made during a previous axle conversion. Use the full 17-inch minimum wheel envelope for both caliper positions.

Vehicle fitment in the table below remains conditional on axle identity. Measure the housing flange, bearing/retention arrangement, register and offset rather than relying on vehicle year. For a 1990 Lincoln Town Car, identify the actual axle and confirm the specified interface; do not select this conversion from model and year alone.

Parking actuation is electric through a supplied controller, switch with pigtail, universal harness and two motor-driven calipers. The installer must provide suitable vehicle power/ground and ignition/accessory connections and check lead routing to DS1353. These additional calipers are for parking hold, not an emergency stop function.

For help checking the installation, contact PMB Performance with the vehicle year and photographs of the existing brakes. Our more than 20 years of parts experience helps identify the details that model names alone cannot settle.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.
