Wilwood Rear Electronic Parking Brake and Drilled Dynalite Kit, Black Calipers, Big Ford New-Style Flange, 12.19-Inch Rotors and 2.36-Inch Offset

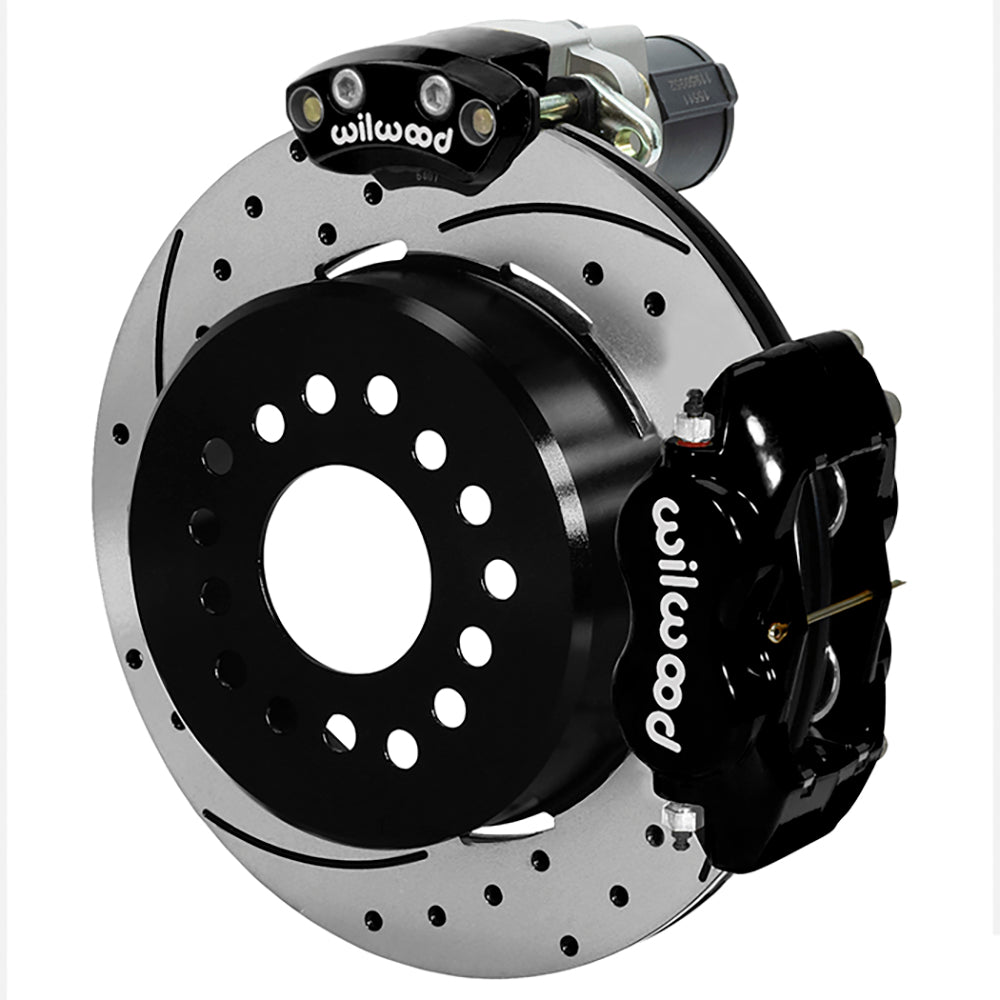

This black Dynalite conversion replaces the rear drum arrangement on an appropriately measured axle with drilled-and-slotted rotors. Separate electric parking calipers and the supplied controller eliminate the need for mechanical parking-brake cables. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering manufactures and designs disc brake systems and components. The range serves motorsport, street-performance and specialized applications with calipers, brake rotors, master cylinders, valves, fittings and brake lines. Matching individual components requires considering the full brake assembly.

Technical Details

• Manufacturer part number: 140-16130-D; supplied as one rear axle brake kit.
• Hydraulic installation: Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Rotor dimensions: 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thick.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.

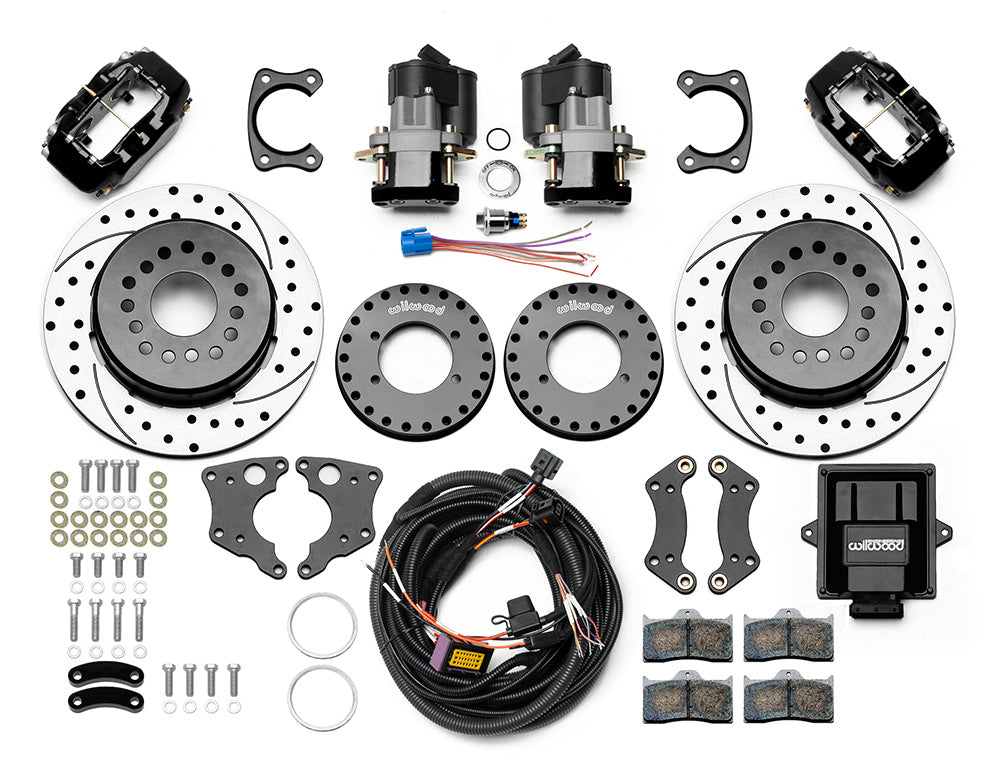

• Parking-brake package: Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.
• Rotor material and surface: Iron; vented; SRP Drilled & Slotted; surface finish Black Electro Coat.
• Hydraulic service calipers: Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; lug mounting; Stainless pistons.
• Caliper finish and port: Black Powder Coat; hydraulic inlet 1/8-27 NPT.
• Rear axle interface: Big Ford New Style housing flange; 2.36 in; 59.94 mm axle offset. Measure the installed assembly.
• Minimum nominal wheel diameter: 15 in; 381 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Cataloged rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm bolt circle; cataloged stud-hole clearances 0.52 in; 13.21 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Supplied service pads: BP-10 compound; verify suitability for the intended operating conditions.

Fitment & Compatibility

Installation requires the Big Ford New Style housing flange and a measured 2.36-inch axle offset. Compare the housing bolt pattern, bearing/axle retention, wheel pattern and center registration with the kit drawing, then check both service-caliper and EPB-motor clearance. Nominal 15-inch wheel diameter is only the starting point.

The fitment table below is subject to physical axle-interface confirmation. Check housing flange, bearing arrangement, offset, wheel-stud pattern and center register before ordering. For a 1990 Lincoln Town Car, identify the actual axle and confirm the specified interface; do not select this conversion from model and year alone.

Service braking remains hydraulic; the additional electric calipers are for static parking hold and must not be used as an emergency stop brake. The switch/pigtail, controller and universal EPB harness are supplied. Plan the vehicle’s 12V power, ground and ignition/accessory wiring and protect all motor leads according to DS1353.

With more than 20 years in parts, PMB Performance can help review the compatibility checks for this conversion. Include information about the axle, retained hubs and any changes from the original suspension.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.
