Wilwood Red Dynalite Rear Brakes with Drilled Rotors and Electric Parking Brake, Big Ford New-Style Bronco Axle, 2.36-Inch Offset

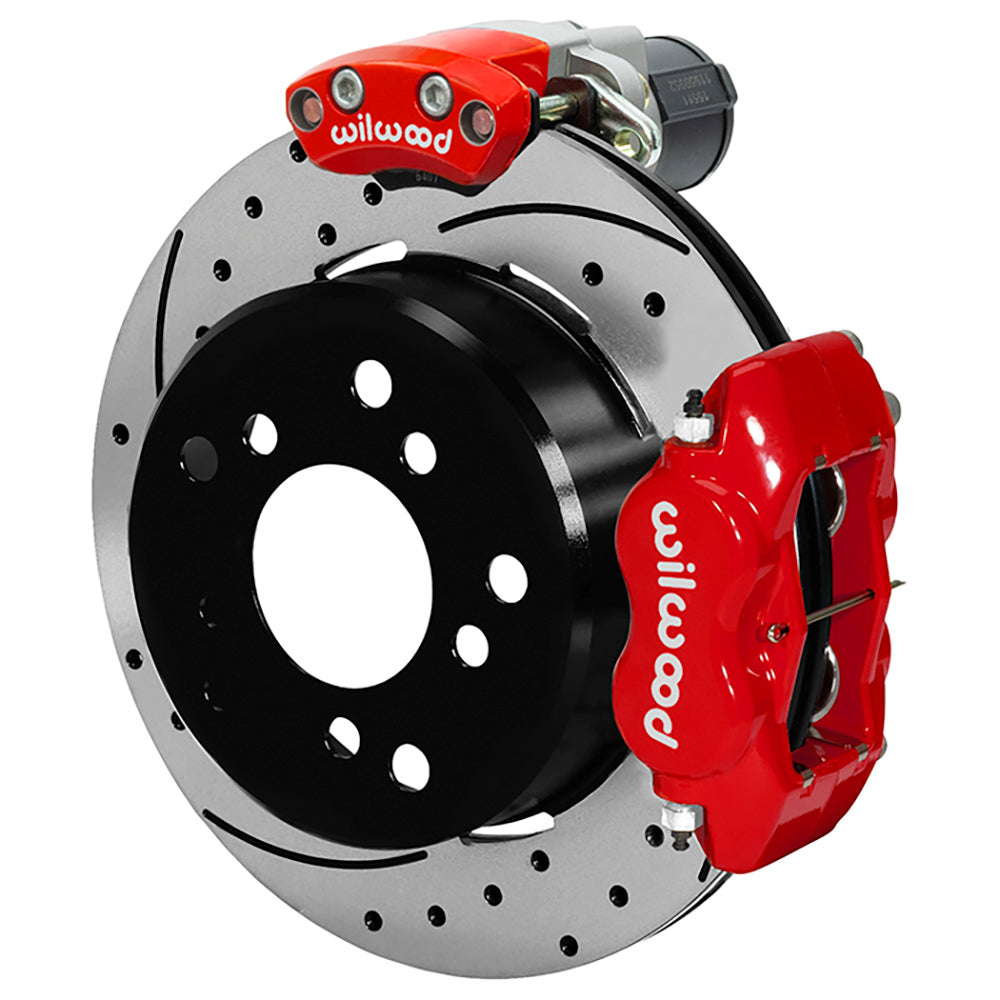

Red hydraulic calipers and matching electric parking calipers share the drilled 12.19-inch rotor assembly in this rear conversion. The kit includes the parking-brake controller and harness, while axle fit depends on the new-style Big Ford Bronco mounting geometry. Camarillo, California is home to Wilwood Engineering, the company Bill Wood founded in 1977. Wilwood designs and manufactures disc braking systems and components for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected to work within the complete installation.

Technical Details

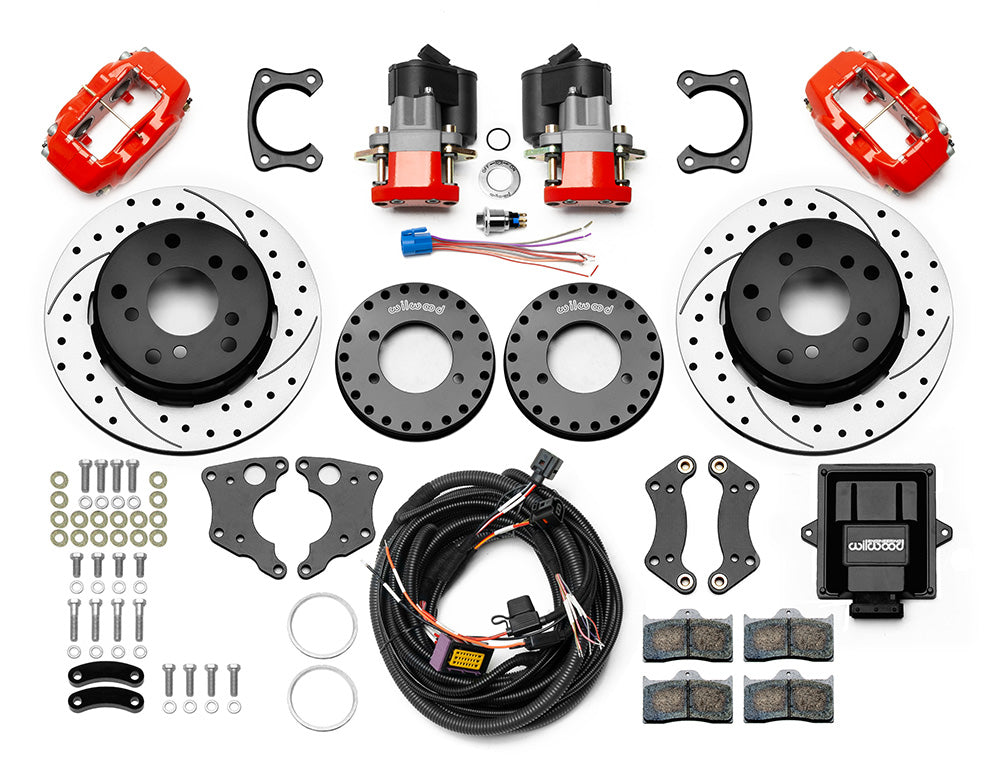

• Manufacturer part number — 140-16126-DR; supplied as one rear axle brake kit.
• Hydraulic service calipers — Forged Dynalite Internal; 4 pistons per caliper; Forged Aluminium body; lug mounting; Stainless pistons.
• Rotor material and surface — Iron; vented; SRP Drilled & Slotted; surface finish Black Electro Coat.
• Parking-brake package — Two separate electric parking calipers, control unit, switch with pigtail and universal wiring harness included; vehicle electrical connections require installation.
• Rotor dimensions — 12.19 in; 309.63 mm outside diameter; 0.81 in; 20.57 mm thick.
• Rear axle interface — Big Ford New Style Bronco housing flange; 2.36 in; 59.94 mm axle offset. Measure the installed assembly.
• Mechanical contents — Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Hydraulic installation — Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.
• Supplied service pads — BP-10 compound; verify suitability for the intended operating conditions.
• Minimum nominal wheel diameter — 15 in; 381 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Caliper finish and port — Red Powder Coat; hydraulic inlet 1/8-27 NPT.
• Cataloged rotor/hat mounting-hole pattern — 5 x 4.5 in; 5 x 114.3 mm; 5 x 5.5 in; 5 x 139.7 mm bolt circle; cataloged stud-hole clearances 0.56 in; 14.22 mm; 0.64 in; 16.26 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.

Fitment & Compatibility

Match the actual rear axle to the Big Ford New Style Bronco diagram and 2.36-inch offset before disassembly. Verify the bearing arrangement, axle register and wheel-bolt pattern independently, including any changes made during a previous axle conversion. Use the full 15-inch minimum wheel envelope for both caliper positions. DS1434 identifies the 1974–1975 Ford Bronco medium-duty axle with the 10 x 2.5-inch drum arrangement; the same measured interface remains essential.

Vehicle fitment in the table below remains conditional on axle identity. Measure the housing flange, bearing/retention arrangement, register and offset rather than relying on vehicle year. For a 1990 Lincoln Town Car, identify the actual axle and confirm the specified interface; do not select this conversion from model and year alone.

A separate electric caliper at each rear wheel performs the parking function; it does not replace the hydraulic service circuit. Supplied EPB equipment includes the controller, switch/pigtail and wiring harness. Install the vehicle power, ground and accessory connections using DS1353. Use the system only for parking hold, not emergency stopping.

With over 20 years of parts experience, PMB Performance can help check the brake arrangement before ordering. Send the vehicle year, axle photographs and relevant hub or suspension changes.

Review the Installation instructions, Technical bulletin, EPB mounting and wiring instructions before selecting hardware or checking wheel clearance.
