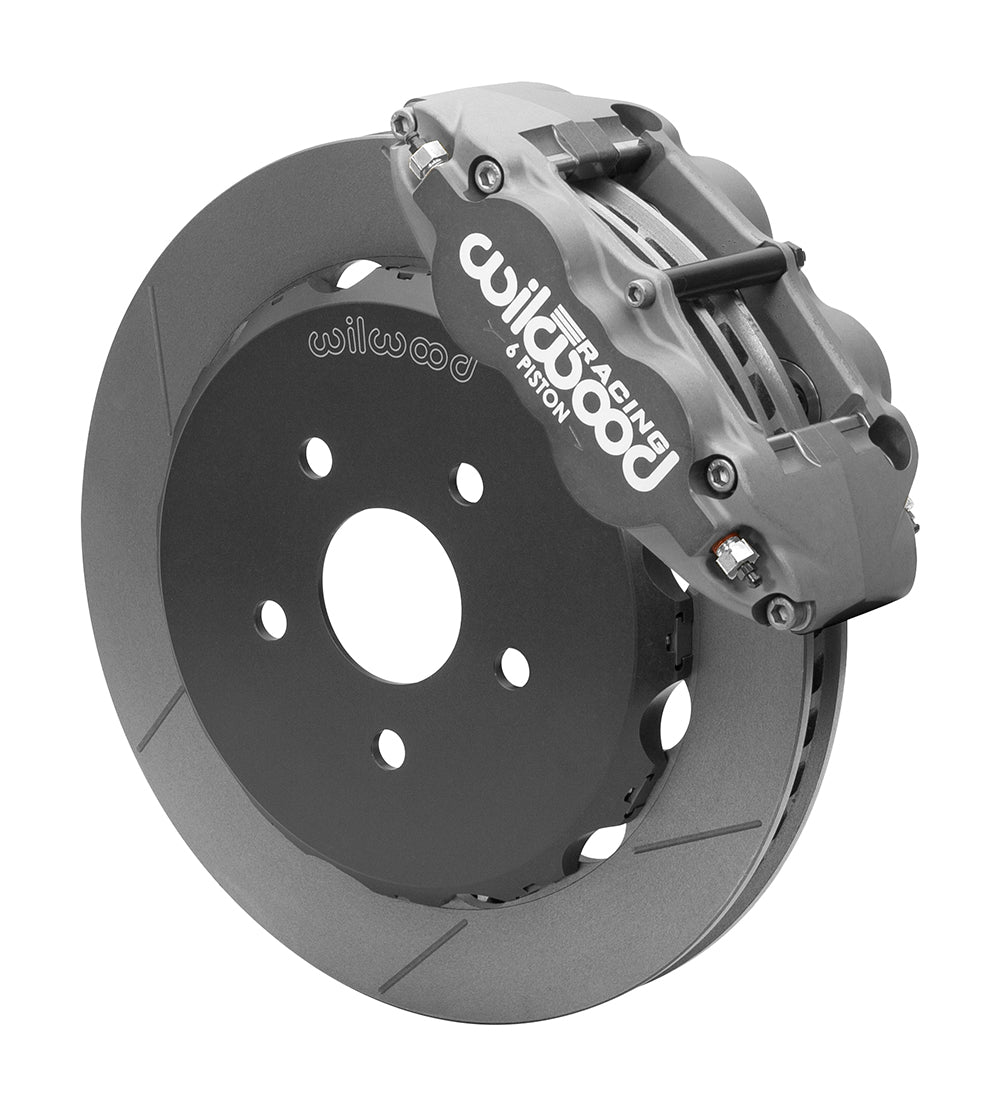

Wilwood Superlite 6R/ST Front Road Race Brake Kit for Honda Civic (2006–2015) and CR-Z (2011–2015), 12.88-Inch GT Rotors

This front Superlite 6R/ST package replaces the documented Honda brake assembly with hard-anodized six-piston calipers and 12.88-inch GT rotors. It is a high-temperature road-race conversion; the vehicle-specific braided flexline kit must be ordered separately. Wilwood Engineering, founded by Bill Wood in 1977, designs and manufactures disc brake systems from Camarillo, California. Its motorsport, street-performance and specialized product range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines. A conversion must be considered as a complete brake system when selecting those parts.

Technical Details

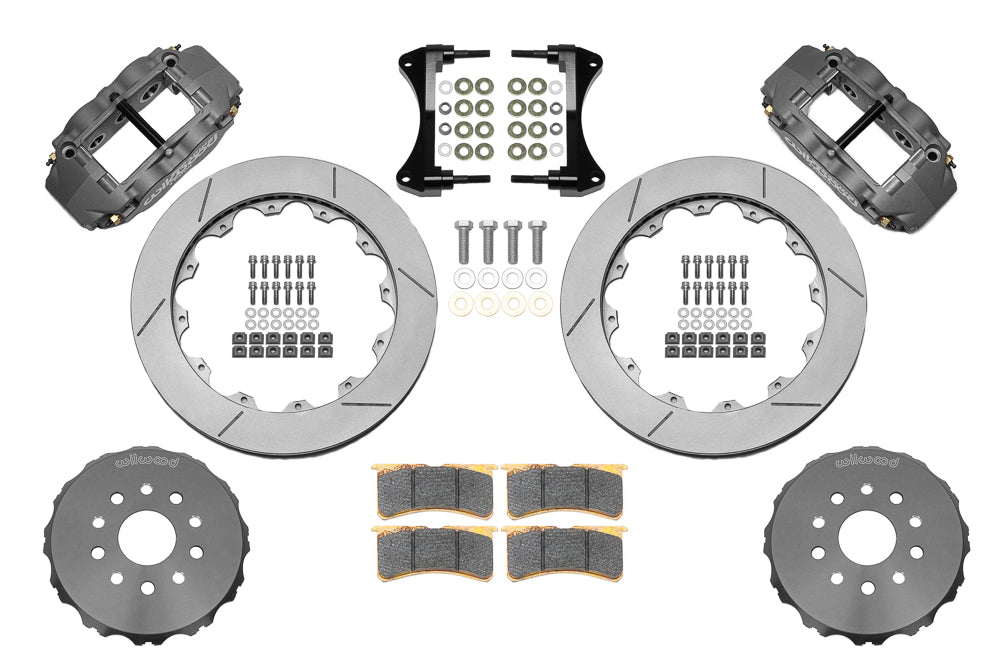

• Manufacturer part number: 140-16092; supplied as one front axle brake kit.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Hydraulic service calipers: Forged Narrow Superlite 6R; 6 pistons per caliper; Forged Aluminium body; radial mounting; Thermlock pistons.
• Minimum nominal wheel diameter: 17 in; 431.8 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Cataloged rotor/hat mounting-hole pattern: 5 x 4.5 in; 5 x 114.3 mm bolt circle; cataloged stud-hole clearances 0.580 in; 14.73 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Rotor mounting hats: Aluminum; Type III Anodize; hat offset 0.540 inches. This is a hat dimension, not the axle offset.
• Supplied service pads: BP-35 compound; verify suitability for the intended operating conditions.
• Rotor material and surface: Spec-37 Iron; vented; GT Slotted; surface finish Plain.
• Rotor dimensions: 12.88 in; 327.15 mm outside diameter; 1.10 in; 27.94 mm thick.
• Caliper finish and port: Type III Anodize; hydraulic inlet 1/8-27 NPT.
• Hydraulic installation: Hydraulic lines and fittings are separate and must be selected for the vehicle; master cylinder not included; brake booster not included.

Fitment & Compatibility

Review all Civic (2006–2015) and CR-Z (2011–2015) trim entries and confirm the original 54 mm front-caliper configuration. DS1394 shows CR-Z hose-bracket drilling and the later Civic Si factory line/ABS bracket arrangement. Hose references are 220-11980 for 2006–2011 Civic and 220-12016 for the documented CR-Z and later Civic applications. Check 17-inch wheel clearance. BP-35 race pads can wear rotors and pads rapidly during extended low-temperature use.

Use the fitment table below to confirm each model, year, trim and brake-package condition. The stated span does not override an individual application note.

PMB Performance brings more than 20 years of parts experience to fitment questions. Share the vehicle details and the installed axle, spindle and wheel measurements so we can help review the conversion.

Review the Installation instructions before selecting hardware or checking wheel clearance.
