Wilwood Rear AERO4-DS Brake Kit with Black Calipers and 14.50-Inch GT Rotors for Toyota Land Cruiser J200 and Lexus LX570 (2016–2018)

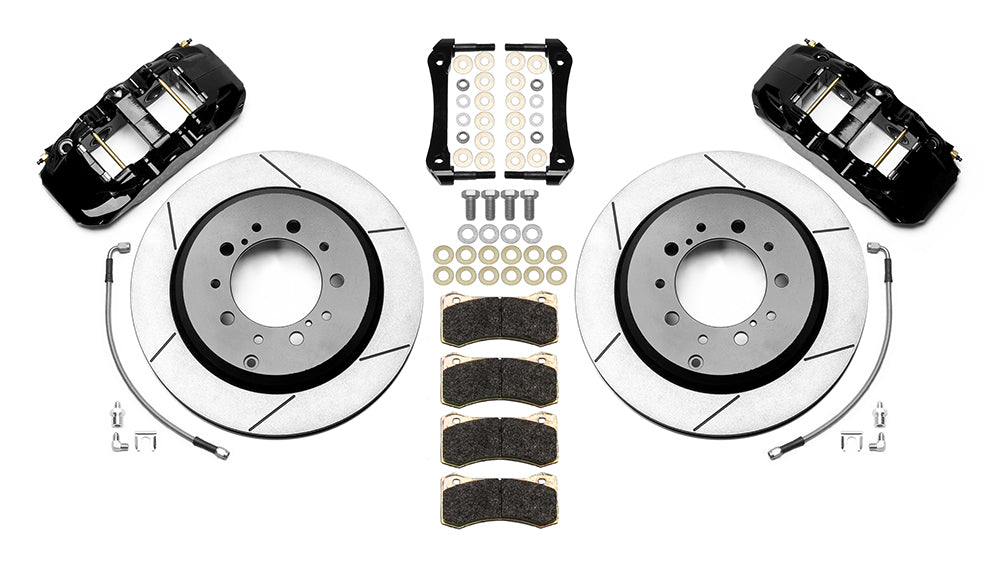

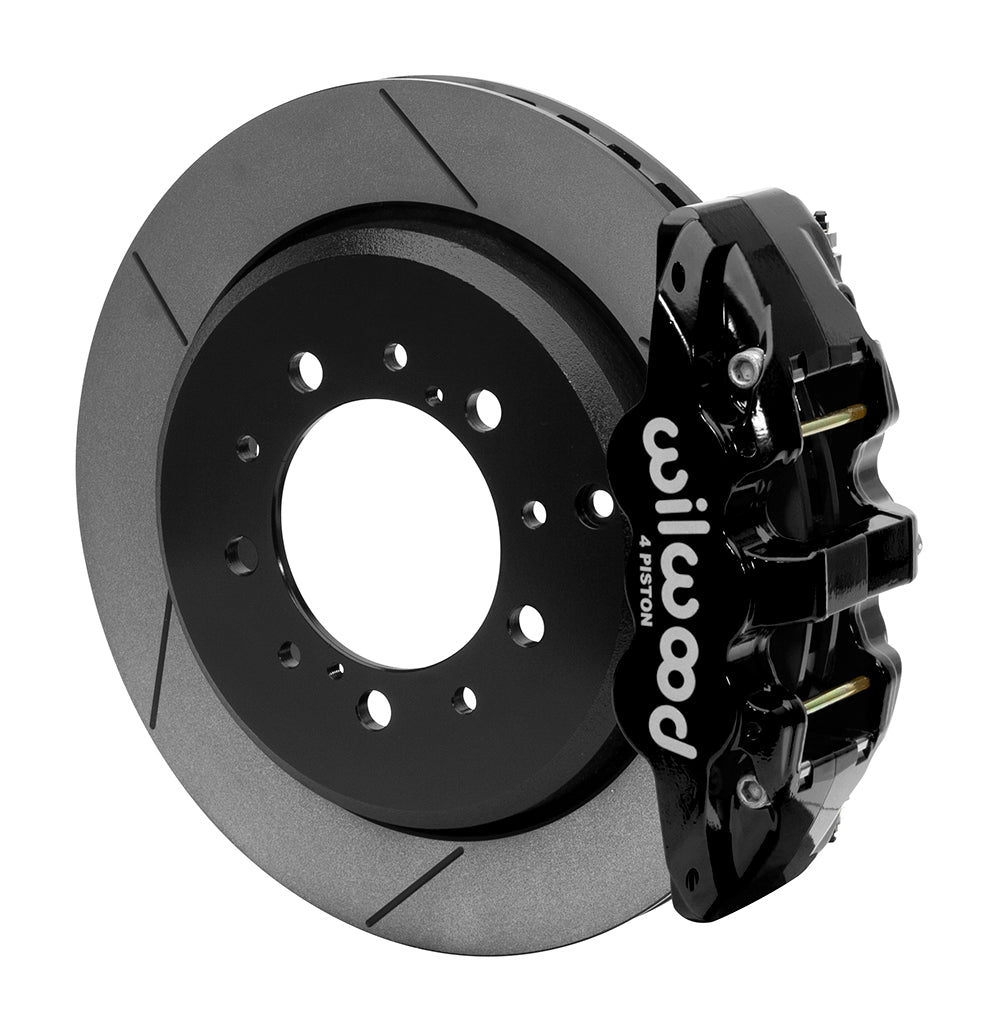

This rear Toyota/Lexus service-brake conversion uses black AERO4-DS four-piston calipers with dust-wiper seals and 14.50-inch GT-slotted iron rotor/hat assemblies. It retains the OE parking-brake mechanism and supplies BP-20 pads and braided flexlines. Camarillo, California is home to Wilwood Engineering, the company Bill Wood founded in 1977. Wilwood designs and manufactures disc braking systems and components for street-performance, motorsport and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected to work within the complete installation.

Technical Details

• Manufacturer part number: 140-16047; supplied as one rear axle brake kit.
• Rotor material and surface: Iron; vented; GT Slotted; surface finish Black Electro Coat.
• Flexline reference: Rear Line Kit: 220-15889.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Hydraulic installation: Braided flexlines are included; master cylinder not included; brake booster not included.
• Cataloged rotor/hat mounting-hole pattern: 5 X 5.91 in; 5 X 150.11 mm bolt circle; cataloged stud-hole clearances 0.64 in; 16.26 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Minimum nominal wheel diameter: 18 in; 457.2 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Hydraulic service calipers: AERO4-DS; 4 pistons per caliper; Forged Aluminium body; radial mounting; Stainless pistons.
• Rotor dimensions: 14.50 in; 368.3 mm outside diameter; 1.10 in; 27.94 mm thick.
• Supplied service pads: BP-20 compound; verify suitability for the intended operating conditions.
• Caliper finish and port: Black Powder Coat; hydraulic inlet 1/8-27 NPT.

Fitment & Compatibility

The supported vehicle group is Toyota Land Cruiser J200 and Lexus LX570, 2016–2018. DS1379 requires modification of the rear backing plate/dust shield and upright caliper-mounting tabs, preferably by a qualified machine shop. Check the retained parking shoes, five-lug hub registration and 18-inch wheel outline before disassembly.

Use the fitment table below to confirm each model, year, trim and brake-package condition. The stated span does not override an individual application note.

With over 20 years of parts experience, PMB Performance can help check the brake arrangement before ordering. Send the vehicle year, axle photographs and relevant hub or suspension changes.

Review the Installation instructions before selecting hardware or checking wheel clearance.
