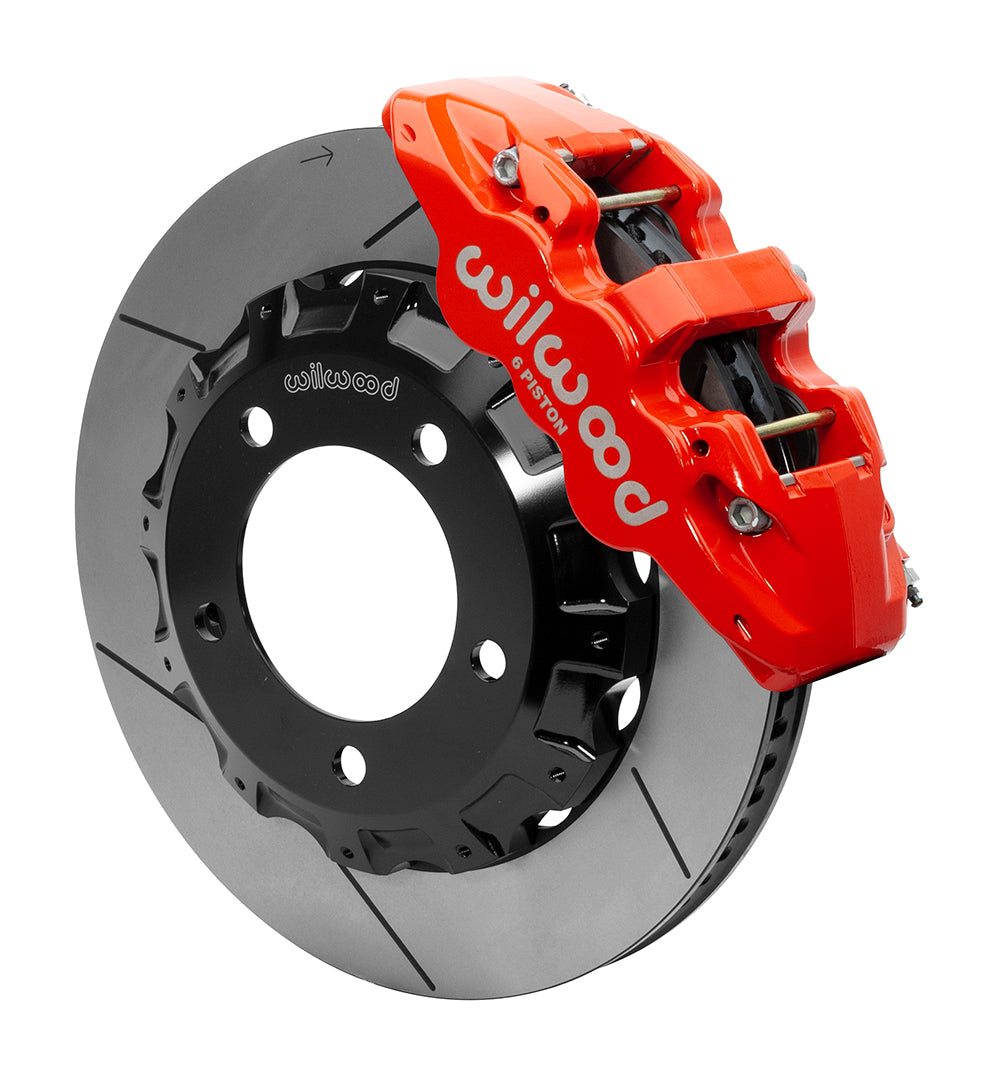

Wilwood Front Six-Piston AERO6-DS Brake Conversion for Lexus LX570 and Toyota Land Cruiser J200 (2016–2018), Red with 14.25-Inch Rotors

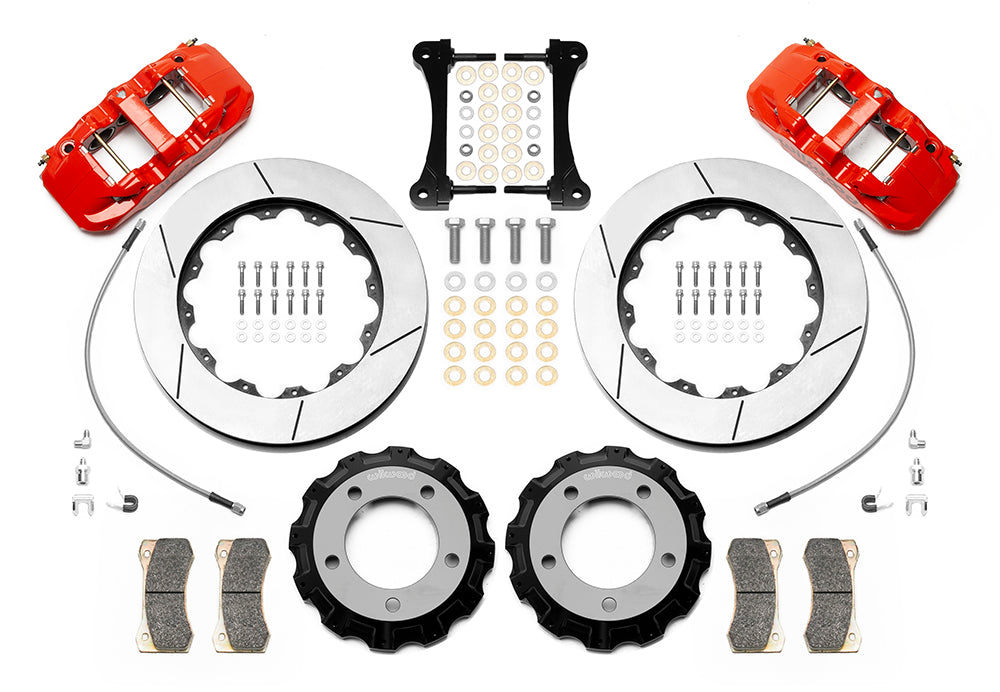

Red AERO6-DS service calipers pair with directional-vane 14.25-inch rotors in this Toyota and Lexus front conversion. Dust-wiper seals protect the piston area, and the two-piece rotor assemblies use separate aluminum hats. The kit supplies BP-20 pads, brackets and stainless braided flexlines. Wilwood Engineering, founded by Bill Wood in 1977, designs and manufactures disc brake systems from Camarillo, California. Its motorsport, street-performance and specialized product range spans calipers, brake rotors, master cylinders, valves, fittings and brake lines. A conversion must be considered as a complete brake system when selecting those parts.

Technical Details

• Manufacturer part number: 140-16046-R; supplied as one front axle brake kit.
• Hydraulic service calipers: AERO6-DS; 6 pistons per caliper; Forged Aluminium body; radial mounting; Stainless pistons.
• Rotor dimensions: 14.25 in; 361.95 mm outside diameter; 1.25 in; 31.75 mm thick.
• Flexline reference: Front Line Kit: 220-15888.
• Caliper finish and port: Red Powder Coat; hydraulic inlet 1/8-27 NPT.
• Supplied service pads: BP-20 compound; verify suitability for the intended operating conditions.
• Minimum nominal wheel diameter: 18 in; 457.2 mm; full spoke/barrel clearance must be checked using the installation drawing.
• Cataloged rotor/hat mounting-hole pattern: 5 x 5.91 in; 5 x 150.11 mm bolt circle; cataloged stud-hole clearances 0.640 in; 16.26 mm. The existing hub or axle flange determines the vehicle wheel pattern and stud specification. These rotor/hat drillings do not convert that pattern.
• Rotor material and surface: Spec-37 Iron; vented; GT Slotted; surface finish Black Electro Coat.
• Hydraulic installation: Braided flexlines are included; master cylinder not included; brake booster not included.
• Mechanical contents: Separate wheel hubs are not included; mounting hardware supplied; spindles not included.
• Rotor mounting hats: Aluminum; Black E-Coat; hat offset 1.240 inches. This is a hat dimension, not the axle offset.

Fitment & Compatibility

Use only the documented 2016–2018 Lexus LX570 and Toyota Land Cruiser J200 arrangement. The bracket installation requires controlled upright grinding as shown in DS1378, not an assumption of untouched-spindle fit. Verify the five-lug hat registration, 5 x 5.91-inch pattern and spoke clearance using the 18-inch minimum wheel drawing.

Use the fitment table below to confirm each model, year, trim and brake-package condition. The stated span does not override an individual application note.

With more than 20 years in parts, PMB Performance can help review the compatibility checks for this conversion. Include information about the axle, retained hubs and any changes from the original suspension.

Review the Installation instructions before selecting hardware or checking wheel clearance.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
