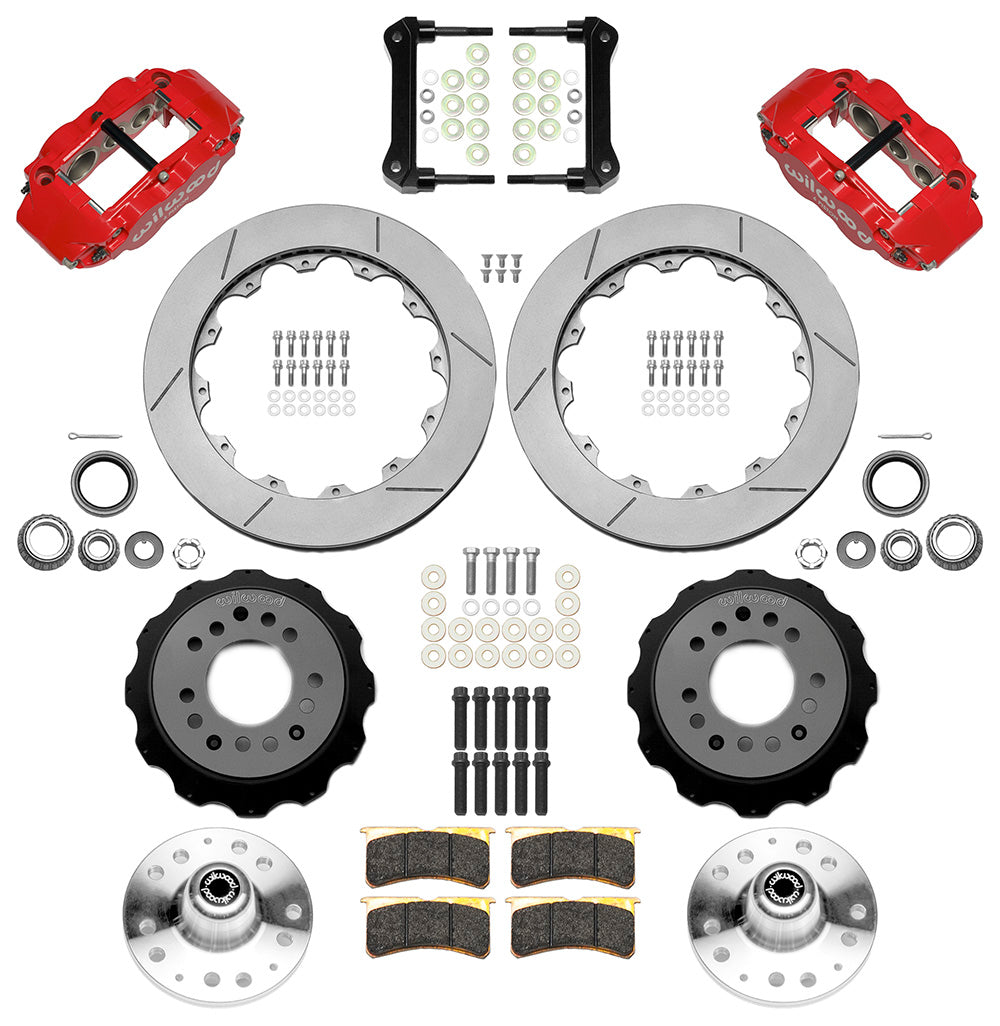

Wilwood Superlite 6R front brake kit, GM second-generation AFX ProSpindles, 12.88-inch GT rotors: Parts layout with two red Superlite 6R calipers, gt slotted rotors, separate hubs, black rotor hats, pads, bearings and mounting hardware.

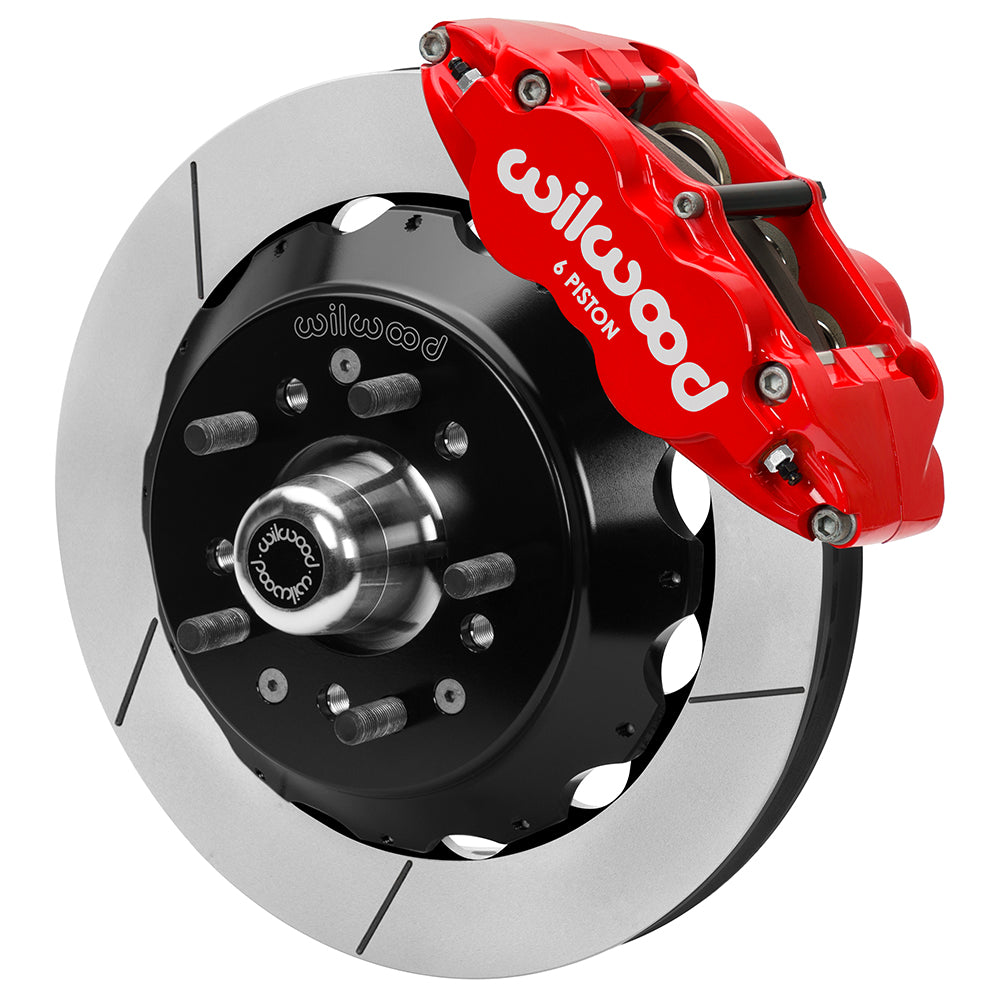

Wilwood Superlite 6R front brake kit, GM second-generation AFX ProSpindles, 12.88-inch GT rotors: Assembled brake view with red Superlite 6R caliper, gt slotted rotor, black hat/adapter and projecting hub with wheel studs.
Wilwood Superlite 6R front brake kit, GM second-generation AFX ProSpindles, 12.88-inch GT rotors: Parts layout with two red Superlite 6R calipers, gt slotted rotors, separate hubs, black rotor hats, pads, bearings and mounting hardware.
Wilwood Superlite 6R front brake kit, GM second-generation AFX ProSpindles, 12.88-inch GT rotors: Assembled brake view with red Superlite 6R caliper, gt slotted rotor, black hat/adapter and projecting hub with wheel studs.

Wilwood Red Superlite Front Brake System, 12.88-Inch GT Slotted Rotors and Hubs for Listed GM Second-Generation AFX ProSpindles (Listed 1970–1990 Applications)

SKU: 140-15982-R

$2,354.40 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The red/GT second-generation AFX package includes Superlite 6R front calipers, 12.88-inch slotted Spec-37 rotors and aluminum hubs. Separate hats and BP-20 pads complete the rotating and friction assemblies. Fitment depends on the documented Wilwood ProSpindle rather than the original spindle or a generic drop spindle. Confirm wheel clearance and assess the complete front/rear hydraulic combination before installation. From Camarillo, California, Wilwood Engineering develops disc-brake systems for street-performance, motorsport and specialized uses. Bill Wood founded the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form part of its range, and must be combined to match the demands of the complete brake system.

Technical Details

  • Manufacturer part number: 140-15982-R. Quantity: one kit for the stated axle/application.
  • Brake hoses are not included. Manufacturer line-kit reference(s), sold separately: 220-10509.
  • Service caliper: Forged Narrow Superlite 6R; 6 pistons; stainless piston material. Radial mounting, red powder coat finish.
  • Published piston bores: 1.62, 1.12, 1.12 inches. Supplied pad compound: BP-20.
  • Caliper hydraulic inlet: 1/8-27 NPT.
  • Rotor specification: 12.88-inch outside diameter × 1.10-inch thickness; GT slotted faces. Spec-37 Iron construction; GT 48 Curved Vane design; published vane configuration: 48 CV.
  • Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 1.500 inch.
  • Supplied hub assembly: Hub - Hat Mount, aluminum, bare finish.
  • Wheel mounting patterns: 5 x 4.50; 5 x 4.75 inches.
  • Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.
  • Minimum nominal wheel diameter: 17 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.

Fitment & Compatibility

Use this kit on the listed GM applications equipped with Wilwood second-generation AFX ProSpindles. Do not assume that original spindles or the earlier AFX spindle are interchangeable. Match the model, production year and spindle option in the application table, then verify the installed spindle, hub bolt circle, full wheel seating and actual spoke/barrel clearance. Match the front caliper volume and pad compound to the master cylinder and rear brakes, and supply suitable braided flexlines separately. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

Use PMB Performance’s 20+ years of parts and fitment experience when checking a modified brake layout. The installed mounting hardware and measured wheel space are more useful than model and year alone.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1970-1981 Chevrolet Camaro Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1970-1981 Pontiac Firebird Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Buick Century Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Buick Regal Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973 Chevrolet Chevelle Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet El Camino Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet Malibu Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet Monte Carlo Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 GMC Sprint Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Oldsmobile Cutlass Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Oldsmobile Cutlass Supreme Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1975 Oldsmobile Vista Cruiser Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1975 Pontiac Grand Am Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Pontiac Grand Prix Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973 Pontiac GTO Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Pontiac LeMans Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975 Buick Apollo Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Buick Skylark Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Chevrolet Nova Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Oldsmobile Omega Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1977 Pontiac Ventura Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1976 Cadillac Seville Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1983 Buick Estate Wagon Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Buick LeSabre Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Chevrolet Impala Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Oldsmobile Custom Cruiser Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Oldsmobile Delta 88 Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1981 Pontiac Bonneville Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1981 Pontiac Catalina Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1979 Pontiac Phoenix Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1979-1990 Chevrolet Caprice Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1980-1986 Pontiac Parisienne Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1984-1985 Buick Estate Wagon Estate Wagon Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
