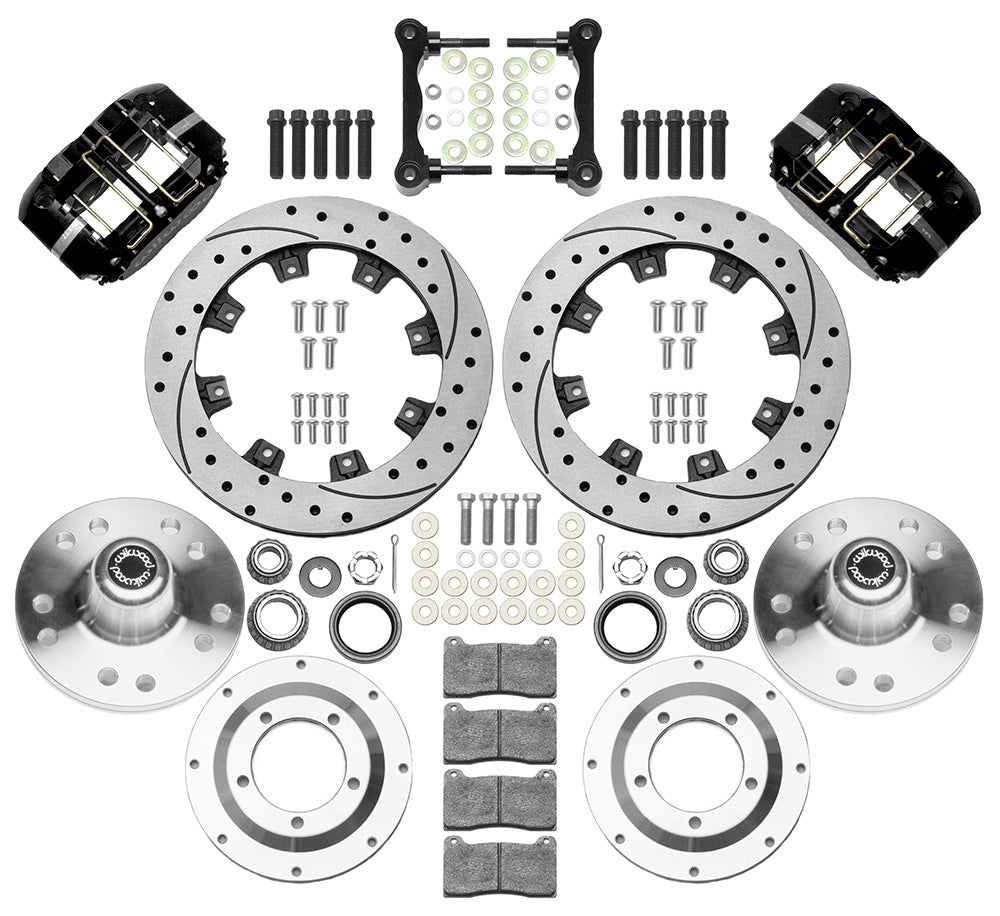

Wilwood Dynapro Radial front brake kit, GM second-generation AFX ProSpindles, 11.75-inch SRP rotors: Parts layout with two black Dynapro Radial calipers, drilled & slotted rotors, separate hubs, rotor adapters, pads, bearings and mounting hardware.

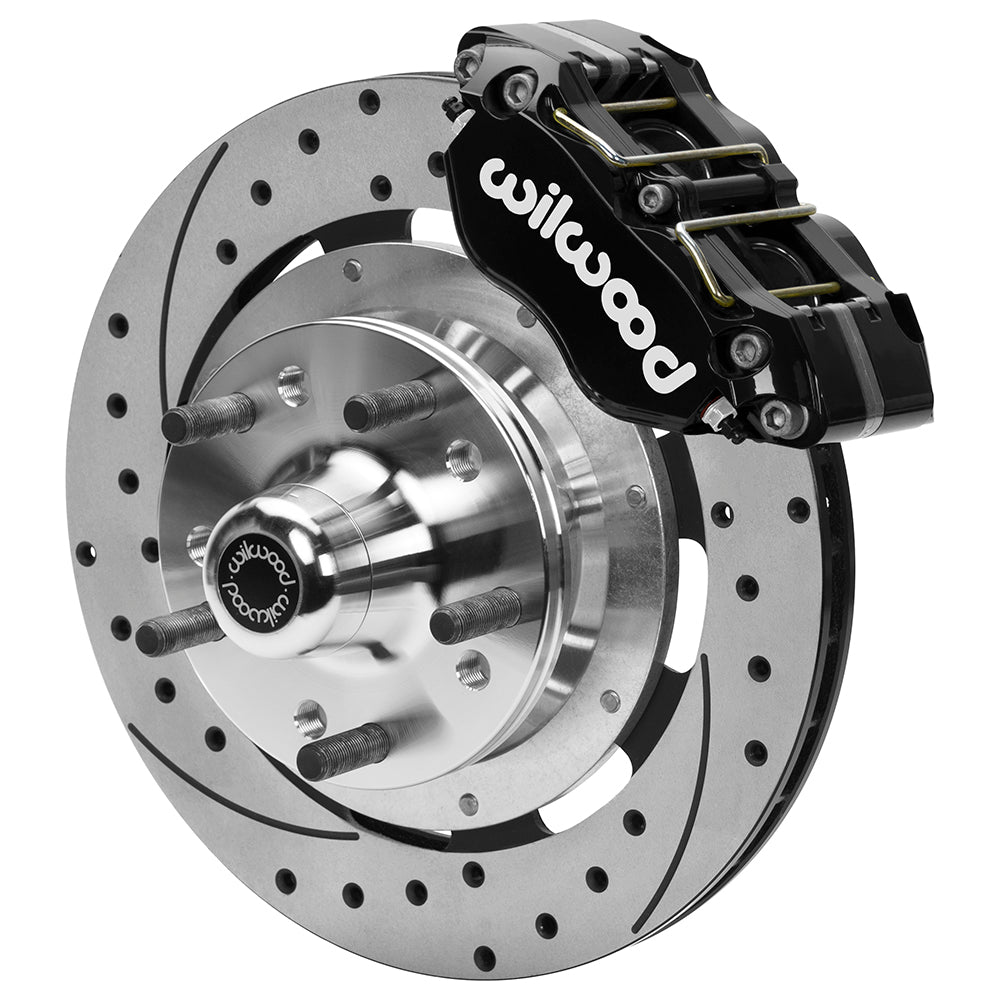

Wilwood Dynapro Radial front brake kit, GM second-generation AFX ProSpindles, 11.75-inch SRP rotors: Assembled brake view with black Dynapro Radial caliper, drilled & slotted rotor, silver hat/adapter and projecting hub with wheel studs.
Wilwood Dynapro Radial front brake kit, GM second-generation AFX ProSpindles, 11.75-inch SRP rotors: Parts layout with two black Dynapro Radial calipers, drilled & slotted rotors, separate hubs, rotor adapters, pads, bearings and mounting hardware.
Wilwood Dynapro Radial front brake kit, GM second-generation AFX ProSpindles, 11.75-inch SRP rotors: Assembled brake view with black Dynapro Radial caliper, drilled & slotted rotor, silver hat/adapter and projecting hub with wheel studs.

Wilwood Black Dynapro Front Conversion with 11.75-Inch SRP Rotors and Hubs, Listed GM Second-Generation AFX ProSpindle Fitment (Listed 1970–1990 Applications)

SKU: 140-15981-D

$1,402.69 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black four-piston Dynapro calipers and drilled/slotted 11.75-inch rotors identify this second-generation AFX hub conversion. Separate aluminum hubs and adapters are supplied with BP-10 pads. The kit must match the Wilwood spindle generation shown in the application notes, rather than being selected only by a GM model name. Full wheel seating and clearance around the radial caliper are required installation checks. From Camarillo, California, Wilwood Engineering develops disc-brake systems for street-performance, motorsport and specialized uses. Bill Wood founded the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form part of its range, and must be combined to match the demands of the complete brake system.

Technical Details

  • Manufacturer part number: 140-15981-D. Quantity: one kit for the stated axle/application.
  • Service caliper: Dynapro Radial Mount; 4 pistons; stainless piston material. Radial mounting, black powder coat finish.
  • Published piston bores: 1.75, 1.75 inches. Supplied pad compound: BP-10.
  • Caliper hydraulic inlet: 1/8-27 NPT.
  • Rotor specification: 11.75-inch outside diameter × 0.81-inch thickness; SRP drilled & slotted faces. Iron construction; SRP Drilled Rotor design; published vane configuration: 32 V.
  • Supplied hub assembly: Hub - Vented Rotor Offset, aluminum, bare finish.
  • Wheel mounting patterns: 5 x 4.50; 5 x 4.75 inches.
  • Brake hoses are not included. Manufacturer line-kit reference(s), sold separately: 220-10509.
  • Minimum nominal wheel diameter: 15 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
  • Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

Use this kit on the listed GM applications equipped with Wilwood second-generation AFX ProSpindles. Do not assume that original spindles or the earlier AFX spindle are interchangeable. Match the model, production year and spindle option in the application table, then verify the installed spindle, hub bolt circle, full wheel seating and actual spoke/barrel clearance. Match the front caliper volume and pad compound to the master cylinder and rear brakes, and supply suitable braided flexlines separately. If any wheel contact surface overhangs the hub face, follow the documented requirement for the separate wheel spacer rather than allowing an unsupported wheel contact area. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

Ask PMB Performance to review the brake configuration if the vehicle has been modified. Our 20+ years of parts and fitment experience help identify the axle, spindle and wheel details that need to match before the kit is selected.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1970-1981 Chevrolet Camaro Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1970-1981 Pontiac Firebird Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Buick Century Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Buick Regal Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973 Chevrolet Chevelle Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet El Camino Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet Malibu Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet Monte Carlo Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 GMC Sprint Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Oldsmobile Cutlass Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Oldsmobile Cutlass Supreme Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1975 Oldsmobile Vista Cruiser Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1975 Pontiac Grand Am Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Pontiac Grand Prix Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973 Pontiac GTO Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Pontiac LeMans Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975 Buick Apollo Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Buick Skylark Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Chevrolet Nova Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Oldsmobile Omega Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1977 Pontiac Ventura Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1976 Cadillac Seville Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1983 Buick Estate Wagon Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Buick LeSabre Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Chevrolet Impala Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Oldsmobile Custom Cruiser Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Oldsmobile Delta 88 Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1981 Pontiac Bonneville Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1981 Pontiac Catalina Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1979 Pontiac Phoenix Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1979-1990 Chevrolet Caprice Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1980-1986 Pontiac Parisienne Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1984-1985 Buick Estate Wagon Estate Wagon Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
