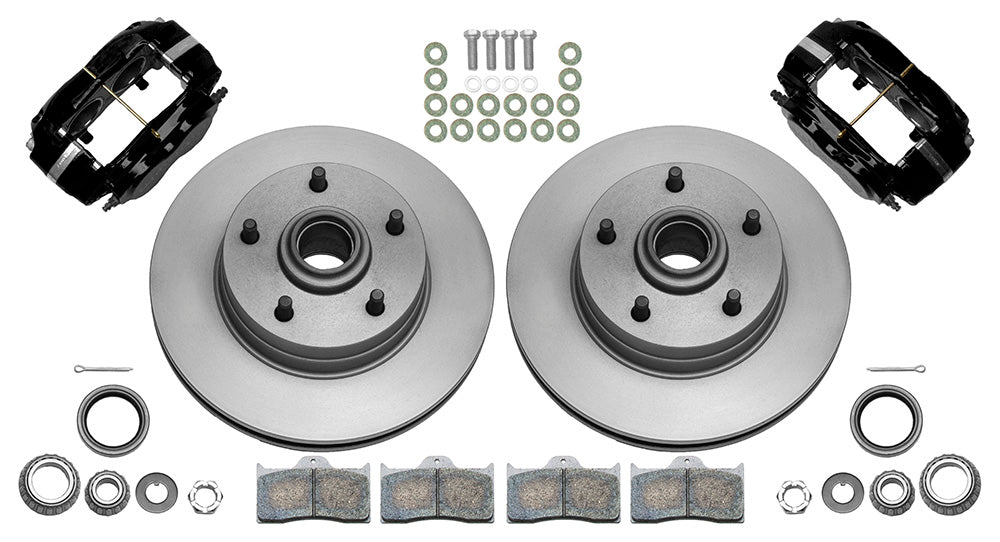

Wilwood Dynalite-M front brake kit, GM second-generation AFX ProSpindles, 11-inch plain rotors: Parts layout with two black Dynalite-M calipers, two plain integral rotor/hubs, pads, bearings, seals, wheel hardware and fasteners.

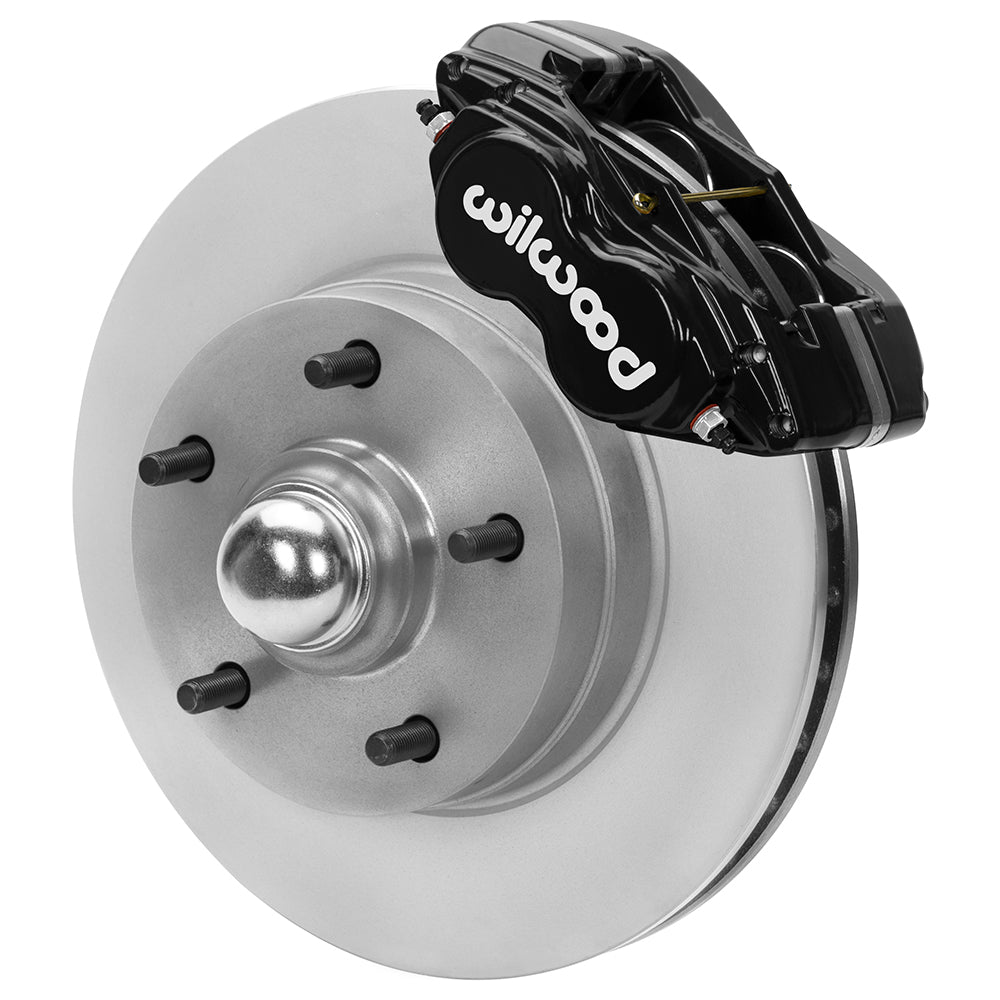

Wilwood Dynalite-M front brake kit, GM second-generation AFX ProSpindles, 11-inch plain rotors: Assembled plain rotor/hub with projecting wheel studs, center cap and black Dynalite-M caliper.
Wilwood Dynalite-M front brake kit, GM second-generation AFX ProSpindles, 11-inch plain rotors: Parts layout with two black Dynalite-M calipers, two plain integral rotor/hubs, pads, bearings, seals, wheel hardware and fasteners.
Wilwood Dynalite-M front brake kit, GM second-generation AFX ProSpindles, 11-inch plain rotors: Assembled plain rotor/hub with projecting wheel studs, center cap and black Dynalite-M caliper.

Wilwood Front Classic Dynalite-M Brake Kit, Black Calipers and 11-Inch Plain Rotor/Hubs for GM Second-Generation AFX ProSpindle Applications (Listed 1970–1990 Applications)

SKU: 140-15980

$766.55 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The second-generation AFX ProSpindle Classic front kit combines black Dynalite-M calipers with 11-inch integral rotor/hub assemblies. It is intended for the documented later GM applications with the specified Wilwood spindle conversion already fitted. Four-piston service calipers, BP-10 pads and bearing hardware are supplied. This package differs from the first AFX spindle kit, so confirm the actual spindle generation and wheel contact arrangement before ordering. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. It designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit is one configuration within that disc-brake-system range and must be matched to the vehicle build.

Technical Details

  • Manufacturer part number: 140-15980. Quantity: one kit for the stated axle/application.
  • Minimum nominal wheel diameter: 14 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
  • Rotor specification: 11.00-inch outside diameter × 1.00-inch thickness; plain faces. Iron construction; 1 PC Hub and Rotor design; published vane configuration: Vented.
  • One-piece iron rotor/hub assemblies are supplied, with the documented wheel-bearing and screw-in-stud arrangement.
  • Service caliper: Forged Dynalite-M; 4 pistons; stainless piston material. Lug mounting, black powder coat finish.
  • Published piston bores: 1.75, 1.75 inches. Supplied pad compound: BP-10.
  • Caliper hydraulic inlet: 1/8-27 NPT.
  • Brake hoses are not included. Manufacturer line-kit reference(s), sold separately: 220-10509.
  • Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

Use this kit on the listed GM applications equipped with Wilwood second-generation AFX ProSpindles. Do not assume that original spindles or the earlier AFX spindle are interchangeable. Match the model, production year and spindle option in the application table, then verify the installed spindle, hub bolt circle, full wheel seating and actual spoke/barrel clearance. Match the front caliper volume and pad compound to the master cylinder and rear brakes, and supply suitable braided flexlines separately. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

With over 20 years of parts and fitment experience, PMB Performance can help compare the required mounting interface with the vehicle build. Share spindle or axle measurements and wheel information before ordering if anything is uncertain.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1970-1981 Chevrolet Camaro Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1970-1981 Pontiac Firebird Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Buick Century Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Buick Regal Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973 Chevrolet Chevelle Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet El Camino Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet Malibu Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Chevrolet Monte Carlo Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 GMC Sprint Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Oldsmobile Cutlass Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Oldsmobile Cutlass Supreme Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1975 Oldsmobile Vista Cruiser Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1975 Pontiac Grand Am Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Pontiac Grand Prix Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973 Pontiac GTO Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1973-1977 Pontiac LeMans Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975 Buick Apollo Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Buick Skylark Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Chevrolet Nova Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1979 Oldsmobile Omega Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1975-1977 Pontiac Ventura Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1976 Cadillac Seville Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1983 Buick Estate Wagon Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Buick LeSabre Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Chevrolet Impala Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Oldsmobile Custom Cruiser Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1985 Oldsmobile Delta 88 Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1981 Pontiac Bonneville Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1981 Pontiac Catalina Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1977-1979 Pontiac Phoenix Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1979-1990 Chevrolet Caprice Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1980-1986 Pontiac Parisienne Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
1984-1985 Buick Estate Wagon Estate Wagon Vehicles using Wilwood 2nd GEN AFX ProSpindles Drop Drum Front Kit 1, 2, 3
