Wilwood Front Red-Caliper Superlite Kit with 14-Inch GT Rotors, Listed Later GM Truck/Van/SUV Five-Lug Iron ProSpindle Fitment (Listed 1988–2002 Applications)

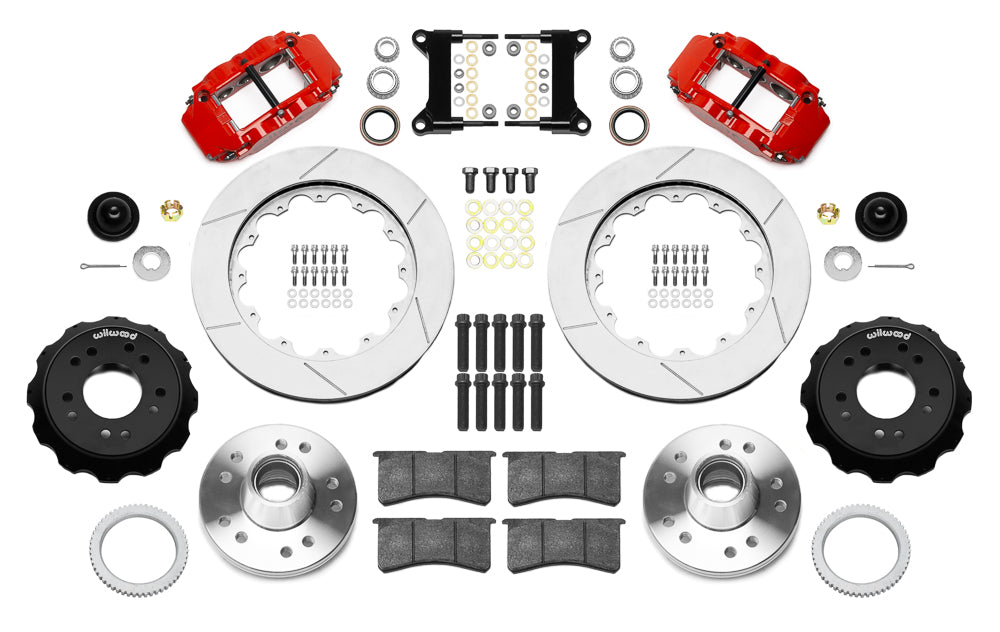

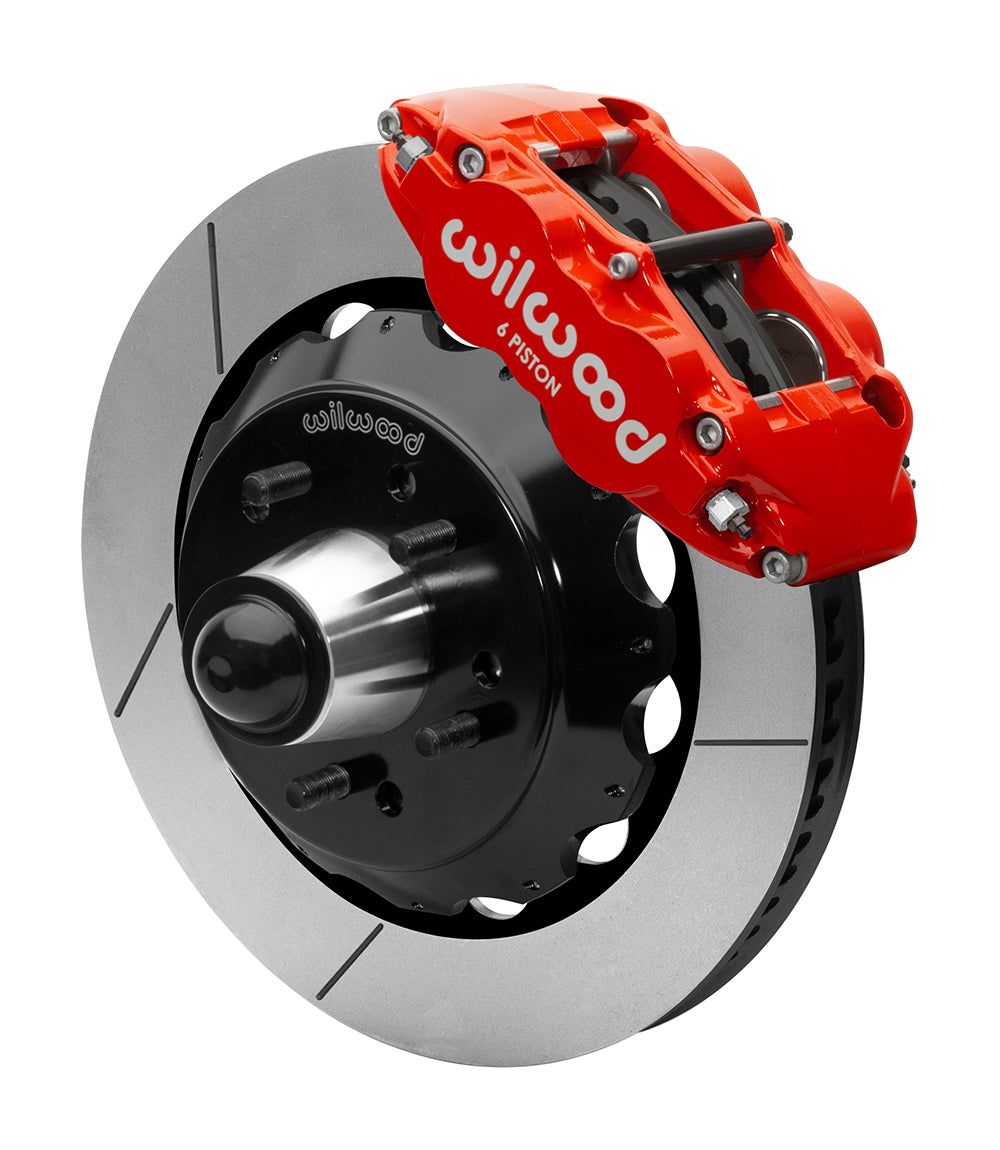

The red-caliper GT front system uses 14-inch Spec-37 rotor rings with separate hats and aluminum five-lug hubs. Superlite 6R six-piston calipers and BP-20 pads are supplied for the specified later-GM iron ProSpindle installation. It is not suitable for the vehicle's original spindles. Compare the actual wheel to the 18-inch clearance drawing and choose hoses for the truck, van or SUV being converted. From Camarillo, California, Wilwood Engineering develops disc-brake systems for street-performance, motorsport and specialized uses. Bill Wood founded the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form part of its range, and must be combined to match the demands of the complete brake system.

Technical Details

• Manufacturer part number: 140-15950-R. Quantity: one kit for the stated axle/application.
• Supplied hub assembly: Hub - Hat Mount, aluminum, bare finish.
• Wheel mounting patterns: 5 x 4.75; 5 x 5.00 inches.
• Service caliper: Forged Narrow Superlite 6R; 6 pistons; stainless piston material. Radial mounting, red powder coat finish.
• Published piston bores: 1.75, 1.25, 1.25 inches. Supplied pad compound: BP-20.
• Rotor specification: 14.00-inch outside diameter × 1.25-inch thickness; GT slotted faces. Spec-37 Iron construction; GT 72 Curved Vane design; published vane configuration: 72 CV.
• Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 1.230 inch.
• Minimum nominal wheel diameter: 18 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Brake hoses are not included. Manufacturer line-kit reference(s), sold separately: 220-16439.
• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

The listed later GM truck, van and SUV applications require the matching Wilwood C10 one-piece iron Pro Drop spindles. Original equipment spindles will not fit. The table has distinct 1988–1998 pickup entries and later SUV/van ranges, with certain van applications extending to 2002; do not apply one overall span to every model. Confirm the correct spindle generation, five-lug wheel interface, full hub seating and clearance around the caliper. Flexible brake lines are ordered separately for the vehicle being built. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

Ask PMB Performance to review the brake configuration if the vehicle has been modified. Our 20+ years of parts and fitment experience help identify the axle, spindle and wheel details that need to match before the kit is selected.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.
