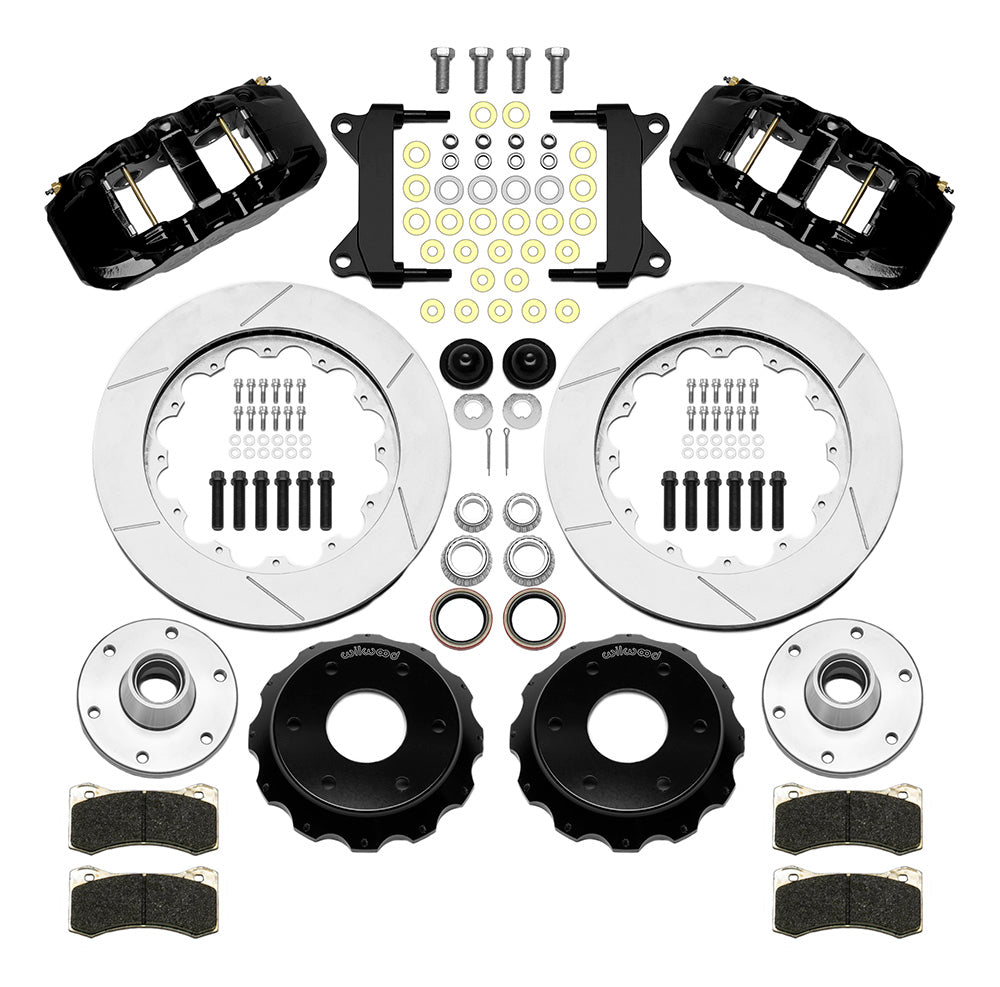

Wilwood AERO6 front brake kit, six-lug GM truck/SUV iron ProSpindles, 14-inch GT rotors: Parts layout with two black AERO6 calipers, gt slotted rotors, separate hubs, black rotor hats, pads, bearings and mounting hardware.

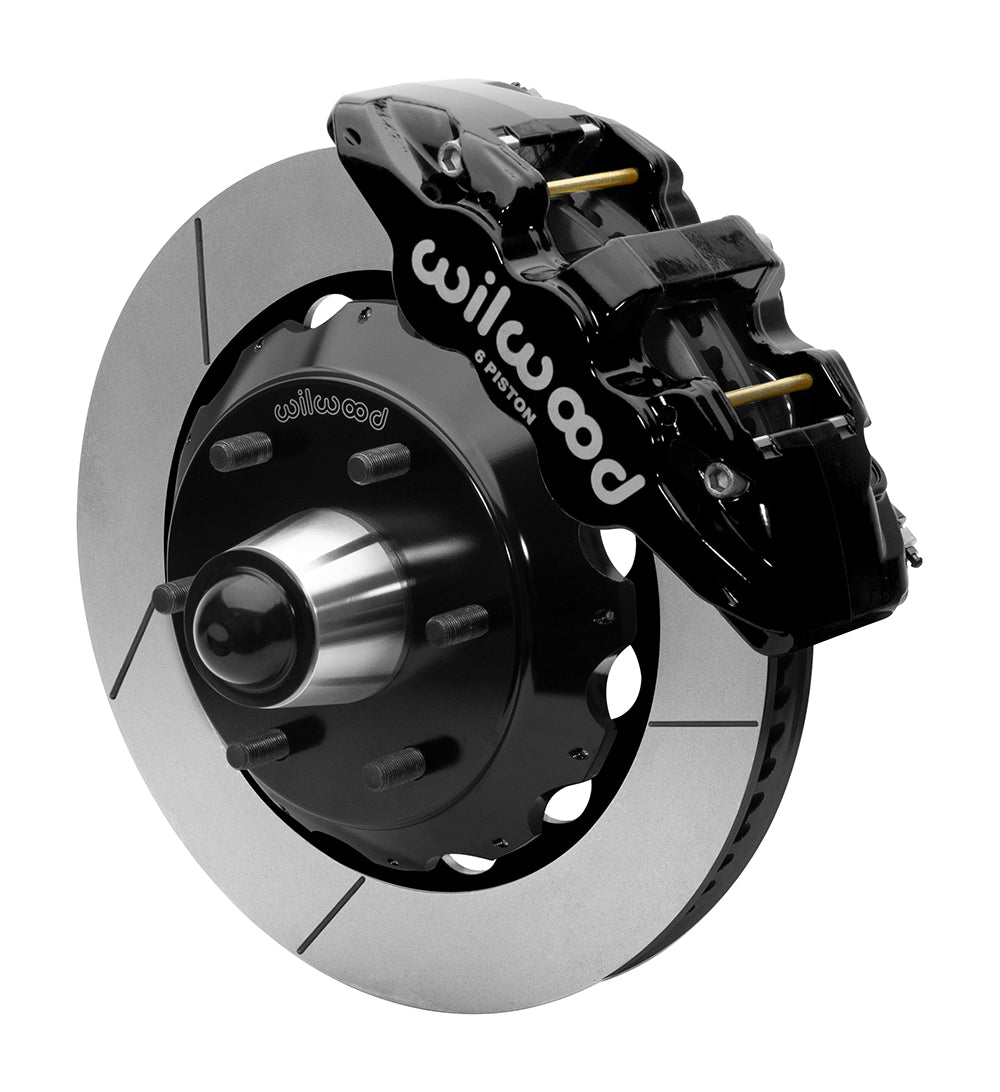

Wilwood AERO6 front brake kit, six-lug GM truck/SUV iron ProSpindles, 14-inch GT rotors: Assembled brake view with black AERO6 caliper, gt slotted rotor, black hat/adapter and projecting hub with wheel studs.
Wilwood AERO6 front brake kit, six-lug GM truck/SUV iron ProSpindles, 14-inch GT rotors: Parts layout with two black AERO6 calipers, gt slotted rotors, separate hubs, black rotor hats, pads, bearings and mounting hardware.
Wilwood AERO6 front brake kit, six-lug GM truck/SUV iron ProSpindles, 14-inch GT rotors: Assembled brake view with black AERO6 caliper, gt slotted rotor, black hat/adapter and projecting hub with wheel studs.

Wilwood Black AERO6 Front Six-Lug Brake Kit, 14-Inch GT Rotors and Aluminum Hubs for GM Truck/SUV Iron ProSpindle Applications (Listed 1963–1987 Applications)

SKU: 140-15947

$2,788.46 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black AERO6 six-piston calipers are paired with 14-inch GT rotors and six-lug aluminum hubs for the required truck iron ProSpindles. The radial caliper shape differs from the Superlite family, making this kit's clearance drawing essential. BP-20 pads and separate rotor hats are supplied. The GM truck/SUV application entries presume Wilwood one-piece iron Pro Drop spindles are installed; factory spindles do not fit. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. It designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit is one configuration within that disc-brake-system range and must be matched to the vehicle build.

Technical Details

  • Manufacturer part number: 140-15947. Quantity: one kit for the stated axle/application.
  • Minimum nominal wheel diameter: 18 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
  • Rotor specification: 14.00-inch outside diameter × 1.25-inch thickness; GT slotted faces. Spec-37 Iron construction; GT 72 Curved Vane design; published vane configuration: 72 CV.
  • Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 1.380 inch.
  • Supplied hub assembly: Hub - Hat Mount, aluminum, bare finish.
  • Wheel mounting pattern: 6 x 5.50 inches.
  • Service caliper: AERO6; 6 pistons; stainless piston material. Radial mounting, black powder coat finish.
  • Published piston bores: 1.75, 1.38, 1.38 inches. Supplied pad compound: BP-20.
  • Caliper hydraulic inlet: 1/8-27 NPT.
  • Brake hoses are not included. Manufacturer line-kit reference(s), sold separately: 220-7056, 220-11237, 220-12168.
  • Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

AERO6 calipers need their own wheel-clearance check on the six-lug GM truck/SUV builds listed below. Confirm a 6 × 5.50-inch wheel pattern and the documented Wilwood C10 one-piece iron Pro Drop spindle; the kit excludes factory-spindle installations. The spindle and brake combination moves the wheel 0.41 inch outboard on 1963–1970 applications, or 0.06 inch inboard on 1971–1987 applications, relative to the original parts. Verify clearance to the fender and suspension with that movement included. Spindles are not supplied, and braided lines must be chosen for the chassis connection and available travel. Read the complete application table below before choosing the kit for any individual GM model/year.

With over 20 years of parts and fitment experience, PMB Performance can help compare the required mounting interface with the vehicle build. Share spindle or axle measurements and wheel information before ordering if anything is uncertain.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1963-1967 Chevrolet C10 Panel Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1967 Chevrolet C10 Panel Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1974 Chevrolet C10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1974 Chevrolet C10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 Chevrolet Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 Chevrolet Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1965 GMC 1000 Series Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1965 GMC 1000 Series Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 GMC Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 GMC Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1966 GMC 1000 Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1966 GMC 1000 Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1986 Chevrolet C10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1986 Chevrolet C10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974 GMC C15/C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974 GMC C15/C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1974 Chevrolet Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1974 Chevrolet Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1982 GMC Jimmy Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1982 GMC Jimmy Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1986 Chevrolet C10 Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1986 Chevrolet C10 Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1982 Chevrolet K5 Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1982 Chevrolet K5 Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1978 GMC C15 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1978 GMC C15 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1979-1986 GMC C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1979-1986 GMC C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
