Wilwood Front 6 × 5.50-Inch Hub Brake Package, 13.06-Inch Drilled/Slotted Rotors and Black Superlite Calipers for GM Truck/SUV Iron ProSpindles (Listed 1963–1987 Applications)

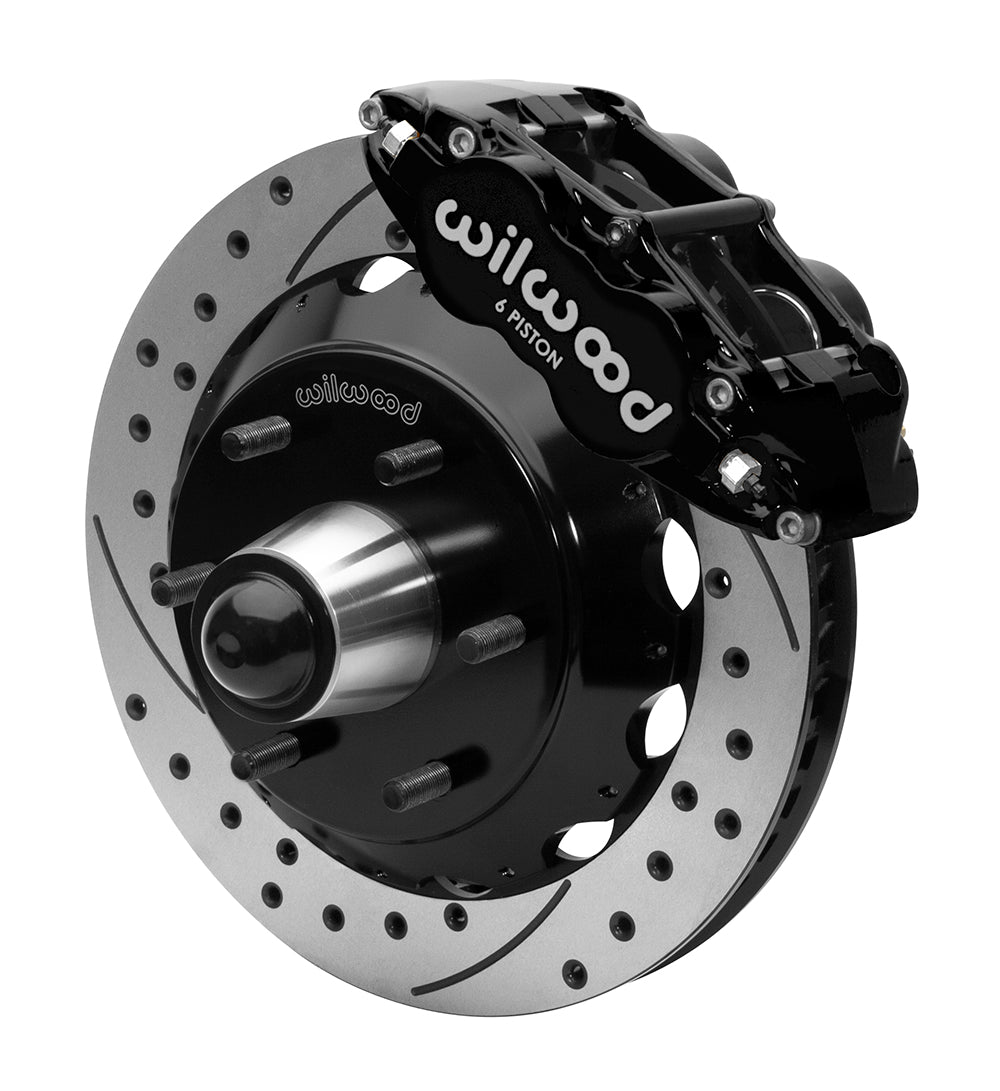

Black six-piston Superlite calipers act on 13.06-inch drilled/slotted rotors in this six-lug front hub package. BP-10 pads, separate aluminum hats and 6 × 5.50-inch hubs are supplied for the required iron ProSpindle arrangement. Original GM spindles are excluded. Confirm that the chosen wheel seats fully on the hub and passes the 17-inch clearance drawing, then select the necessary flexline length and fittings. Wilwood Engineering was established in 1977 by Bill Wood in Camarillo, California. The company designs and manufactures disc-brake systems and components, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized installations. Each component must match the rest of the brake system.

Technical Details

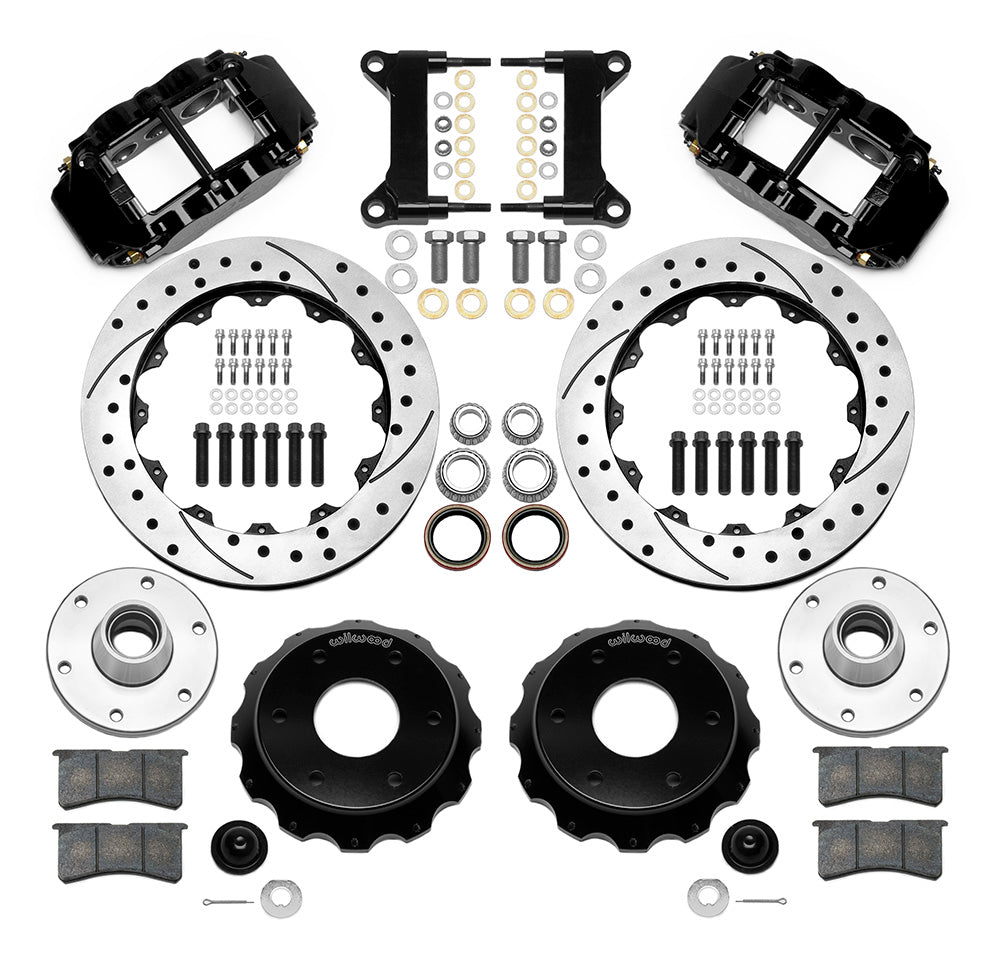

• Manufacturer part number: 140-15945-D. Quantity: one kit for the stated axle/application.
• Brake hoses are not included. Manufacturer line-kit reference(s), sold separately: 220-7056, 220-11237, 220-12168.
• Service caliper: Forged Narrow Superlite 6R; 6 pistons; stainless piston material. Radial mounting, black powder coat finish.
• Published piston bores: 1.75, 1.25, 1.25 inches. Supplied pad compound: BP-10.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Rotor specification: 13.06-inch outside diameter × 1.25-inch thickness; SRP drilled & slotted faces. Spec-37 Iron construction; SRP Drilled Rotor design; published vane configuration: 48 CV.
• Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 1.380 inch.
• Supplied hub assembly: Hub - Hat Mount, aluminum, bare finish.
• Wheel mounting pattern: 6 x 5.50 inches.
• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.
• Minimum nominal wheel diameter: 17 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.

Fitment & Compatibility

Check the six-lug wheel and the actual iron spindle before selecting this SRP front kit. The hub pattern is 6 × 5.50 inches, and fitment requires Wilwood's one-piece iron Pro Drop spindles rather than the original GM parts. The larger 13.06-inch rotating assembly needs the clearance shown in the kit drawing. Allow for a 0.41-inch outward wheel shift on listed 1963–1970 builds and a 0.06-inch inward shift on listed 1971–1987 builds, measured against the original brake/spindle arrangement. Confirm the exact model/year row below and provide the required spindles and flexible lines separately. Brake balance, wheel seating and hose travel must be checked on the completed vehicle.

PMB Performance has over 20 years of experience working with parts and fitment details. Provide the actual brake hardware, mounting dimensions and wheel measurements when requesting help with this conversion.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.
