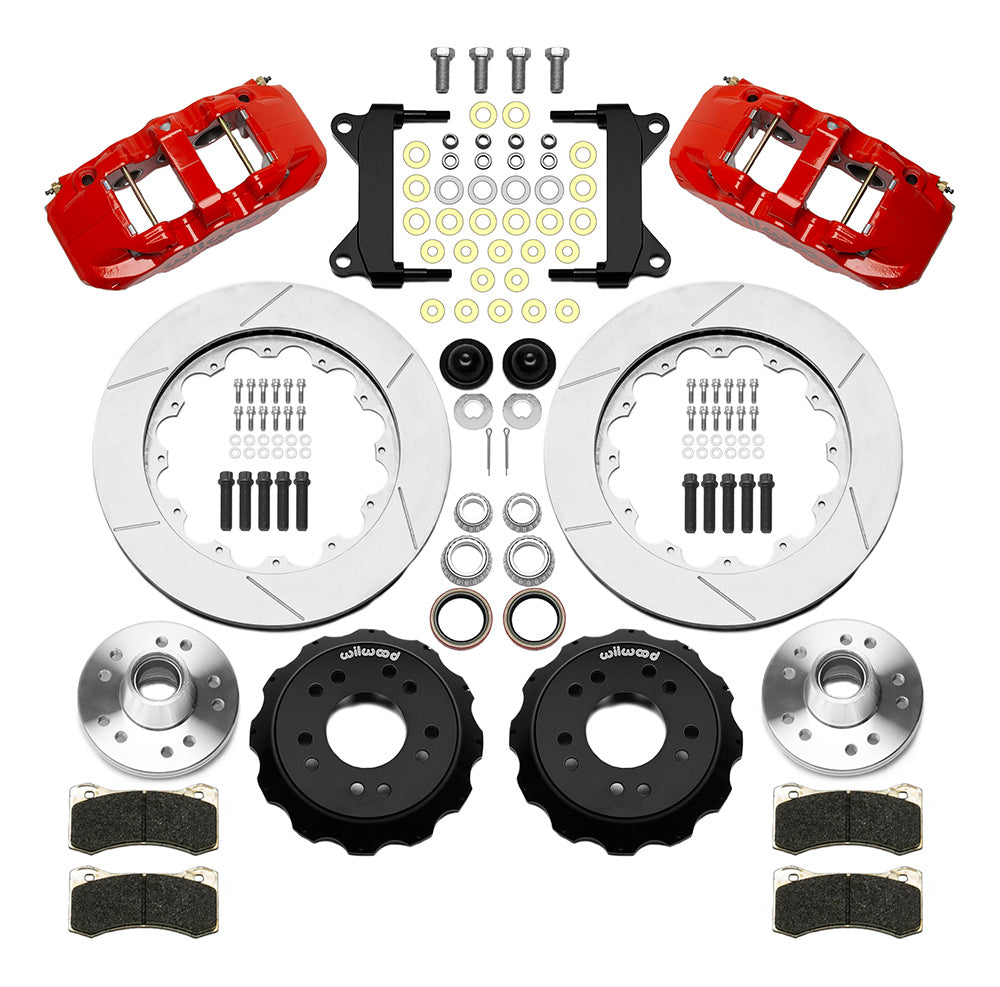

Wilwood AERO6 front brake kit, five-lug GM truck/SUV iron ProSpindles, 14-inch GT rotors: Parts layout with two red AERO6 calipers, gt slotted rotors, separate hubs, black rotor hats, pads, bearings and mounting hardware.

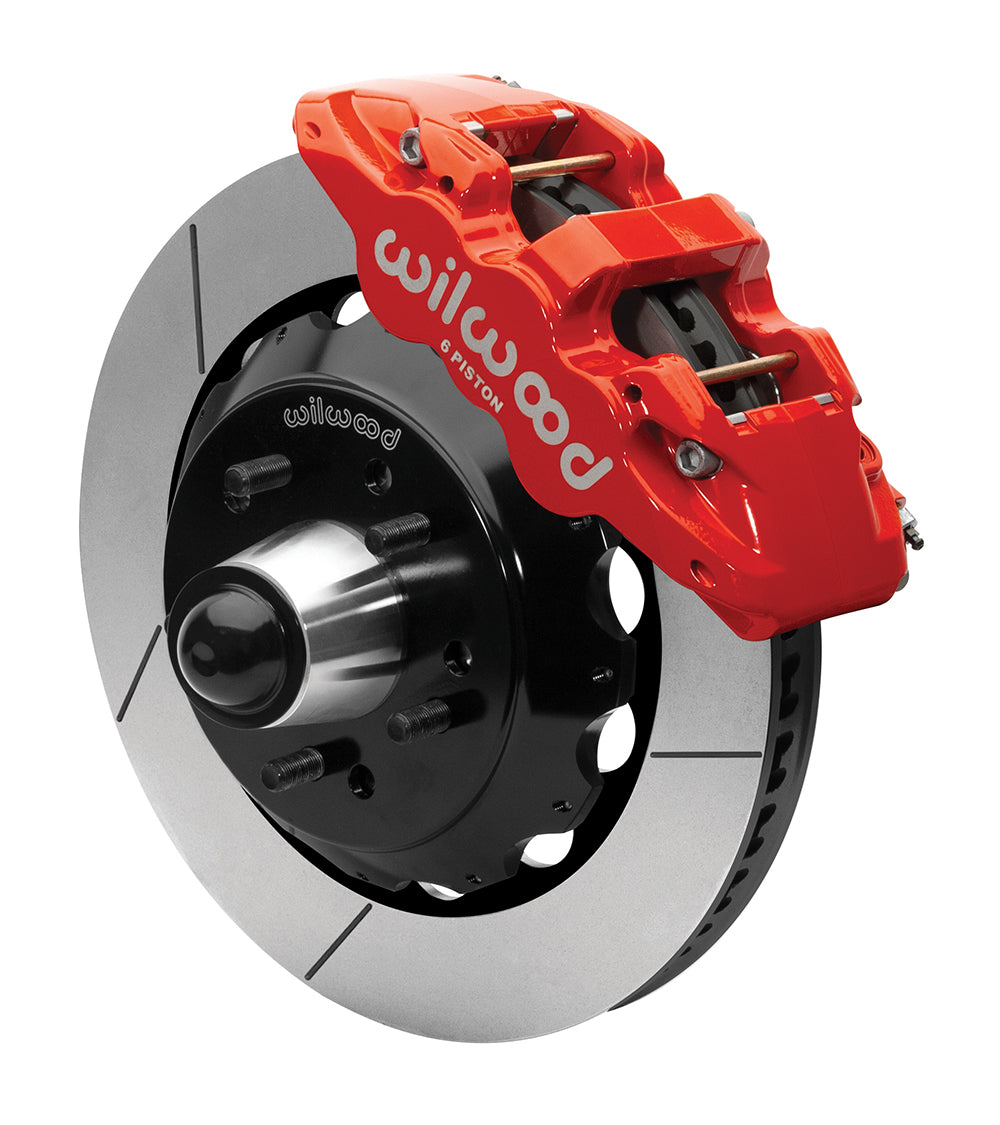

Wilwood AERO6 front brake kit, five-lug GM truck/SUV iron ProSpindles, 14-inch GT rotors: Assembled brake view with red AERO6 caliper, gt slotted rotor, black hat/adapter and projecting hub with wheel studs.
Wilwood AERO6 front brake kit, five-lug GM truck/SUV iron ProSpindles, 14-inch GT rotors: Parts layout with two red AERO6 calipers, gt slotted rotors, separate hubs, black rotor hats, pads, bearings and mounting hardware.
Wilwood AERO6 front brake kit, five-lug GM truck/SUV iron ProSpindles, 14-inch GT rotors: Assembled brake view with red AERO6 caliper, gt slotted rotor, black hat/adapter and projecting hub with wheel studs.

Wilwood Red AERO6 Front Brake System with 14-Inch GT Slotted Rotors and Five-Lug Hubs, Listed GM Truck/SUV ProSpindle Fitment (Listed 1963–1987 Applications)

SKU: 140-15943-R

$2,783.98 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

The red/GT AERO6 configuration supplies six-piston front calipers, 14-inch Spec-37 rotor rings and five-lug aluminum hubs. It is matched to the required Wilwood one-piece iron Pro Drop spindles on listed GM trucks and SUVs. BP-20 pads are the specified friction compound for these GT rotors. Treat nominal 18-inch wheel diameter as a guide, then verify the complete drawing and the documented track-width change. Wilwood Engineering was established in 1977 by Bill Wood in Camarillo, California. The company designs and manufactures disc-brake systems and components, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized installations. Each component must match the rest of the brake system.

Technical Details

  • Manufacturer part number: 140-15943-R. Quantity: one kit for the stated axle/application.
  • Service caliper: AERO6; 6 pistons; stainless piston material. Radial mounting, red powder coat finish.
  • Published piston bores: 1.75, 1.38, 1.38 inches. Supplied pad compound: BP-20.
  • Caliper hydraulic inlet: 1/8-27 NPT.
  • Rotor specification: 14.00-inch outside diameter × 1.25-inch thickness; GT slotted faces. Spec-37 Iron construction; GT 72 Curved Vane design; published vane configuration: 72 CV.
  • Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 1.380 inch.
  • Supplied hub assembly: Hub - Hat Mount, aluminum, bare finish.
  • Wheel mounting patterns: 5 x 4.75; 5 x 5.00 inches.
  • Brake hoses are not included. Manufacturer line-kit reference(s), sold separately: 220-7056, 220-11237, 220-12168.
  • Minimum nominal wheel diameter: 18 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
  • Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

These application rows require Wilwood C10 one-piece iron Pro Drop spindles; the kit will not fit original equipment spindles. The listed GM trucks and SUVs span specific 1963–1987 model ranges, so check the exact row and installed spindle. Relative to the original brakes and spindle, Wilwood specifies wheel movement of 0.41 inch outboard for 1963–1970 and 0.06 inch inboard for 1971–1987. Match the five-lug 5 × 4.75 / 5 × 5.00-inch wheel interface and allow for the resulting wheel position when checking fender, suspension and brake clearance. Spindles and flexible lines are not included. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

PMB Performance brings 20+ years of parts and fitment experience to brake selection. Send the actual spindle or axle details, existing brake package and wheel measurements for help checking this combination.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1963-1967 Chevrolet C10 Panel Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1967 Chevrolet C10 Panel Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1974 Chevrolet C10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1974 Chevrolet C10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 Chevrolet Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 Chevrolet Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1965 GMC 1000 Series Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1965 GMC 1000 Series Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 GMC Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1963-1966 GMC Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1966 GMC 1000 Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1966 GMC 1000 Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1986 Chevrolet C10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1986 Chevrolet C10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974 GMC C15/C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974 GMC C15/C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1974 Chevrolet Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1974 Chevrolet Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1982 GMC Jimmy Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1970-1982 GMC Jimmy Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1986 Chevrolet C10 Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1986 Chevrolet C10 Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1982 Chevrolet K5 Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1982 Chevrolet K5 Blazer Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1978 GMC C15 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1975-1978 GMC C15 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1979-1986 GMC C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1979-1986 GMC C1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 Chevrolet R10 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Pickup Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
1987 GMC R1500 Suburban Vehicles using Wilwood Iron ProSpindles Drop Drum Front Kit 1, 2, 3, 4, 5
