Wilwood Black AERO6 Front Brake Conversion, 14-Inch SRP Rotors for Listed Jeep Wrangler JL/Gladiator Models (Listed 2018–2025 Applications)

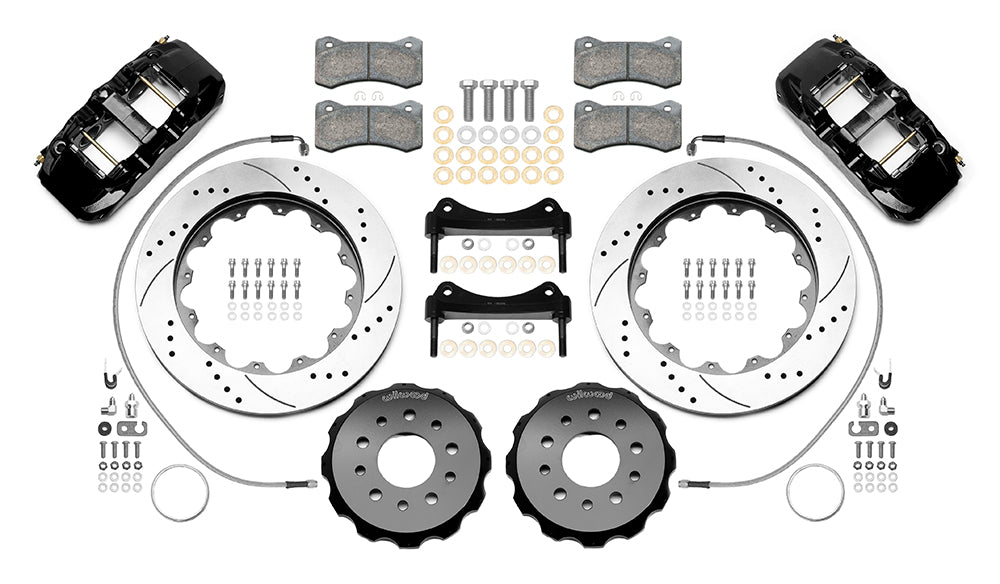

This AERO6 front kit uses black calipers with drilled/slotted 14.00-inch Spec-37 rotors for the documented Jeep JL/JT applications. The six-piston radial arrangement is supplied with BP-20 pads and braided flexlines. The two-piece rotor assembly retains the specified existing hubs. Match the Wrangler or Gladiator trim/year entry and check the spoke profile against the 18-inch wheel drawing. Based in Camarillo, California, Wilwood Engineering was founded by Bill Wood in 1977. Its disc brake systems serve motorsport, street-performance and specialized applications. The range includes calipers, rotors, master cylinders, valves, fittings and brake lines, with each component chosen for its role in the complete brake installation.

Technical Details

• Manufacturer part number: 140-15892-D. Quantity: one kit for the stated axle/application.

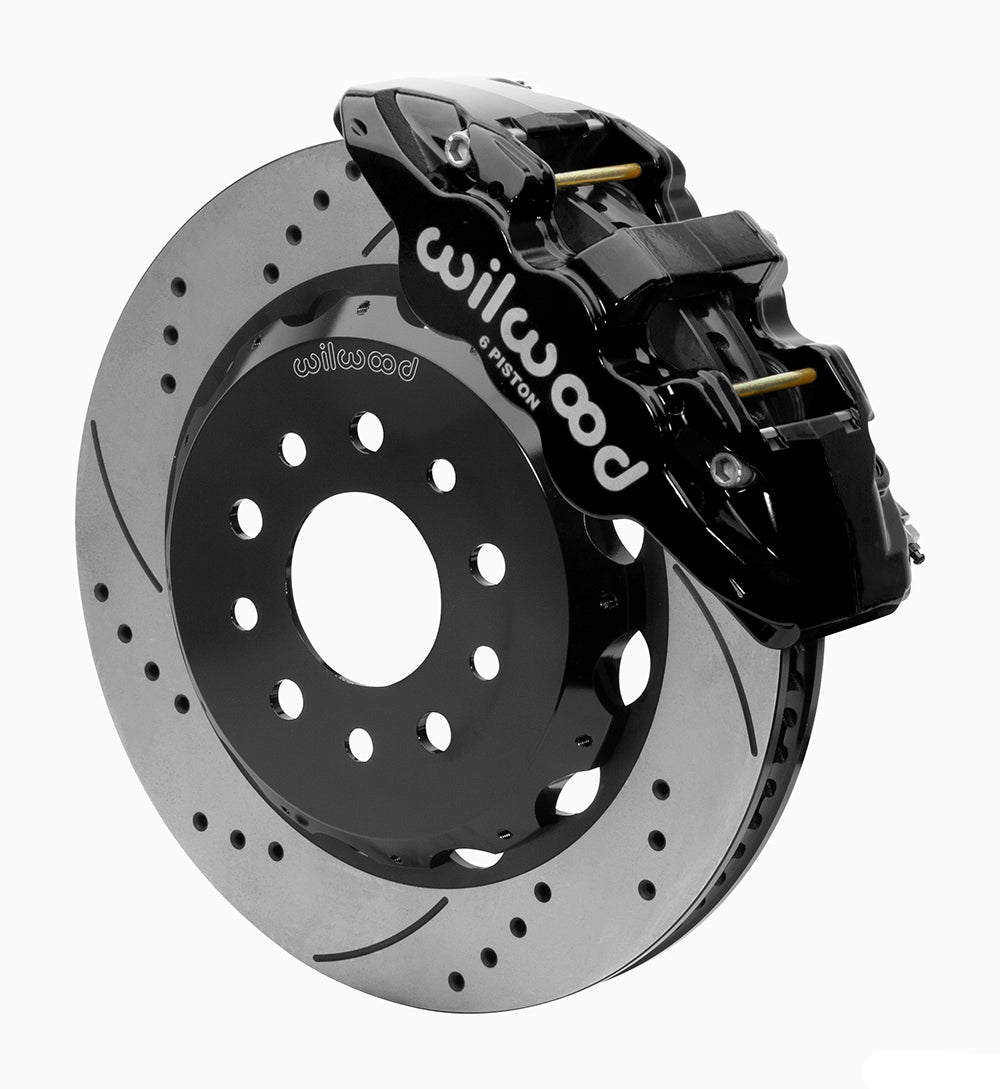

• Service caliper: AERO6-DS; 6 pistons; stainless piston material. Radial mounting, black powder coat finish.
• Published piston bores: 1.75, 1.62, 1.62 inches. Supplied pad compound: BP-20.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Rotor specification: 14.00-inch outside diameter × 1.25-inch thickness; SRP drilled & slotted faces. Spec-37 Iron construction; SRP Drilled Rotor design; published vane configuration: 72 CV.
• Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 0.850 inch.
• No replacement wheel hubs are supplied; retain or provide the documented matching hub arrangement.
• Wheel mounting pattern: 5 x 5.00 inches.
• Included braided flexline kit: 220-15927 (33.00 in). Confirm the chassis fitting and routing for the actual installation.
• Minimum nominal wheel diameter: 18 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

The table covers Wrangler JL beginning with 2018 entries, later Wrangler applications through selected 2025 trims, and Gladiator entries beginning in 2020. Trim/year ranges differ, including 4xe and special-edition rows; read every applicable option in the table. This kit retains the documented existing hubs and is designed around the stated factory master-cylinder and ABS operation. Check the 18-inch wheel envelope and route the long flexlines for the actual suspension travel. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

For fitment assistance, send PMB Performance the vehicle details together with the installed spindle or axle configuration and wheel measurements. We draw on 20+ years of parts and fitment experience to help assess the combination.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.
