Wilwood Front AERO6 Brake Kit for Jeep Wrangler JL and Gladiator, Black Calipers with 14-Inch GT Rotors, Listed 2018–2025 Applications

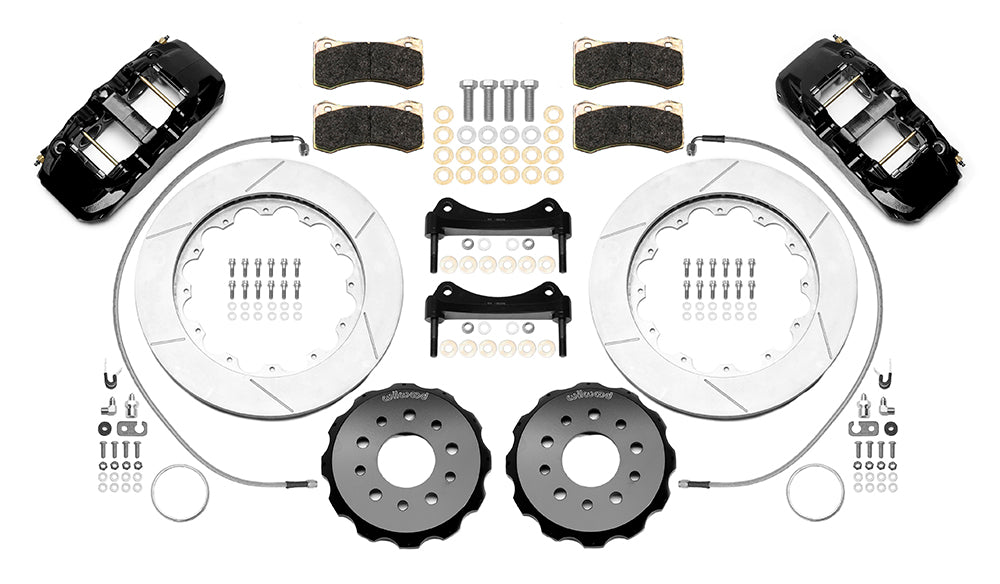

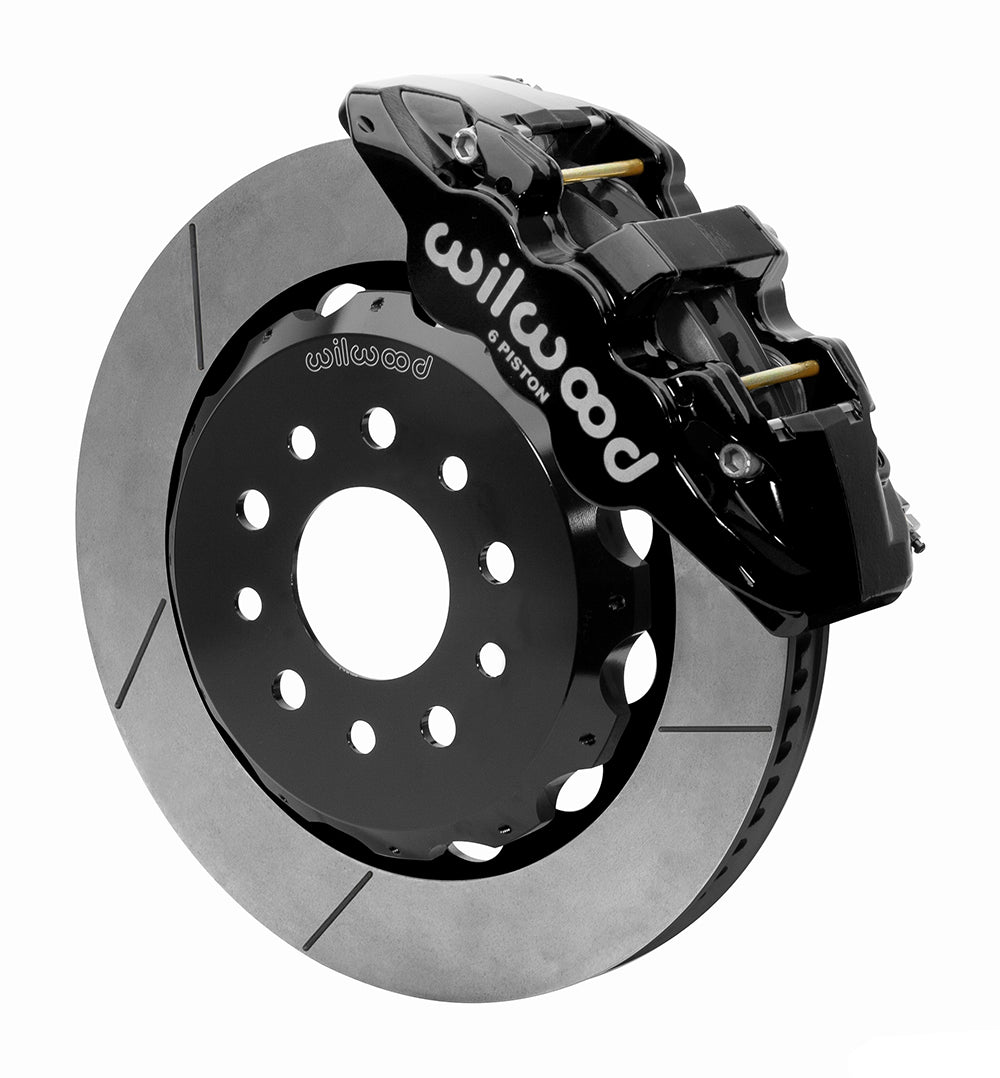

Black AERO6 six-piston calipers and 14.00-inch GT slotted rotors provide the front conversion for the listed Jeep Wrangler JL and Gladiator applications. Separate aluminum hats and BP-20 pads are included, together with 33-inch flexlines. Wrangler and Gladiator year/trim coverage is not identical, so check the actual row for the vehicle rather than applying the overall 2018–2025 span to every model. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. It designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit is one configuration within that disc-brake-system range and must be matched to the vehicle build.

Technical Details

• Manufacturer part number: 140-15892. Quantity: one kit for the stated axle/application.
• Rotor specification: 14.00-inch outside diameter × 1.25-inch thickness; GT slotted faces. Spec-37 Iron construction; GT 72 Curved Vane design; published vane configuration: 72 CV.
• Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 0.850 inch.
• Service caliper: AERO6-DS; 6 pistons; stainless piston material. Radial mounting, black powder coat finish.
• Published piston bores: 1.75, 1.62, 1.62 inches. Supplied pad compound: BP-20.
• Caliper hydraulic inlet: 1/8-27 NPT.
• No replacement wheel hubs are supplied; retain or provide the documented matching hub arrangement.
• Wheel mounting pattern: 5 x 5.00 inches.
• Minimum nominal wheel diameter: 18 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.
• Included braided flexline kit: 220-15927 (33.00 in). Confirm the chassis fitting and routing for the actual installation.

Fitment & Compatibility

The table covers Wrangler JL beginning with 2018 entries, later Wrangler applications through selected 2025 trims, and Gladiator entries beginning in 2020. Trim/year ranges differ, including 4xe and special-edition rows; read every applicable option in the table. This kit retains the documented existing hubs and is designed around the stated factory master-cylinder and ABS operation. Check the 18-inch wheel envelope and route the long flexlines for the actual suspension travel. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

For fitment assistance, send PMB Performance the vehicle details together with the installed spindle or axle configuration and wheel measurements. We draw on 20+ years of parts and fitment experience to help assess the combination.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.
