Wilwood Red TX6R Front Conversion for Ford F-150 SVT Raptor, 15.50-Inch Slotted Rotors and Braided Hoses (2010–2014)

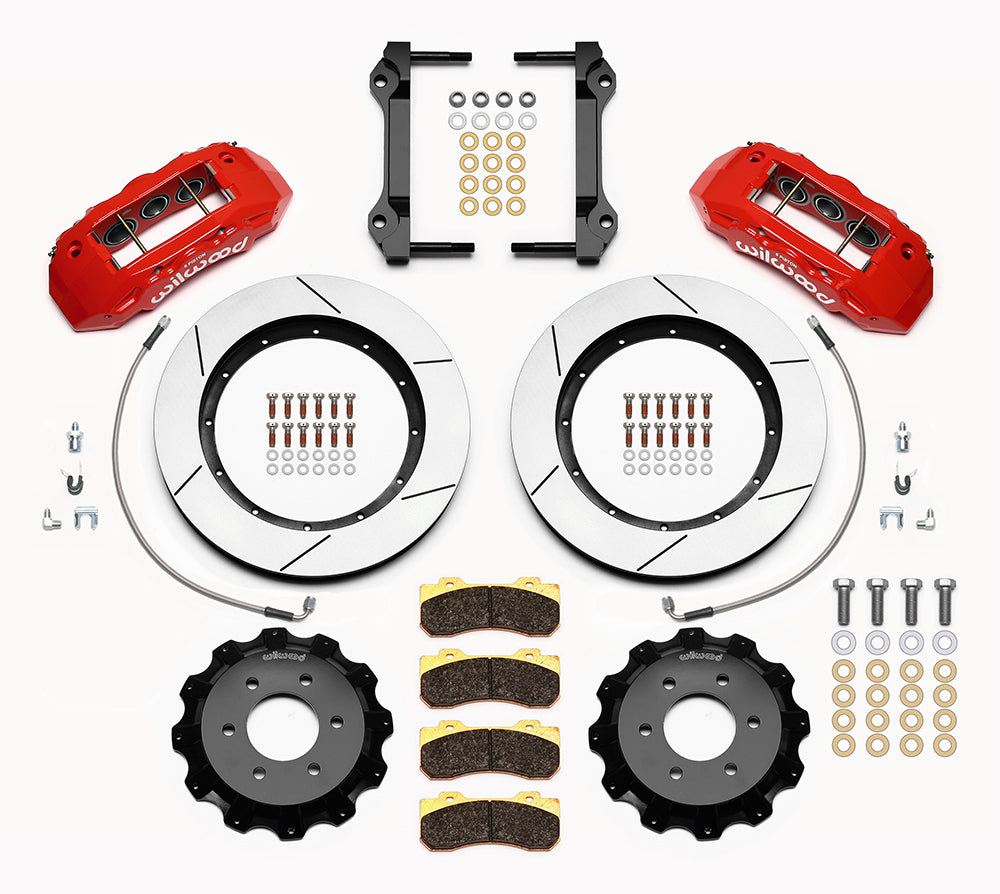

This red TX6R front kit converts the specified first-generation F-150 SVT Raptor to 15.50 × 1.38-inch GT slotted rotors. The six-piston radial calipers use BP-22 pads, and the correct 20-inch flexlines are supplied. A spherical tie-rod-end conversion is needed to clear the rotors. The six-lug mounting interface and the actual inside shape of the wheel must also match Wilwood's requirements. From Camarillo, California, Wilwood Engineering develops disc-brake systems for street-performance, motorsport and specialized uses. Bill Wood founded the company in 1977. Calipers, brake rotors, master cylinders, valves, fittings and brake lines form part of its range, and must be combined to match the demands of the complete brake system.

Technical Details

• Manufacturer part number: 140-15886-R. Quantity: one kit for the stated axle/application.
• No replacement wheel hubs are supplied; retain or provide the documented matching hub arrangement.
• Wheel mounting pattern: 6 X 5.32 inches.

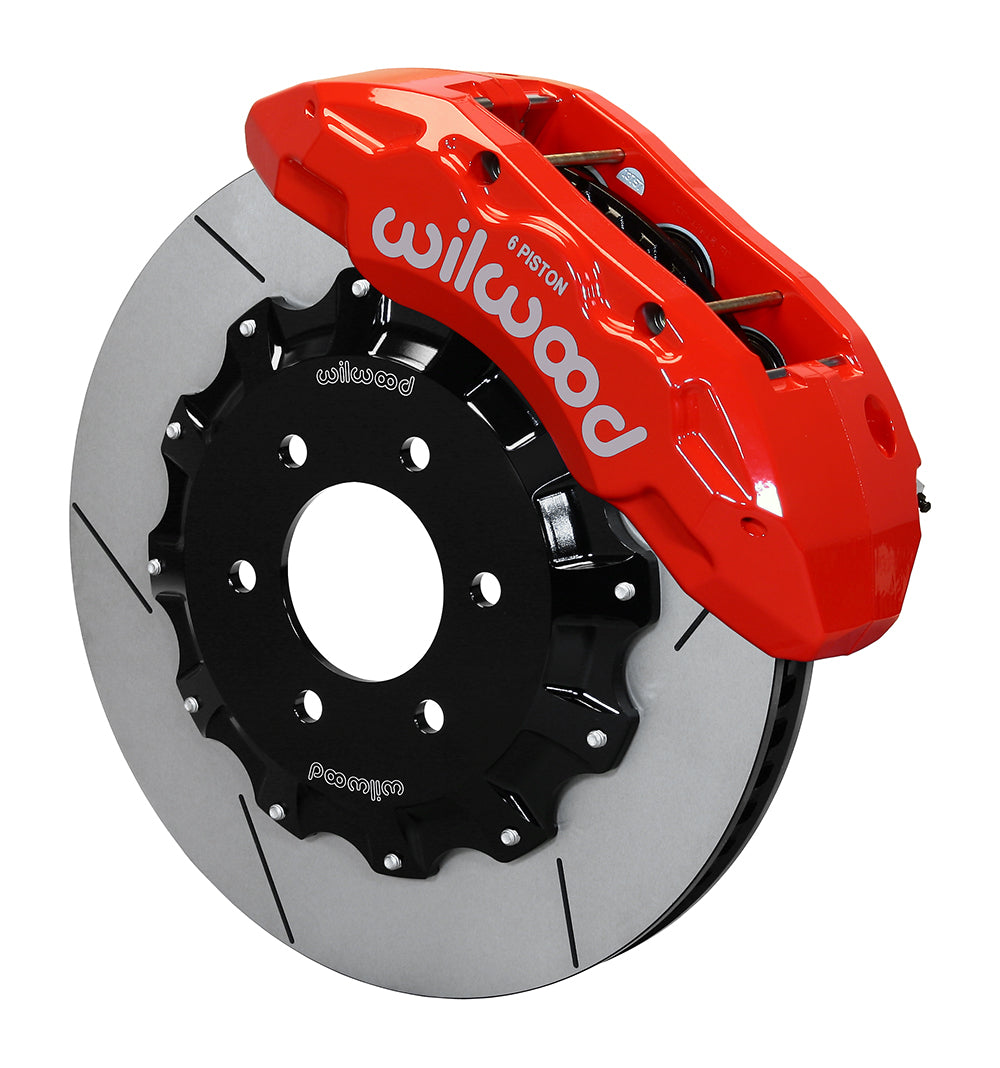

• Service caliper: TX6R; 6 pistons; stainless piston material. Radial mounting, red powder coat finish.
• Published piston bores: 1.75, 1.62, 1.62 inches. Supplied pad compound: BP-22.
• Rotor specification: 15.50-inch outside diameter × 1.38-inch thickness; GT slotted faces. Spec-37 Iron construction; GT 60 Curved Vane design; published vane configuration: 60 CV.
• Rotor hats: aluminum, black e-coat finish; Truck Hat - Standard. Hat offset: 0.700 inch.
• Minimum nominal wheel diameter: 20 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Included braided flexline kit: 220-15837 (20.00 in). Confirm the chassis fitting and routing for the actual installation.
• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

The listed application is 2010–2014 F-150 SVT Raptor. The installation requires aftermarket spherical tie-rod ends for rotor clearance; the manufacturer identifies ADD Offroad AC011507NANA as an example. Confirm six-lug wheel fitment; seven-lug vehicles are excluded. Review the 20-inch wheel-clearance drawing and secure the supplied flexlines through full lock and suspension travel. The complete truck brake system must retain appropriate front/rear balance. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

Ask PMB Performance to review the brake configuration if the vehicle has been modified. Our 20+ years of parts and fitment experience help identify the axle, spindle and wheel details that need to match before the kit is selected.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.
