Wilwood Black TX6R Six-Piston Front Conversion with 15.50-Inch GT Rotors and Hoses for Ford F-150 SVT Raptor (2010–2014)

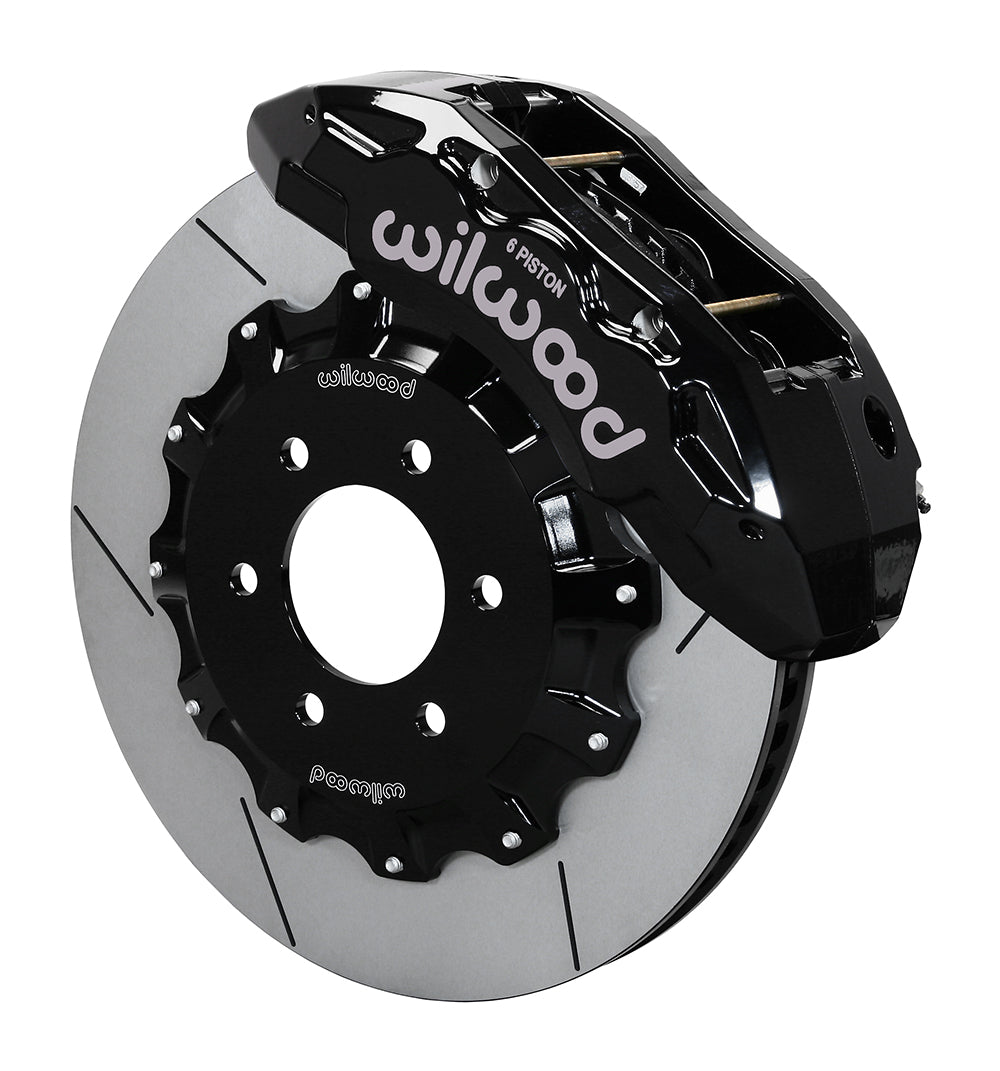

Black TX6R six-piston calipers, 15.50-inch GT rotors and BP-22 pads make this the listed 2010–2014 F-150 SVT Raptor front package. Dedicated braided flexlines are included. Rotor clearance requires suitable aftermarket spherical tie-rod ends, and the kit is for six-lug wheels rather than seven-lug trucks. Check those installation requirements together with the 20-inch wheel template before ordering. Wilwood Engineering, founded by Bill Wood in 1977, designs and manufactures disc brake systems from its Camarillo, California base. Motorsport, street-performance and specialized applications use its calipers, rotors, master cylinders, valves, fittings and brake lines. Correct component selection depends on the requirements of the entire braking system.

Technical Details

• Manufacturer part number: 140-15886. Quantity: one kit for the stated axle/application.
• Rotor specification: 15.50-inch outside diameter × 1.38-inch thickness; GT slotted faces. Spec-37 Iron construction; GT 60 Curved Vane design; published vane configuration: 60 CV.
• Service caliper: TX6R; 6 pistons; stainless piston material. Radial mounting, black powder coat finish.
• Rotor hats: aluminum, black e-coat finish; Truck Hat - Standard. Hat offset: 0.700 inch.
• No replacement wheel hubs are supplied; retain or provide the documented matching hub arrangement.
• Wheel mounting pattern: 6 X 5.32 inches.
• Published piston bores: 1.75, 1.62, 1.62 inches. Supplied pad compound: BP-22.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Included braided flexline kit: 220-15837 (20.00 in). Confirm the chassis fitting and routing for the actual installation.
• Minimum nominal wheel diameter: 20 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.

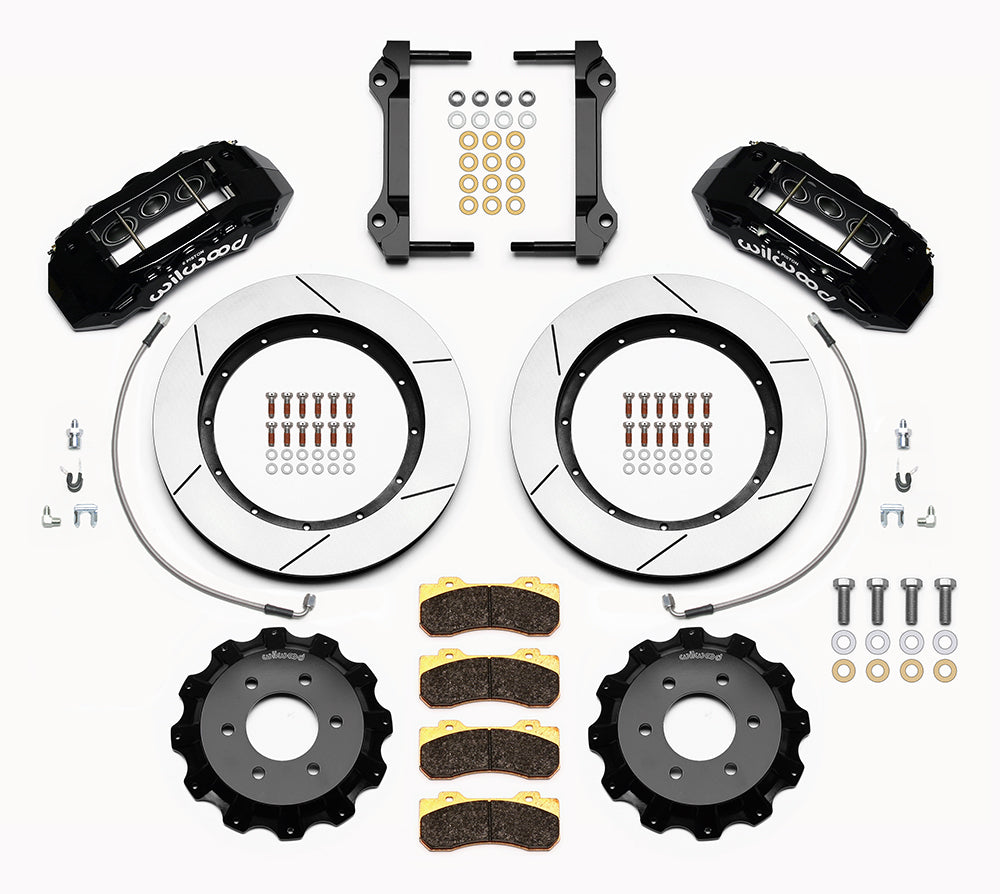

• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

The listed application is 2010–2014 F-150 SVT Raptor. The installation requires aftermarket spherical tie-rod ends for rotor clearance; the manufacturer identifies ADD Offroad AC011507NANA as an example. Confirm six-lug wheel fitment; seven-lug vehicles are excluded. Review the 20-inch wheel-clearance drawing and secure the supplied flexlines through full lock and suspension travel. The complete truck brake system must retain appropriate front/rear balance. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

Ask PMB Performance to review the brake configuration if the vehicle has been modified. Our 20+ years of parts and fitment experience help identify the axle, spindle and wheel details that need to match before the kit is selected.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.
