Wilwood Black Superlite 4R Rear EPB Brake Kit, 14-Inch GT Slotted Rotors for Big Ford New-Style Axles with 2.50-Inch Offset

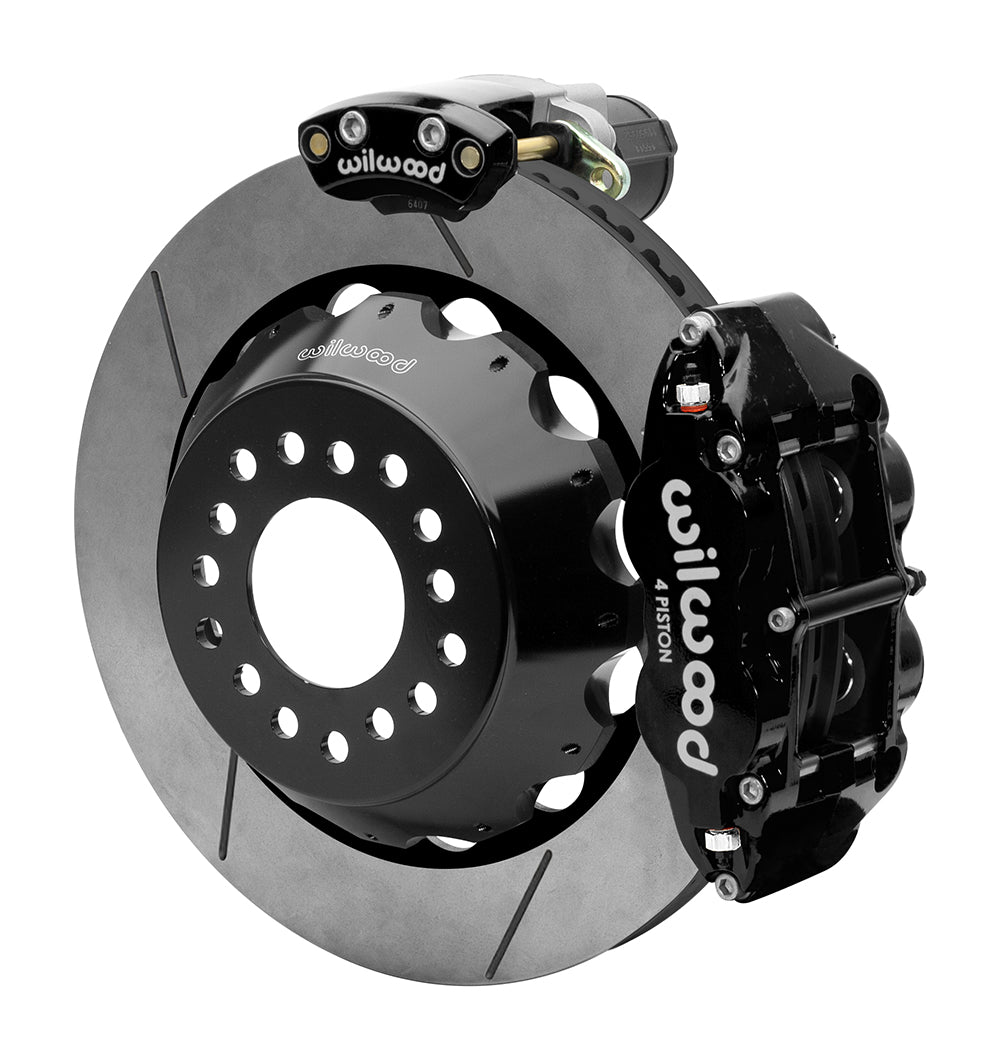

The 14.00-inch GT rotor option gives this black Superlite 4R rear package its larger rotating assembly. Radial four-piston service calipers work with the hydraulic system; separate electronic calipers supply parking hold. It is built around a Big Ford new-style housing flange and 2.50-inch axle offset. The 18-inch nominal wheel requirement still needs verification against the spoke and barrel profile. Bill Wood founded Wilwood Engineering in 1977; the company is based in Camarillo, California. It designs and manufactures calipers, brake rotors, master cylinders, valves, fittings and brake lines for motorsport, street-performance and specialized applications. This kit is one configuration within that disc-brake-system range and must be matched to the vehicle build.

Technical Details

• Manufacturer part number: 140-15845. Quantity: one kit for the stated axle/application.
• Rotor specification: 14.00-inch outside diameter × 1.10-inch thickness; GT slotted faces. Spec-37 Iron construction; GT 72 Curved Vane design; published vane configuration: 72 CV.
• Service caliper: Forged Narrow Superlite 4R; 4 pistons; stainless piston material. Radial mounting, black powder coat finish.
• Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 2.035 inch.
• No replacement wheel hubs are supplied; retain or provide the documented matching hub arrangement.
• Wheel mounting patterns: 5 x 4.50; 5 x 4.75; 5 x 5.00 inches.
• Published piston bores: 1.12, 1.12 inches. Supplied pad compound: BP-10.
• Rear housing interface: Big Ford New Style; axle offset: 2.50 in; 63.5 mm.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Brake hoses are not included. Select suitable braided lines and fittings for the installation.
• Minimum nominal wheel diameter: 18 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.

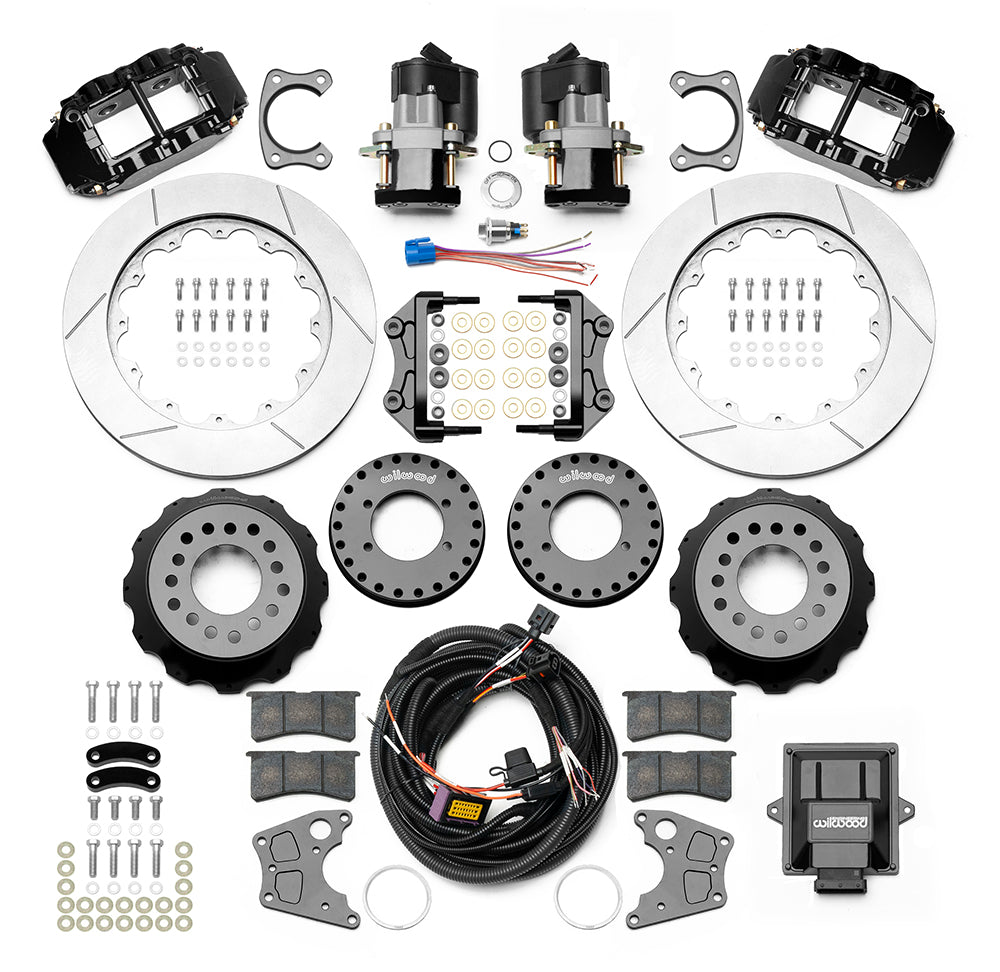

• Separate electronic parking calipers, controller, wiring harness and switch are included. EPB actuation is electrical; hydraulic service braking remains independent.
• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

Application is controlled by the Big Ford new-style housing flange and a measured 2.50-inch axle offset. The application table lists a 1990 Lincoln Town Car, but the manufacturer does not currently confirm that model application. Do not order for a Town Car by year/model alone; verify the housing-end drawing, bearing retainer and offset first. Check axle-flange diameter, wheel seating, wheel profile and EPB motor clearance through suspension travel. The electronic parking system is for stationary parking hold, not an emergency stop brake. Mounting brackets must allow both service and parking calipers to clear the body and suspension. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

For fitment assistance, send PMB Performance the vehicle details together with the installed spindle or axle configuration and wheel measurements. We draw on 20+ years of parts and fitment experience to help assess the combination.

Manufacturer documentation: Installation instructions; Technical bulletin.
