Wilwood Rear EPB Big-Brake Package with Red Superlite 4R Calipers and 12.88-Inch SRP Rotors, Big Ford New-Style Axles

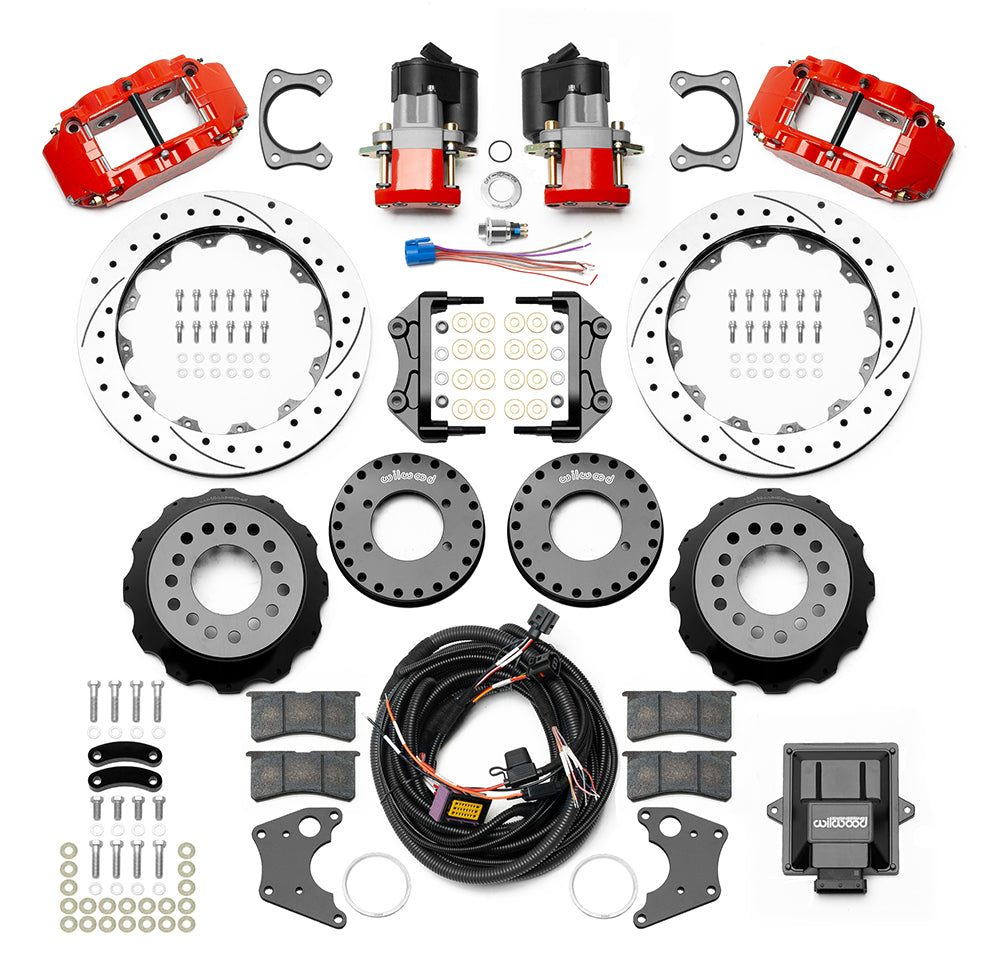

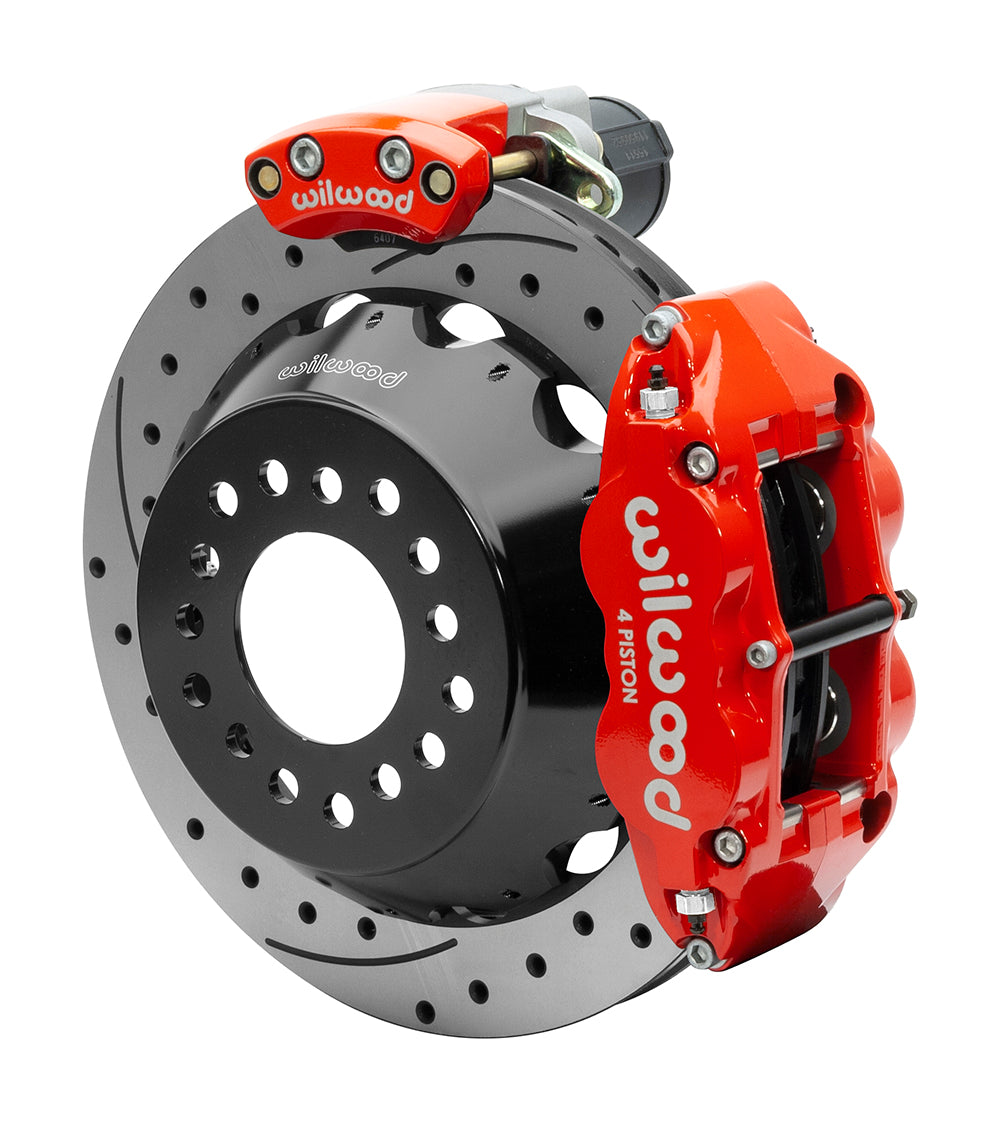

A red Superlite 4R service caliper and red electric parking caliper act on each 12.88-inch drilled/slotted rotor in this rear conversion. The parking controls are included, but the hydraulic hose installation still needs to be specified separately. Use the measured Big Ford new-style housing-end dimensions and 2.50-inch offset to establish compatibility before checking wheel clearance or selecting the caliper mounting positions. Founded by Bill Wood in 1977 and based in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems for motorsport, street-performance and specialized applications. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines are selected to suit the complete braking system.

Technical Details

• Manufacturer part number: 140-15844-DR. Quantity: one kit for the stated axle/application.
• No replacement wheel hubs are supplied; retain or provide the documented matching hub arrangement.
• Wheel mounting patterns: 5 x 4.50; 5 x 4.75; 5 x 5.00 inches.
• Rear housing interface: Big Ford New Style; axle offset: 2.50 in; 63.5 mm.
• Minimum nominal wheel diameter: 17 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.
• Rotor specification: 12.88-inch outside diameter × 1.10-inch thickness; SRP drilled & slotted faces. Spec-37 Iron construction; SRP Drilled Rotor design; published vane configuration: 48 CV.
• Rotor hats: aluminum, black e-coat finish; Big Brake Hat - Flared Bell. Hat offset: 2.035 inch.
• Service caliper: Forged Narrow Superlite 4R; 4 pistons; stainless piston material. Radial mounting, red powder coat finish.
• Published piston bores: 1.12, 1.12 inches. Supplied pad compound: BP-10.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Brake hoses are not included. Select suitable braided lines and fittings for the installation.
• Separate electronic parking calipers, controller, wiring harness and switch are included. EPB actuation is electrical; hydraulic service braking remains independent.
• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

Application is controlled by the Big Ford new-style housing flange and a measured 2.50-inch axle offset. The application table lists a 1990 Lincoln Town Car, but the manufacturer does not currently confirm that model application. Do not order for a Town Car by year/model alone; verify the housing-end drawing, bearing retainer and offset first. Check axle-flange diameter, wheel seating, wheel profile and EPB motor clearance through suspension travel. The electronic parking system is for stationary parking hold, not an emergency stop brake. Mounting brackets must allow both service and parking calipers to clear the body and suspension. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

PMB Performance has over 20 years of experience working with parts and fitment details. Provide the actual brake hardware, mounting dimensions and wheel measurements when requesting help with this conversion.

Manufacturer documentation: Installation instructions; Technical bulletin.
