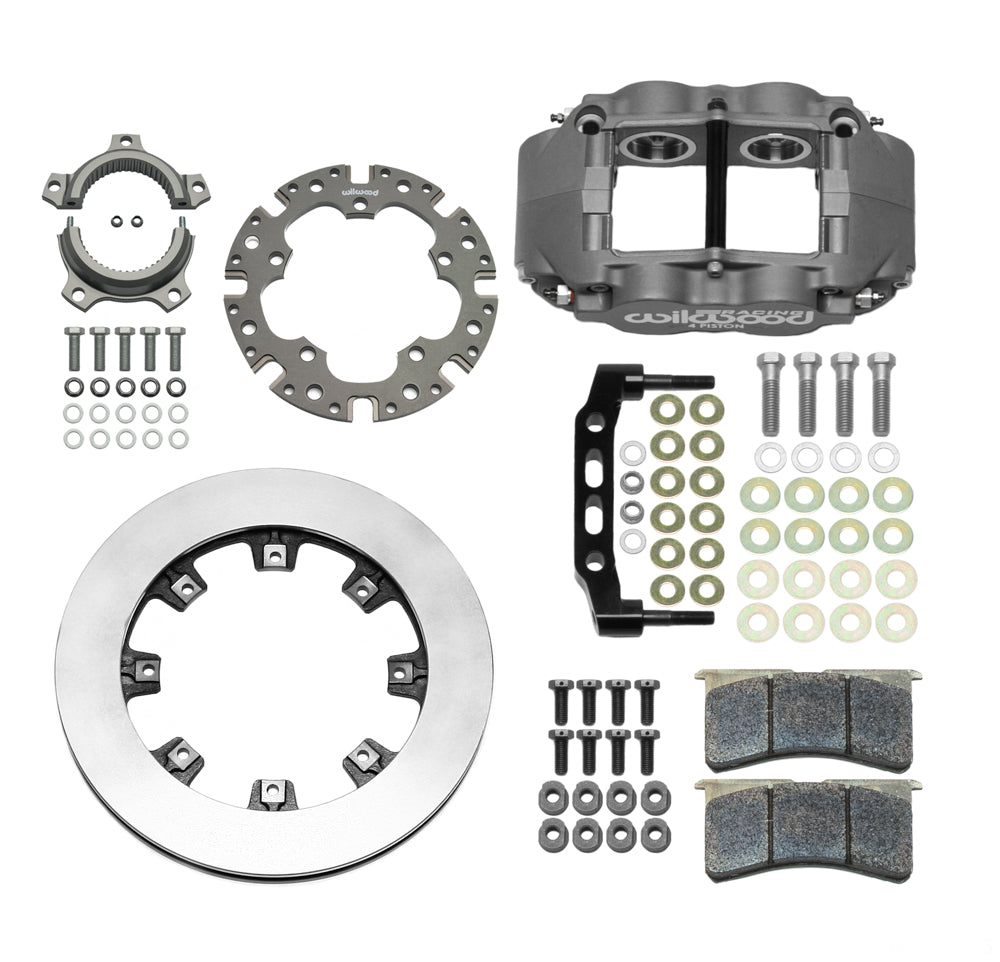

Wilwood Superlite 4 Radial rear brake kit, sprint racing, 12.19-inch plain rotors: Parts layout with one gray anodized Superlite caliper, one vented rotor ring, splined axle clamp/adapter parts, radial bracket, pads and fasteners.

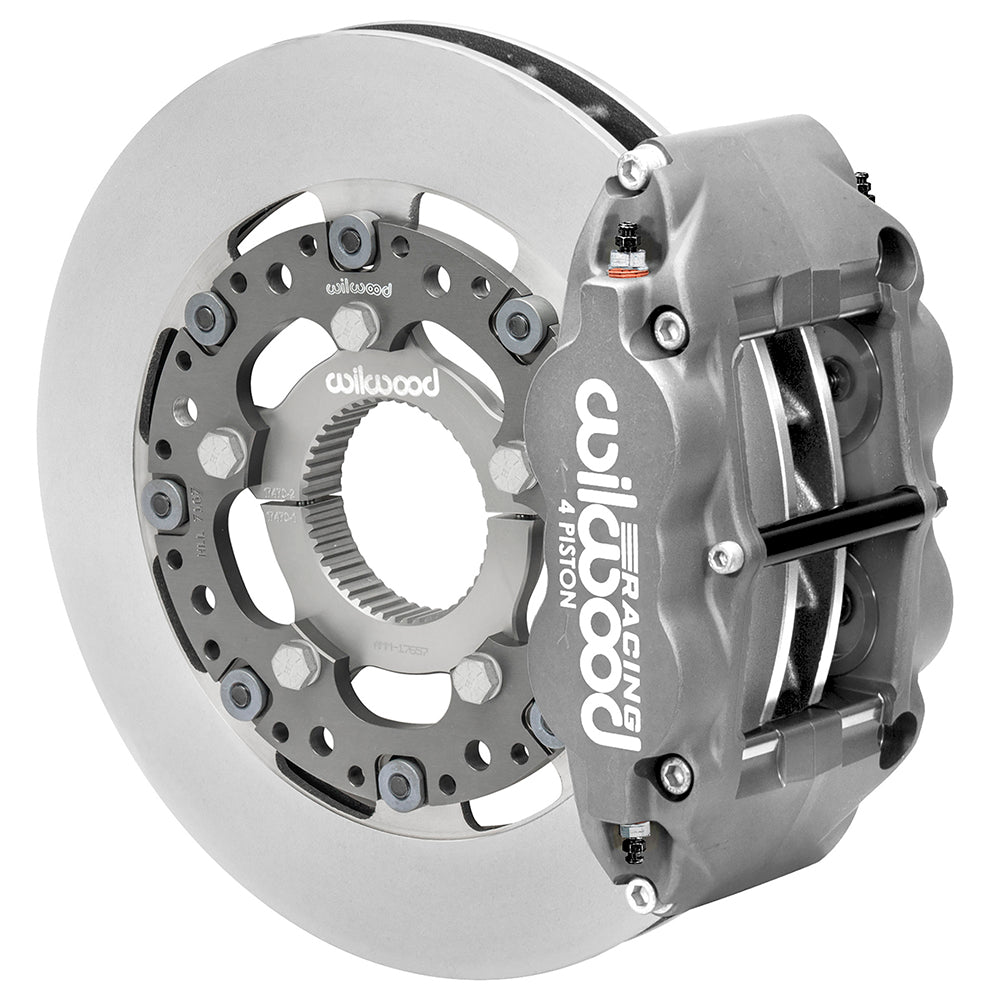

Wilwood Superlite 4 Radial rear brake kit, sprint racing, 12.19-inch plain rotors: Inboard assembly view with gray Superlite caliper, vented rotor and central splined adapter/clamp.
Wilwood Superlite 4 Radial rear brake kit, sprint racing, 12.19-inch plain rotors: Parts layout with one gray anodized Superlite caliper, one vented rotor ring, splined axle clamp/adapter parts, radial bracket, pads and fasteners.
Wilwood Superlite 4 Radial rear brake kit, sprint racing, 12.19-inch plain rotors: Inboard assembly view with gray Superlite caliper, vented rotor and central splined adapter/clamp.

Wilwood Rear Inboard Sprint Brake Kit, Forged Superlite 4 Radial Caliper and 12.19-Inch Vented Rotor for 3-Inch 46-Spline Axles

SKU: 140-15815

$990.79 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

This rear inboard sprint assembly combines a four-piston Forged Superlite radial caliper with a 12.19 × 1.25-inch vented rotor and dynamic rotor-adapter hardware. Its clamp arrangement is intended for a 3.00-inch, 46-spline sprint axle and a sidebell with 3.50-inch mounting centers. BP-40 pads and Thermlock pistons belong to this racing configuration; road-car model or axle-family names do not establish compatibility. Wilwood Engineering was established in 1977 by Bill Wood in Camarillo, California. The company designs and manufactures disc-brake systems and components, from calipers and rotors to master cylinders, valves, fittings and brake lines, for motorsport, street-performance and specialized installations. Each component must match the rest of the brake system.

Technical Details

  • Manufacturer part number: 140-15815. Quantity: one kit for the stated axle/application.
  • Brake hoses are not included. Select suitable braided lines and fittings for the installation.
  • Service caliper: Forged Superlite 4 Radial Mount; 4 pistons; Thermlock piston material. Radial mounting, Type III Anodize finish.
  • Published piston bores: 1.88, 1.75 inches. Supplied pad compound: BP-40.
  • Rotor specification: 12.19-inch outside diameter × 1.25-inch thickness; plain faces. Iron construction; ULtralite 32 Curved Vane design; published vane configuration: 32 CV.
  • Supplied hub assembly: Sprint Inboard Hub Kit - Dynamic, aluminum, Type III Anodize finish.
  • Inboard axle/hub interface: 3.00-inch axle with 46 splines; sidebell mounting centers: 3.50 inches.
  • Includes the dynamic inboard rotor axle-clamp/adapter arrangement, radial mounting bracket assembly, pads and mounting hardware. Master cylinder, brake booster and brake lines are not supplied.

Fitment & Compatibility

Race only; not for street use. The installation sheet specifies a standard inboard sprint sidebell with 3.50-inch mounting centers and a 3.00-inch, 46-spline axle. Position the dynamic rotor adapter and axle clamp exactly as documented. The supplied 12.19-inch rotor is vented iron. No passenger-car fitment is established.

PMB Performance has over 20 years of experience working with parts and fitment details. Provide the actual brake hardware, mounting dimensions and wheel measurements when requesting help with this conversion.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.
