Wilwood Front TX6R Truck Brake Kit for Ram 1500 RWD (2013–2018), Black Calipers, 16-Inch GT Rotors and Flexlines

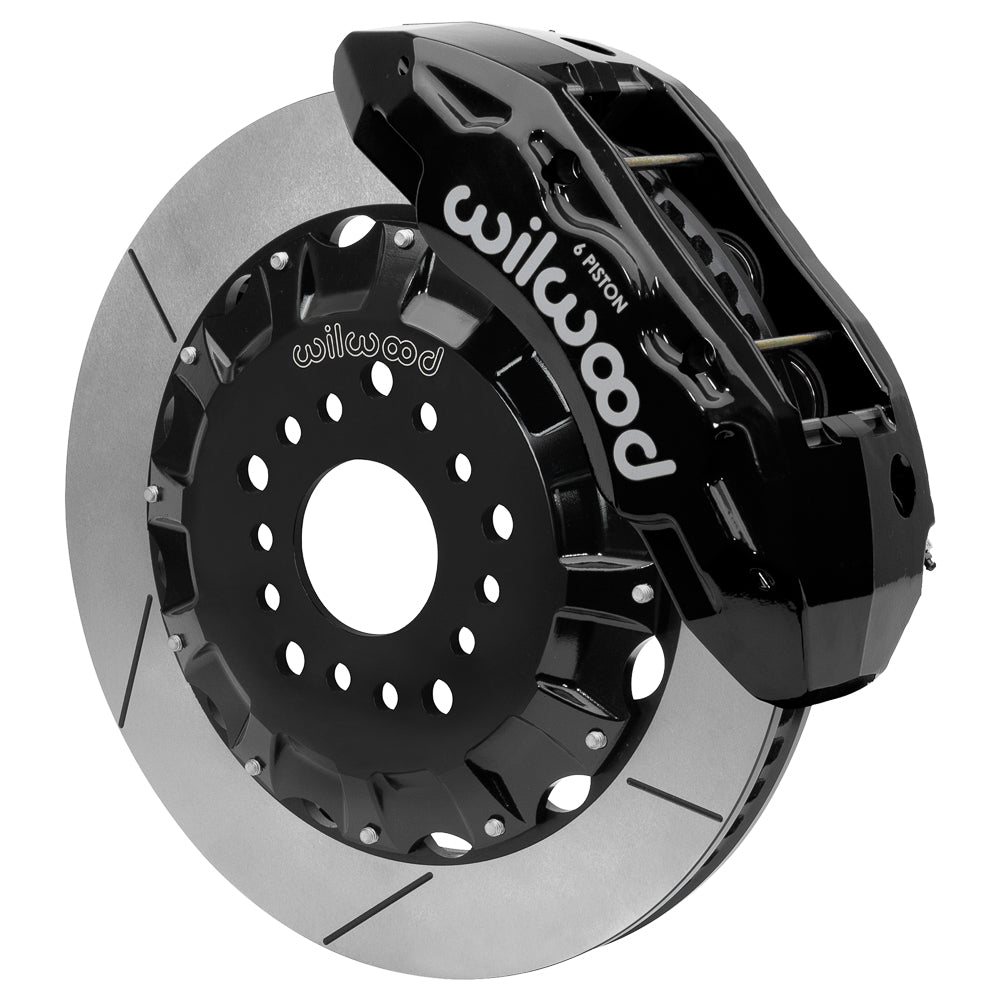

This TX6R front conversion is the rear-wheel-drive Ram 1500 package with black six-piston calipers and 16.00-inch GT slotted rotors. The thick vented rotor rings, BP-22 pads and dedicated braided flexlines are selected for the documented truck brake arrangement. It is not the separate four-wheel-drive kit. Confirm the RWD trim entry and clearance behind a suitable 20-inch or larger wheel before ordering. Wilwood Engineering, founded by Bill Wood in 1977, designs and manufactures disc brake systems from its Camarillo, California base. Motorsport, street-performance and specialized applications use its calipers, rotors, master cylinders, valves, fittings and brake lines. Correct component selection depends on the requirements of the entire braking system.

Technical Details

• Manufacturer part number: 140-15807. Quantity: one kit for the stated axle/application.
• Rotor specification: 16.00-inch outside diameter × 1.38-inch thickness; GT slotted faces. Iron construction; GT 72 Staggered Vane design; published vane configuration: 72 SV.
• Service caliper: TX6R; 6 pistons; stainless piston material. Radial mounting, black powder coat finish.
• Rotor hats: aluminum, black e-coat finish; Truck Hat - Standard. Hat offset: 1.180 inch.
• No replacement wheel hubs are supplied; retain or provide the documented matching hub arrangement.
• Wheel mounting patterns: 5 x 4.75; 5 x 5.00; 5 x 5.50 inches.
• Published piston bores: 1.75, 1.62, 1.62 inches. Supplied pad compound: BP-22.
• Caliper hydraulic inlet: 1/8-27 NPT.
• Included braided flexline kit: 220-15806 (10.00 in). Confirm the chassis fitting and routing for the actual installation.
• Minimum nominal wheel diameter: 20 inches. The wheel must also clear the actual caliper and rotor profile in the installation drawing.

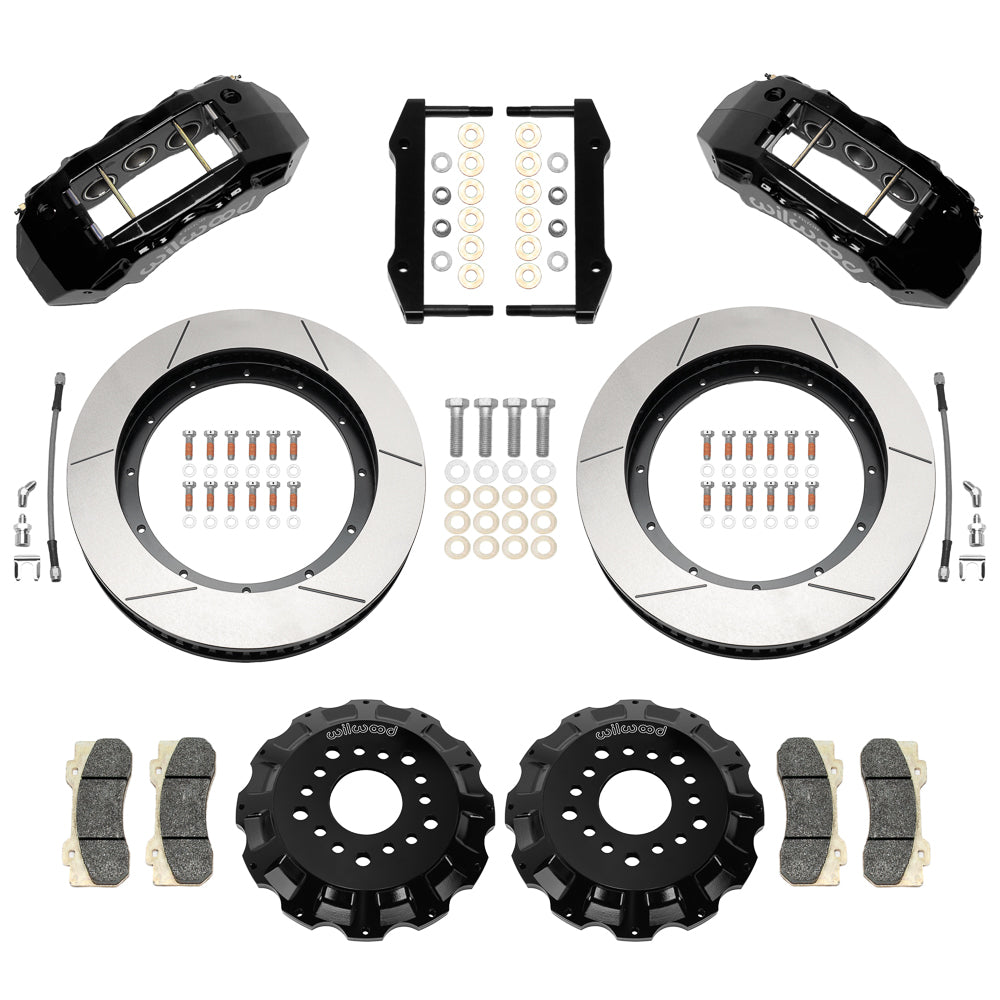

• Mounting hardware and the specified pads are included. Spindles, master cylinder and brake booster are not supplied.

Fitment & Compatibility

This is the 2013–2018 Ram 1500 rear-wheel-drive application, with narrower and interrupted year spans for some trims. The related 4WD package is a different kit. Match the RWD entry, retained factory hubs and wheel-bolt pattern; the selected hat is drilled 5 × 5.50 inches. Check the complete wheel envelope and route the supplied flexlines for steering and suspension movement. Use the complete application table below for the individual year, submodel, brake configuration and note attached to each entry.

Ask PMB Performance to review the brake configuration if the vehicle has been modified. Our 20+ years of parts and fitment experience help identify the axle, spindle and wheel details that need to match before the kit is selected.

Manufacturer documentation: Installation instructions.

Manufacturer Warning

Applicable to brake pads only: Wilwood warns of exposure to arsenic, cadmium, hexavalent chromium compounds, lead, nickel, cobalt and antimony trioxide, chemicals known to California to cause cancer or reproductive harm. More information: P65Warnings.ca.gov.
