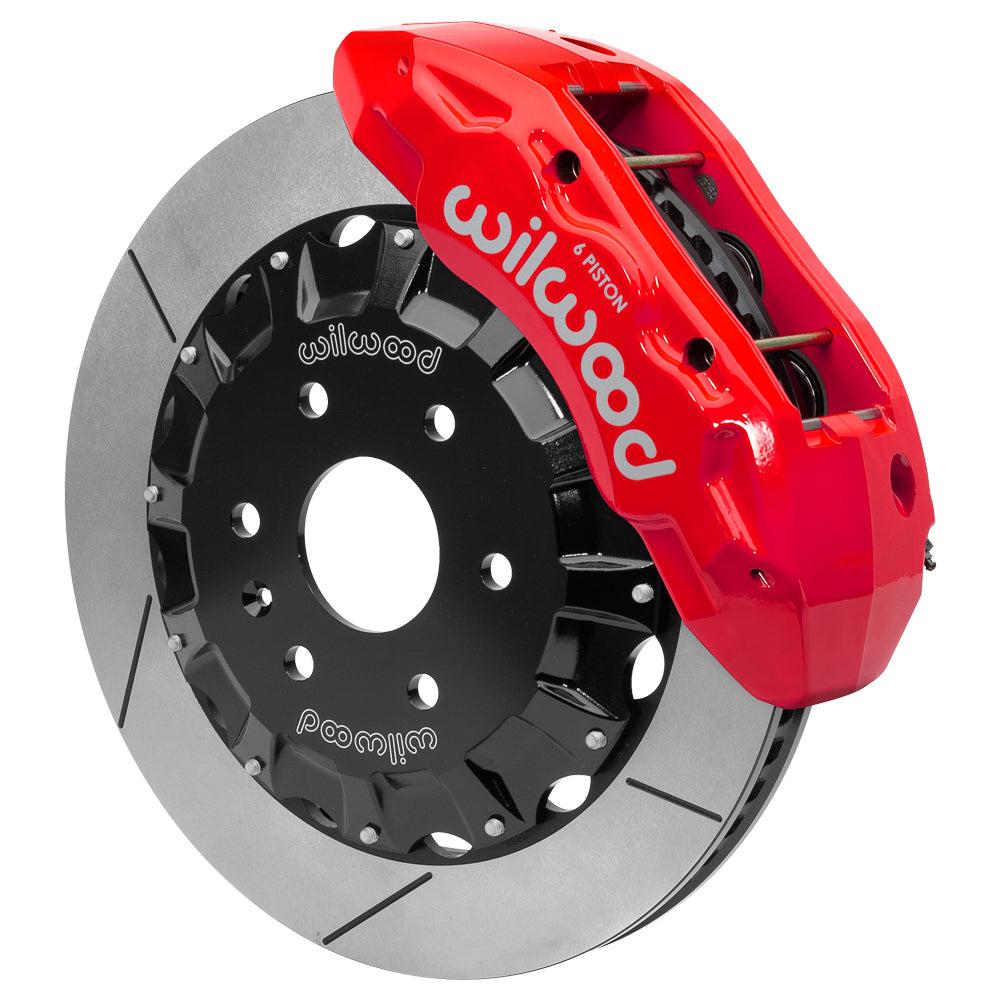

Wilwood 16-Inch Front Disc Brake Conversion with Red TX6R Calipers for Listed Silverado/Sierra and GM Full-Size SUV Applications

Red TX6R calipers and 16-inch Spec37 rotors suit listed GM truck/SUV front axles. Check the exact year, trim, wheel clearance and upright. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15729-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc

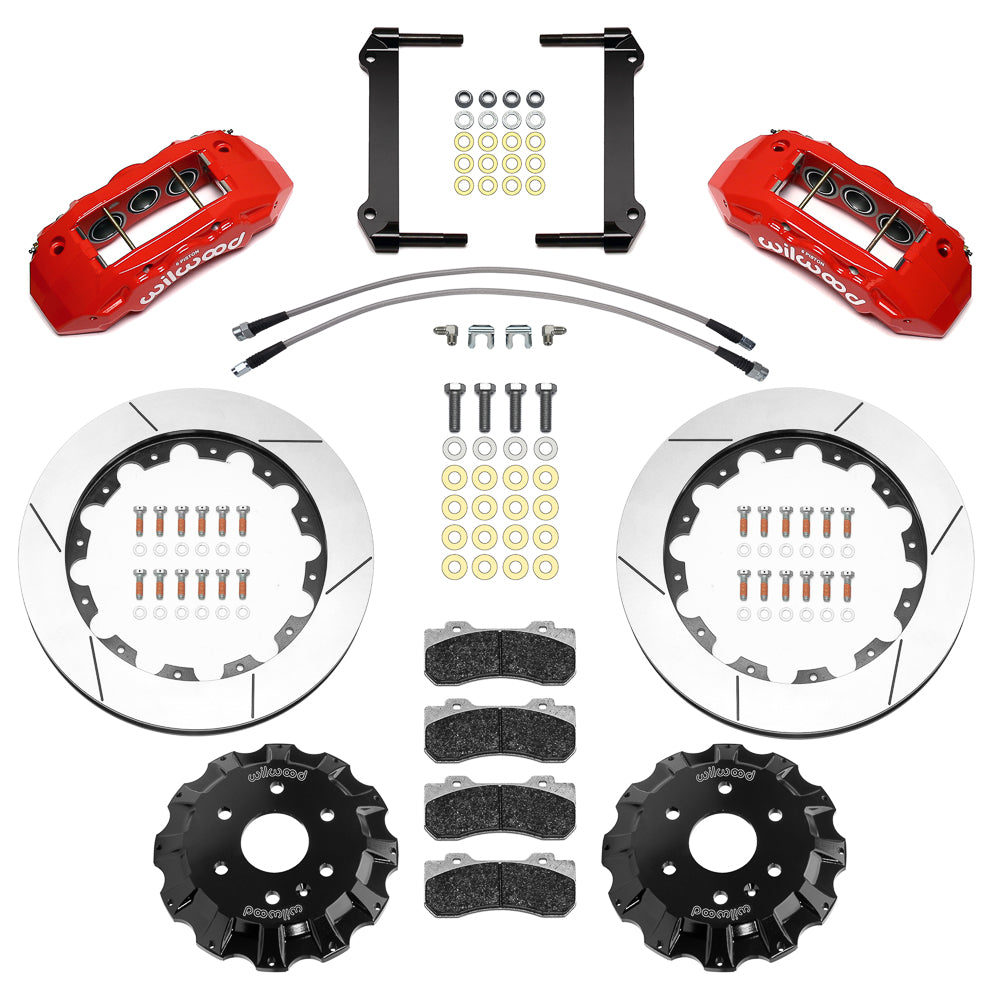

• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 20 in; 508 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: TX6R
• Pad compound: BP-22
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 16.00 in; 406.4 mm
• Rotor Thickness: 1.38 in; 35.05 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 6 x 5.5 in; 6 x 139.7 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.630 in; 16.00 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 60 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 0.670 in

Fitment & Compatibility

The supplied front applications distinguish 2019–2026 Silverado/Sierra 1500 trucks, the specifically listed 2022 LTD/Limited models, and 2021–2026 full-size SUVs. Escalade/ESV, Suburban, Tahoe and Yukon/XL retain their individual trims and year limits; Escalade-V starts in its separately listed years. Do not apply the truck start year to every SUV. Six-piston TX6R calipers use BP-22 pads and 16.00 × 1.38-inch Spec37 GT rotors with separate hats. Front hose kit 220-10979 is included. DS-1337 requires dust-shield trimming to the illustrated clearance profile, approximately 11.38 inches in diameter. Inspect aftermarket upright mounting lugs where applicable before assembly. Check the six-on-5.50-inch interface and wheel template; nominal minimum diameter is 20 inches.

Listed models: Silverado 1500; Sierra 1500; Escalade; Escalade ESV; Suburban; Tahoe; Yukon; Yukon XL; Silverado 1500 LTD; Sierra 1500 Limited. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
