Wilwood Slotted 14-Inch Front Package with Red SX6R Calipers and ProMatrix Pads for 2014–2019 Corvette C7 Applications

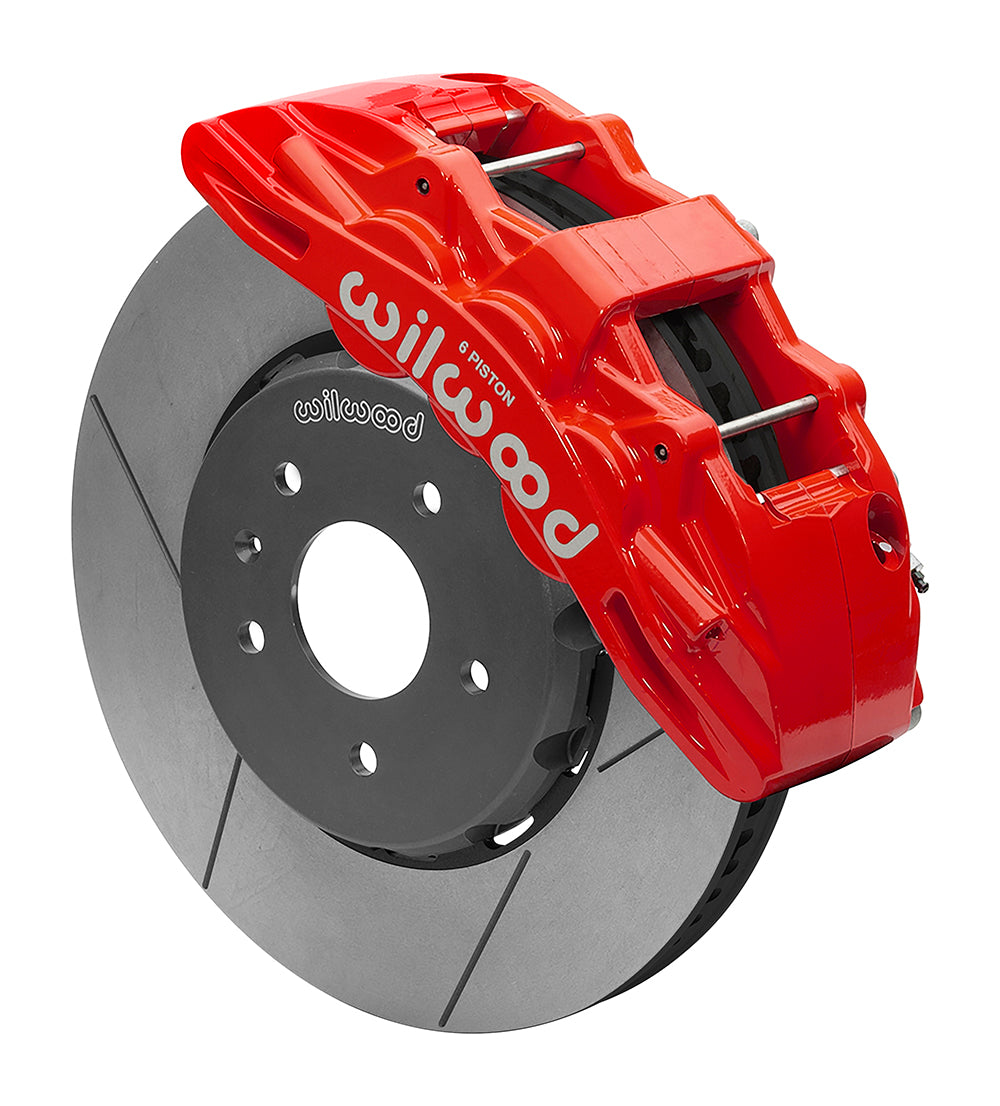

For the documented C7 brake package, red SX6R calipers pair with slotted dynamic lug-drive rotors. Enlarge the original hose-bracket opening as instructed. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15722-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc

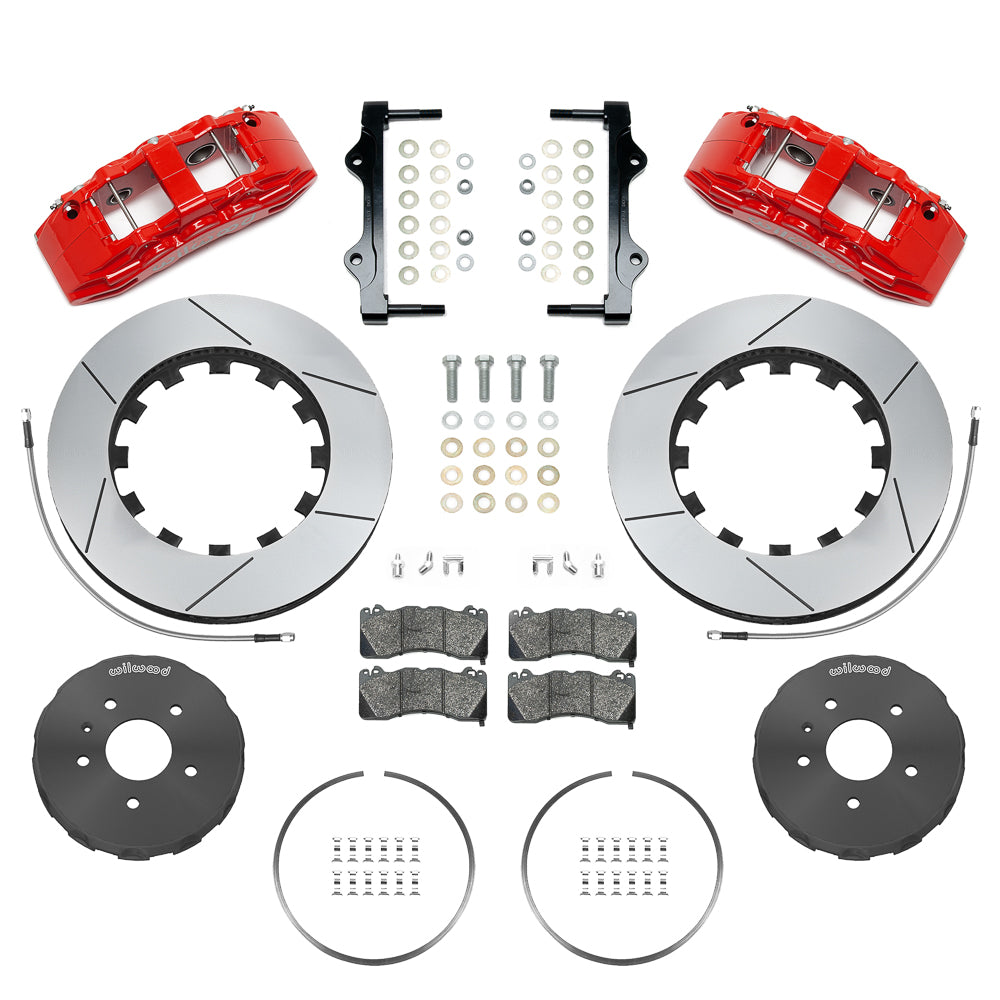

• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: PM - ProMatrix
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.75 in; 5 x 120.65 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.518 in
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

Keep the Corvette C7 year/trim limits separate: Stingray is listed for 2014–2019, Z51 for 2014–2016, Z06 for 2015–2019, Grand Sport for 2017–2019 and ZR1 for 2019. Do not assign a later trim to the entire 2014–2019 span. SX6R six-piston calipers use 14.00 × 1.25-inch dynamic lug-drive rotor rings and separate hard-anodized aluminum hats. Slotted versions use ProMatrix pads; drilled-and-slotted versions use BP-10. Front hose kit 220-9100 is included, and DS-1338 requires enlarging the original hose-bracket opening to 0.625 inch. Check the original brake configuration, hub attachment and actual wheel with the 18-inch minimum guidance and clearance drawing.

Listed models: Corvette. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
