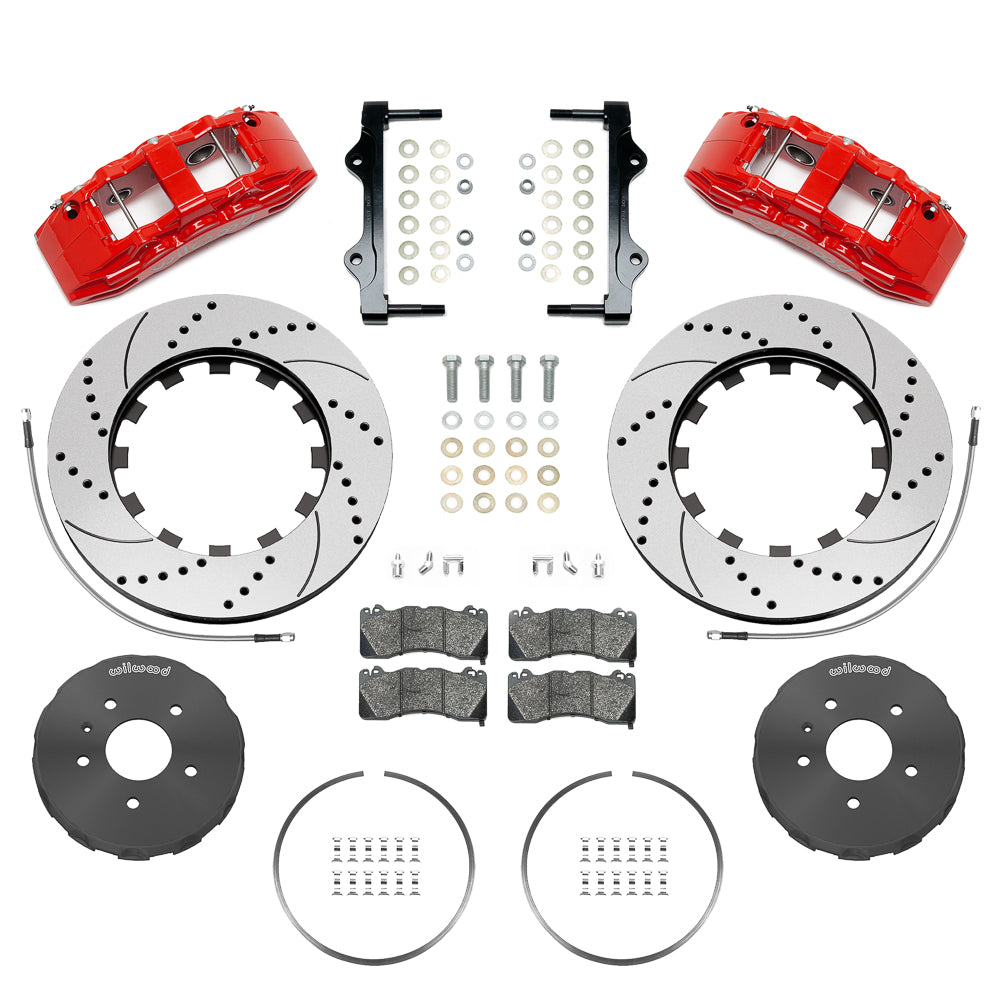

Wilwood Red SX6R Front Brakes for Listed Corvette C7 Models with 14-Inch Drilled-and-Slotted Rotors

Red six-piston calipers and drilled lug-drive rotors suit the listed C7 configurations. Check separate Stingray, Z51, Z06, Grand Sport and ZR1 year limits. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15722-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.75 in; 5 x 120.65 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.518 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: BP-10

Fitment & Compatibility

Keep the Corvette C7 year/trim limits separate: Stingray is listed for 2014–2019, Z51 for 2014–2016, Z06 for 2015–2019, Grand Sport for 2017–2019 and ZR1 for 2019. Do not assign a later trim to the entire 2014–2019 span. SX6R six-piston calipers use 14.00 × 1.25-inch dynamic lug-drive rotor rings and separate hard-anodized aluminum hats. Slotted versions use ProMatrix pads; drilled-and-slotted versions use BP-10. Front hose kit 220-9100 is included, and DS-1338 requires enlarging the original hose-bracket opening to 0.625 inch. Check the original brake configuration, hub attachment and actual wheel with the 18-inch minimum guidance and clearance drawing.

Listed models: Corvette. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.
