Wilwood Black SX6R and BP-10 Front Brake Package for Listed Corvette C7 Applications with 14-Inch Drilled Dynamic Lug-Drive Rotors

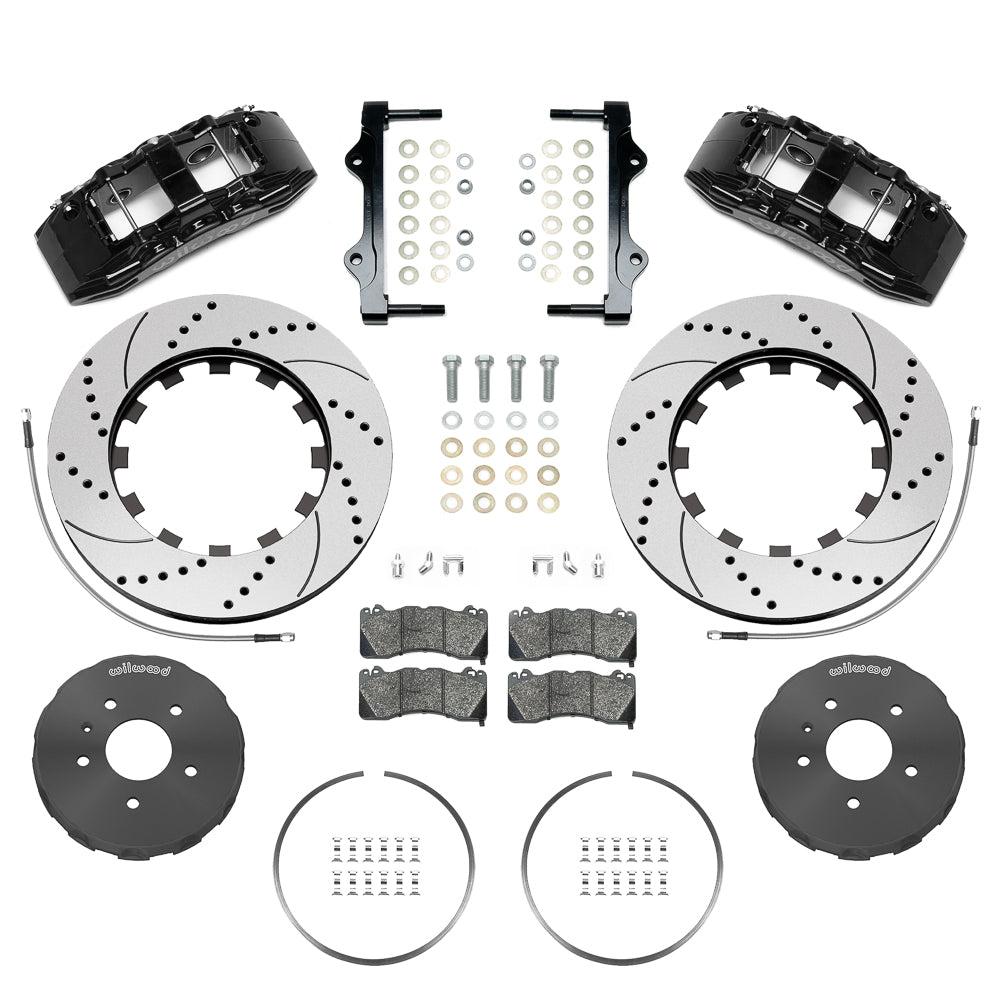

Black SX6R calipers, drilled rotors, BP-10 pads and hoses form this C7 front kit. Verify the exact year, trim, original brakes and wheel drawing. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15722-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.75 in; 5 x 120.65 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.518 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

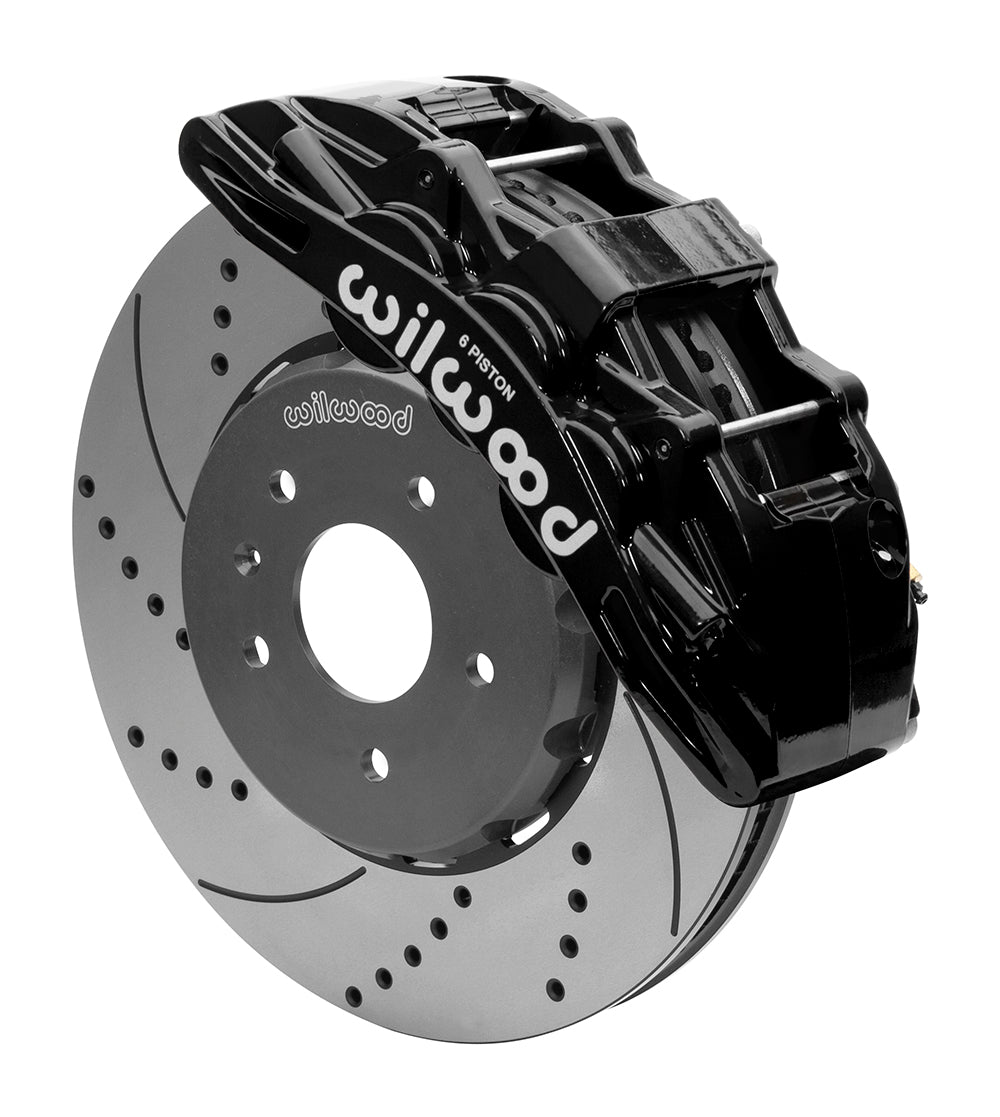

Keep the Corvette C7 year/trim limits separate: Stingray is listed for 2014–2019, Z51 for 2014–2016, Z06 for 2015–2019, Grand Sport for 2017–2019 and ZR1 for 2019. Do not assign a later trim to the entire 2014–2019 span. SX6R six-piston calipers use 14.00 × 1.25-inch dynamic lug-drive rotor rings and separate hard-anodized aluminum hats. Slotted versions use ProMatrix pads; drilled-and-slotted versions use BP-10. Front hose kit 220-9100 is included, and DS-1338 requires enlarging the original hose-bracket opening to 0.625 inch. Check the original brake configuration, hub attachment and actual wheel with the 18-inch minimum guidance and clearance drawing.

Listed models: Corvette. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
