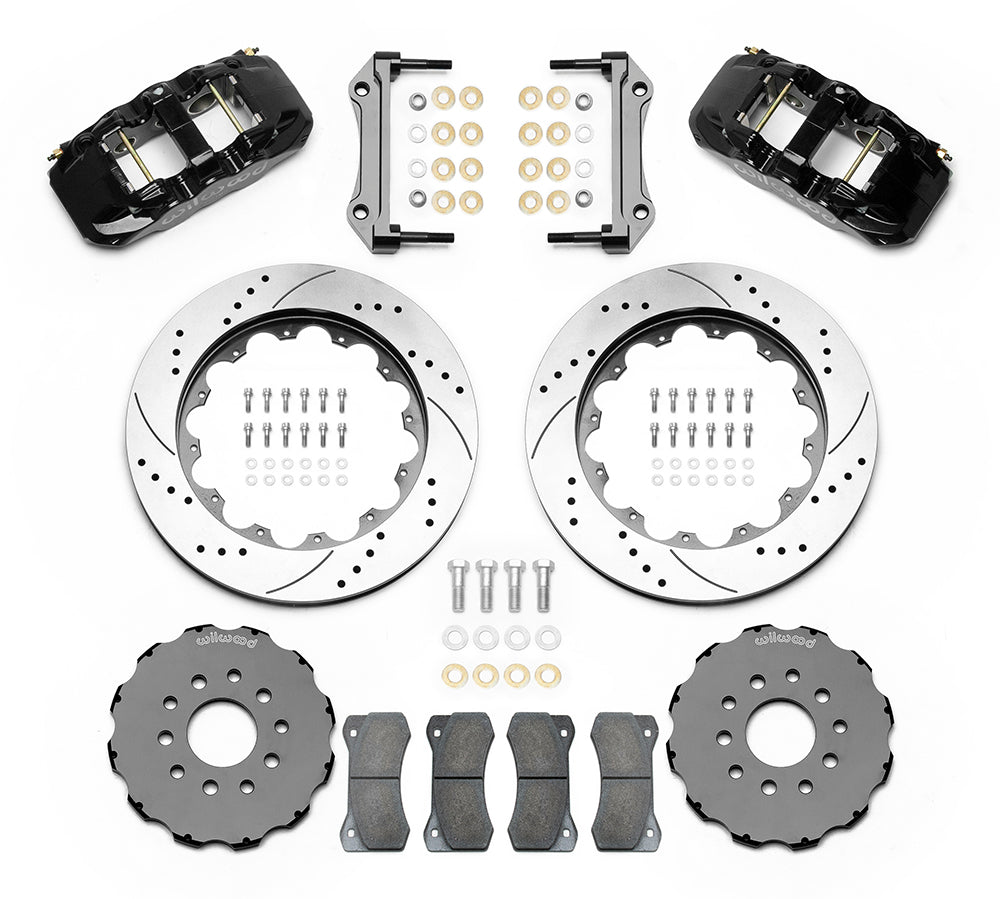

Wilwood 14-Inch Drilled Front Disc Brake Conversion with Black AERO6 Calipers for C5/C6 Corvette, XLR and Specified Hub Spindles

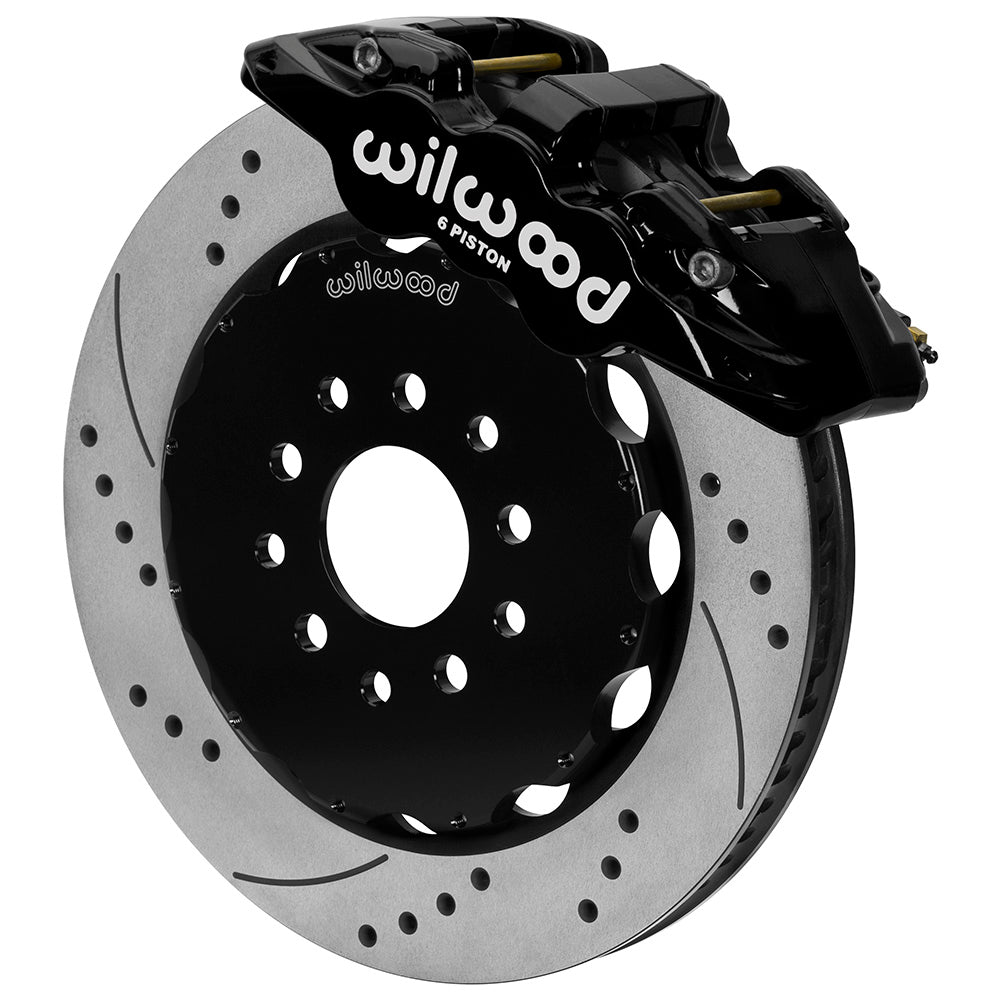

Black six-piston calipers pair with drilled 14-inch rotors. Confirm listed Corvette/XLR front fitment or the required Ridetech hub-spindle conversion. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15705-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No; separate front references: C5 220-8176, C6 220-9100; converted applications require verified routing/220-12168 selection
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.520 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 0.290 in

Fitment & Compatibility

Direct listed front applications include Corvette C5/C6 for 1997–2013 and Cadillac XLR for 2004–2009, with each trim/year condition retained in the table. The older listed GM vehicles, spanning selected 1962–1982 applications, require the stated Ridetech hub-spindle conversion; those entries do not establish stock-spindle compatibility. Six-piston AERO6 calipers work with 14.00 × 1.25-inch Spec37 rotors and separate hats. Slotted versions use BP-20 pads, drilled-and-slotted versions BP-10. Flexlines are separate: 220-8176 is the C5 front reference and 220-9100 the C6 front reference; the 220-12168 reference for converted applications must be checked against the actual chassis, ends and routing. Confirm the hub interface and the wheel drawing, using 18 inches only as minimum diameter guidance.

Listed models: Chevy II; Corvette; Skylark; Special; Sportwagon; Chevelle; El Camino; 442; Cutlass; F85; Vista Cruiser; Beaumont; GTO; LeMans; Tempest; Gran Sport; Camaro; Cutlass Supreme; Firebird; GS 350; GS 400; Nova; GS; GS 455; Sprint; Ventura; Apollo; Omega; XLR. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
