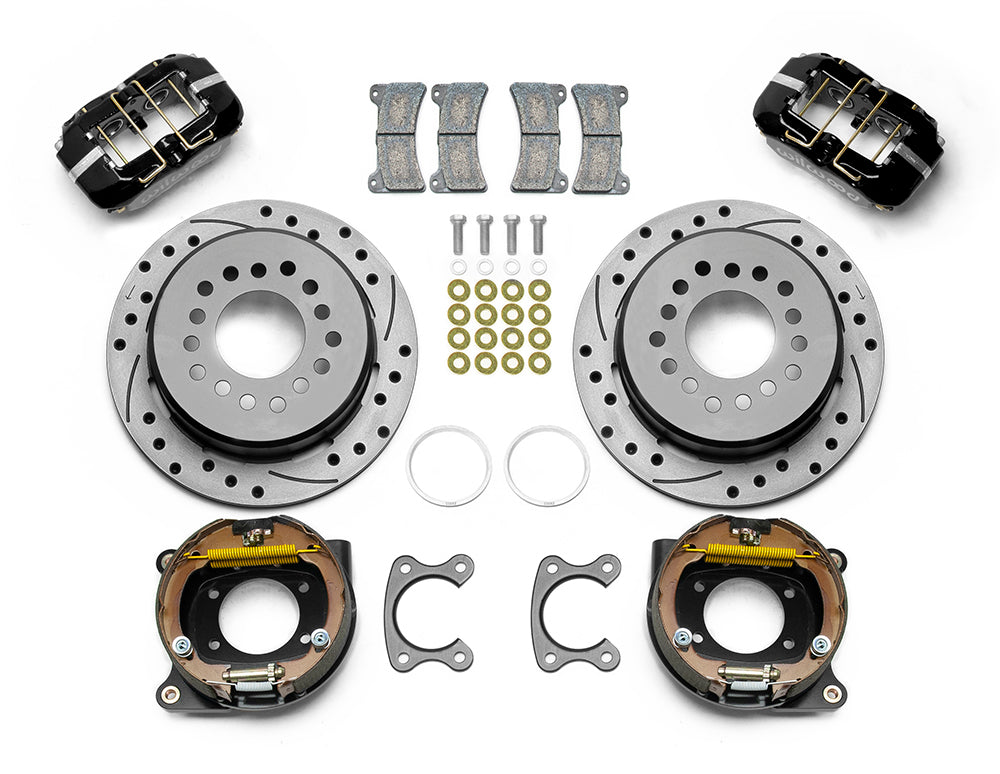

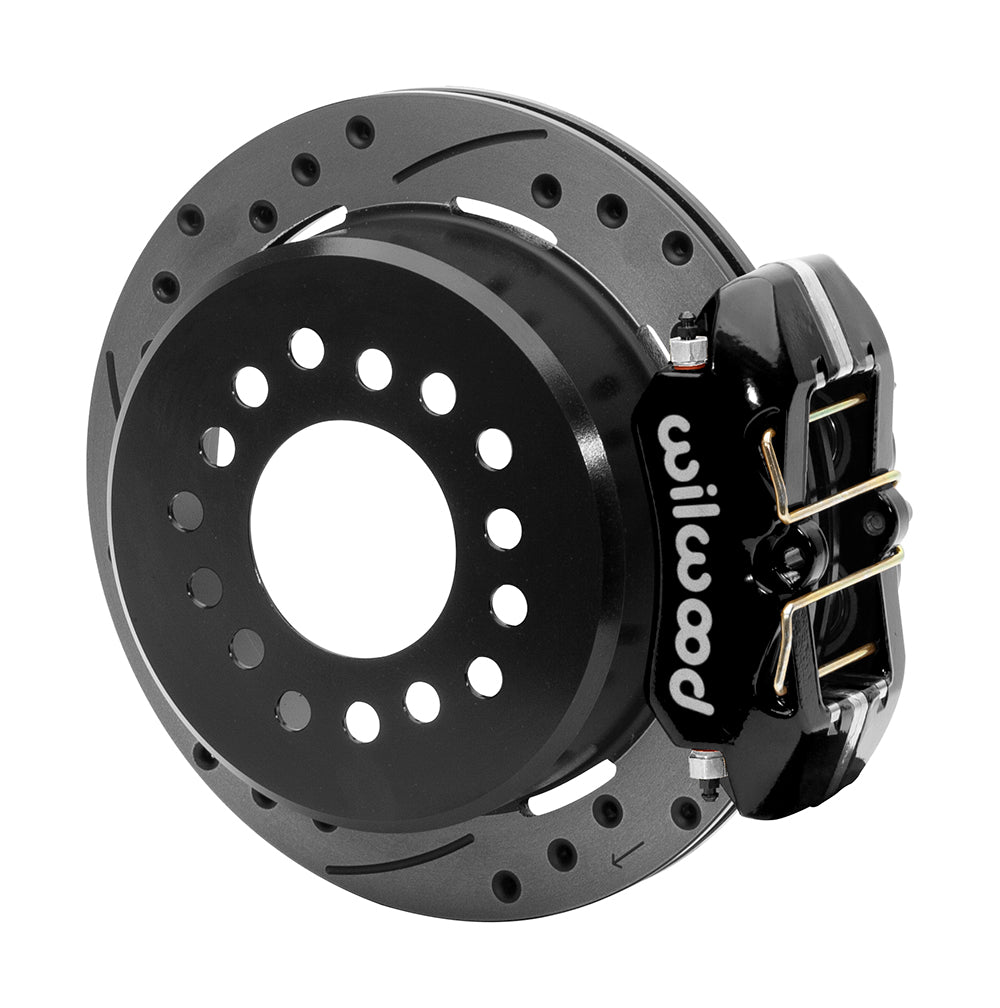

Wilwood Drilled 11-Inch Rear Conversion with Black Low-Profile Calipers for Small Ford 2.50-Inch Axle Offset

Small Ford 2.50-offset rear brakes combine black low-profile calipers, drilled 11-inch rotors and parking shoes. Check the axle register and hose route. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15604-D
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Required spindle / rear housing interface: Small Ford
• Required axle-flange offset: 2.50 in; 63.5 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: low-profile Dynapro
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.52 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 32 V

Fitment & Compatibility

Use this version only with the specified Small Ford rear flange and 2.50-inch axle-flange offset, measured between the wheel-side axle-flange face and housing-flange face. Do not confuse it with the 2.66-inch Small Ford or 2.50-inch new-style Big Ford installation. Stock 1990 Lincoln Town Car compatibility is unverified. Inspect the actual axle before relying on the vehicle entry below. Low-profile Dynapro calipers work with 11.00 × 0.81-inch integral-hat iron rotors and included internal parking shoes. Hoses, cables, clevises and adapters are separate. Confirm the specified flange-diameter limit/chamfer and 3.06-inch rotor register, with the supplied 2.80-inch adapter where appropriate. Stud clearance may require rotor-hole machining. Check actual wheel clearance rather than relying on nominal 14-inch guidance.

Listed models: Town Car. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions · Technical bulletin

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
