Wilwood Small Ford Rear Parking Brake Conversion, 2.50-Inch Axle-Flange Offset, with Black Dynapro Calipers and Plain 11-Inch Rotors

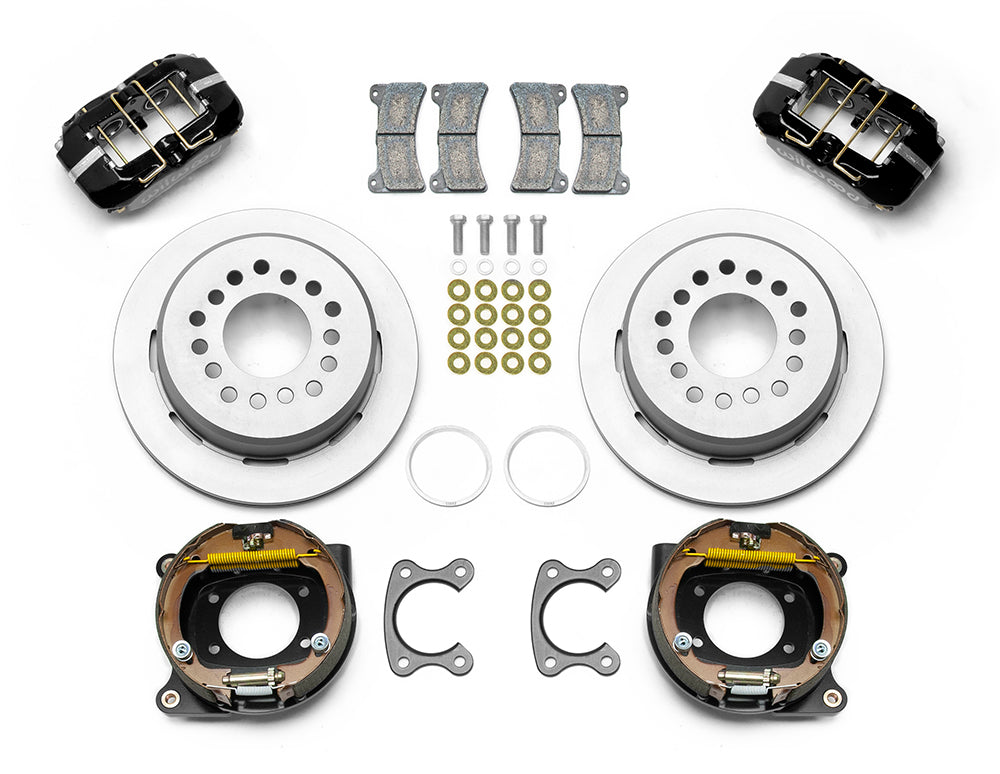

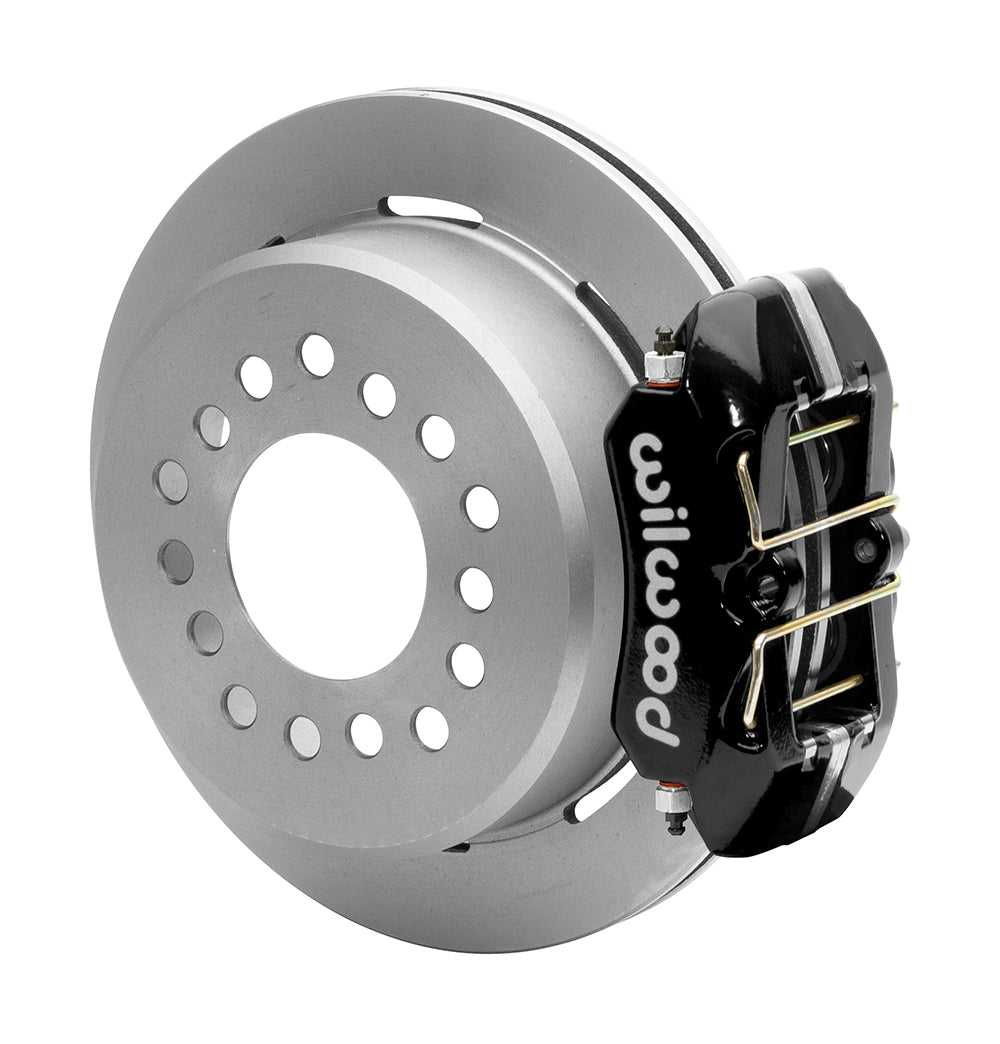

Black four-piston calipers, plain 11-inch rotors and internal parking shoes suit the specified Small Ford axle. Verify the 2.50-inch axle-flange offset. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15604
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.52 in; 13.21 mm
• Rotor surface finish: Plain
• Rotor vane / construction reference: 32 V
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Required spindle / rear housing interface: Small Ford
• Required axle-flange offset: 2.50 in; 63.5 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: low-profile Dynapro
• Pad compound: BP-10

Fitment & Compatibility

For the Small Ford flange with a measured 2.50-inch axle offset, this black low-profile package supplies plain 11.00 × 0.81-inch vented iron rotors with integral parking hats and internal shoes. Measure offset between the wheel-side axle-flange face and housing-flange face. The same nominal offset on a new-style Big Ford axle is a different interface, and the 2.66-inch Small Ford kit is a separate configuration. Stock 1990 Lincoln Town Car compatibility is unverified. Check the actual housing, bearings and register before relying on the vehicle entry below. Parking cables, clevises, adapters and hydraulic hoses must be purchased separately. Verify the specified flange-diameter limit and chamfer, 3.06-inch rotor center and supplied 2.80-inch register ring. Larger studs may require rotor-hole machining. Use the clearance drawing to assess the conditional 14-inch wheel guidance.

Listed models: Town Car. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions · Technical bulletin

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
