Wilwood Plain-Face 11-Inch Rear Parking Kit with Red Calipers for New-Style Big Ford Flanges and 2.50-Inch Offset

Plain 11-inch rotors and red Dynapro calipers suit the new-style Big Ford flange. Match the 2.50-inch axle offset, register and wheel template. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15602-R
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.52 in; 13.21 mm
• Rotor surface finish: Plain
• Rotor vane / construction reference: 32 V
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Required spindle / rear housing interface: Big Ford New Style
• Required axle-flange offset: 2.50 in; 63.5 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: low-profile Dynapro
• Pad compound: BP-10

Fitment & Compatibility

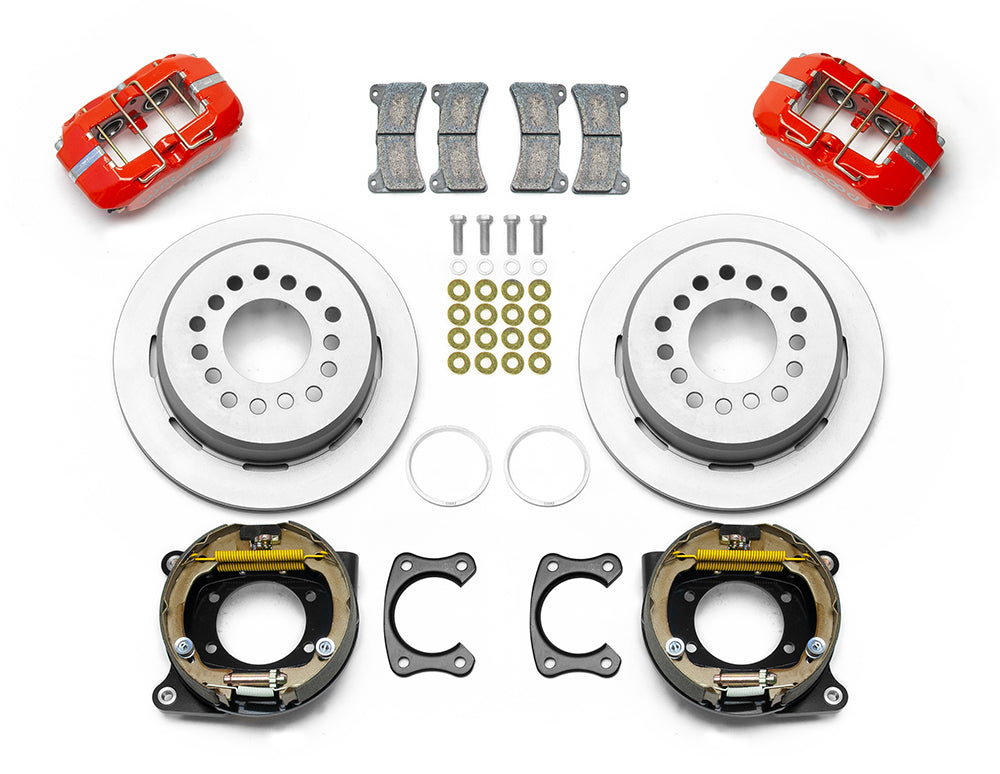

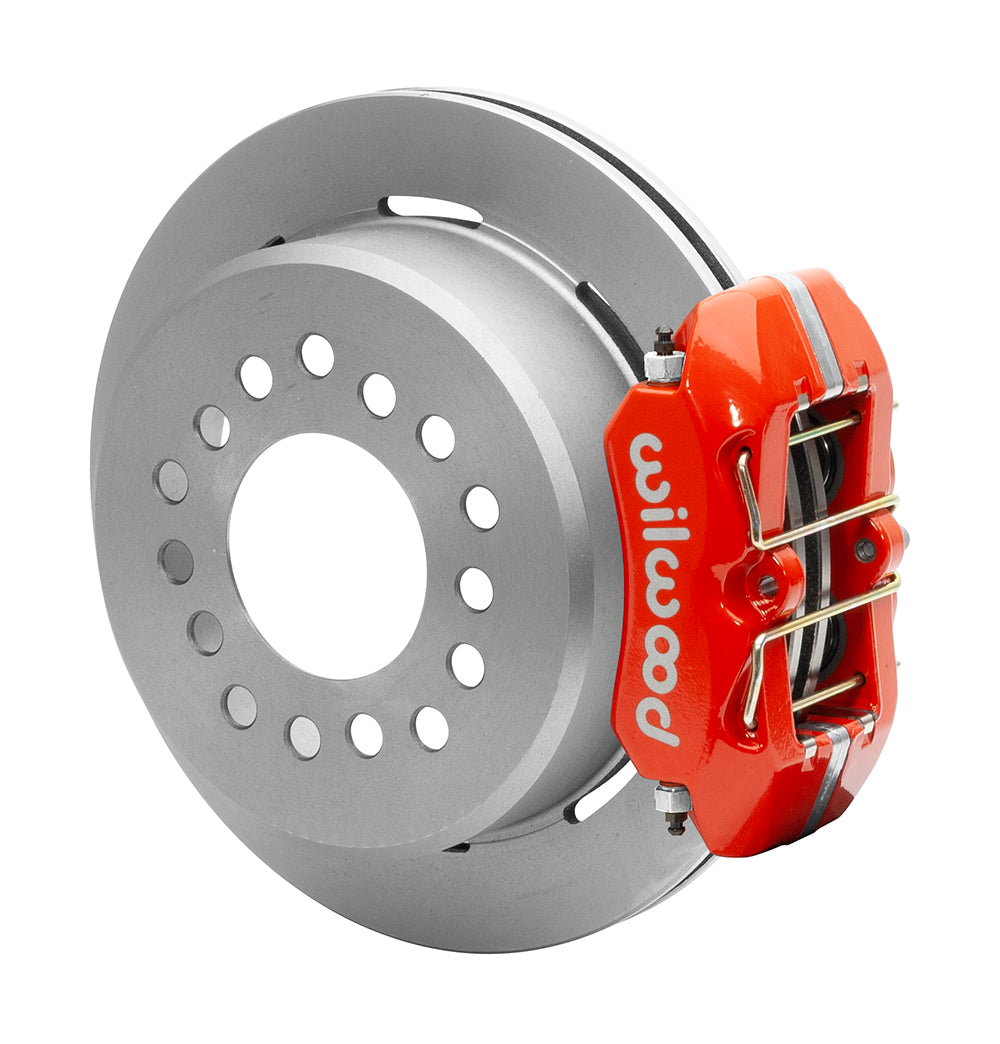

Plain vented rotors and red low-profile Dynapro calipers are combined with internal parking shoes for the new-style Big Ford flange. The axle-flange offset must be 2.50 inches, measured between the wheel-side axle-flange face and housing-flange face; do not substitute rotor-hat offset or another Ford flange type. Stock 1990 Lincoln Town Car fitment is unverified. The vehicle entry below does not establish the installed axle geometry. Cables, clevises, cable adapters and flexlines are purchased separately. Check the flange diameter and chamfer, rotor center opening of 3.06 inches, and supplied 2.80-inch register adapter against the actual axle. Oversize studs can require professional machining of the rotor holes; the listed hole clearance is not a wheel-stud thread. Use the wheel template to evaluate the conditional 14-inch wheel guidance.

Listed models: Town Car. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions · Technical bulletin

Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
