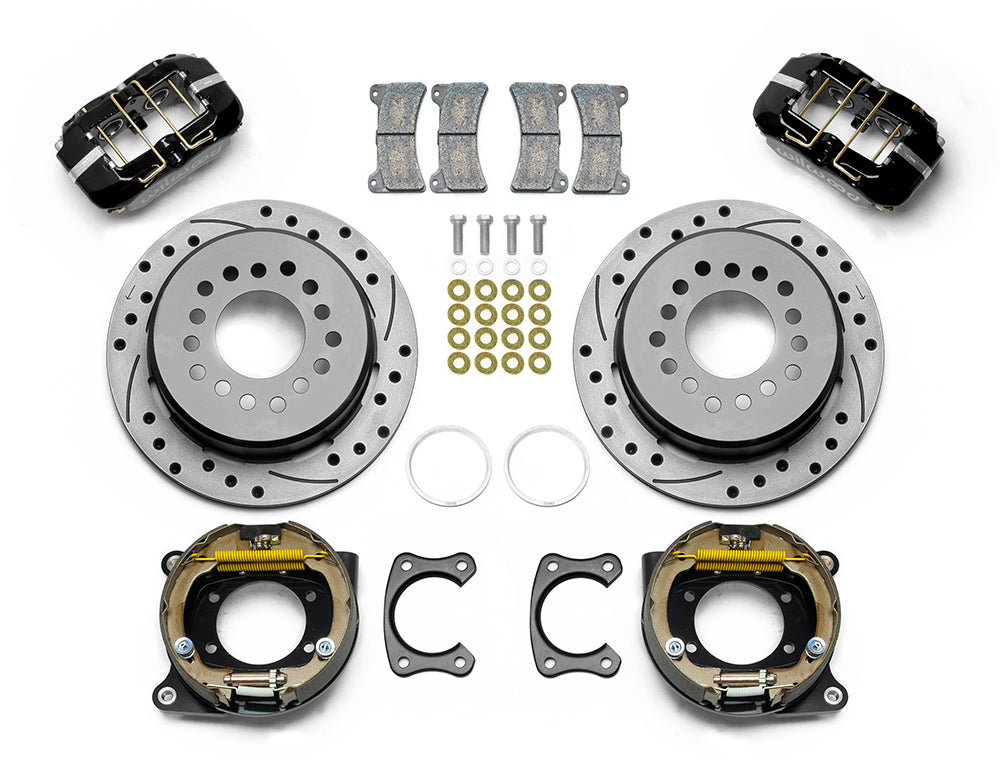

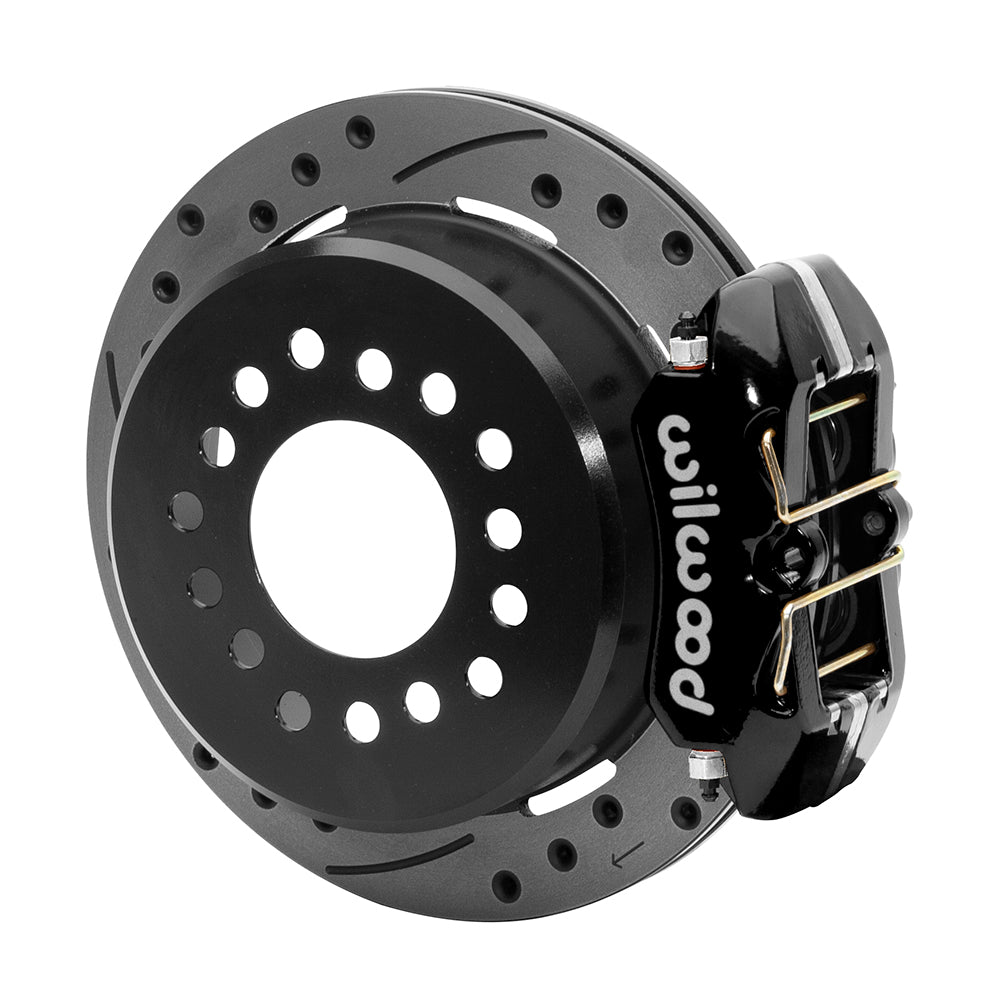

Wilwood 11-Inch Drilled Rear Conversion for New-Style Big Ford Axles with Black Four-Piston Calipers and Parking Shoes

Drilled 11-inch rotors and black calipers require the new-style Big Ford flange and 2.50-inch axle offset. Parking shoes are included; cables are extra. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15602-D
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Required spindle / rear housing interface: Big Ford New Style
• Required axle-flange offset: 2.50 in; 63.5 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: low-profile Dynapro
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.52 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 32 V

Fitment & Compatibility

This kit requires the specified new-style Big Ford rear housing flange with a 2.50-inch axle-flange offset. Measure between the wheel-side axle-flange face and the housing-flange face as the axle worksheet directs; it is not the rotor-hat offset. Stock 1990 Lincoln Town Car compatibility remains unverified. Confirm the actual axle before relying on the vehicle entry below. One-piece 11.00 × 0.81-inch iron rotors contain the parking hats and work with included internal shoes. Cables, clevises, cable adapters and flexlines are separately supplied. Verify flange diameter/chamfer, the 3.06-inch rotor center and the supplied 2.80-inch register adapter. Studs larger than the clearance holes may require machining. Nominal 14-inch wheel guidance remains conditional on the drawing.

Listed models: Town Car. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions · Technical bulletin

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
