Wilwood Black Dynapro Rear Parking Brake Kit for New-Style Big Ford Flanges, 2.50-Inch Offset, 11-Inch Plain Rotors

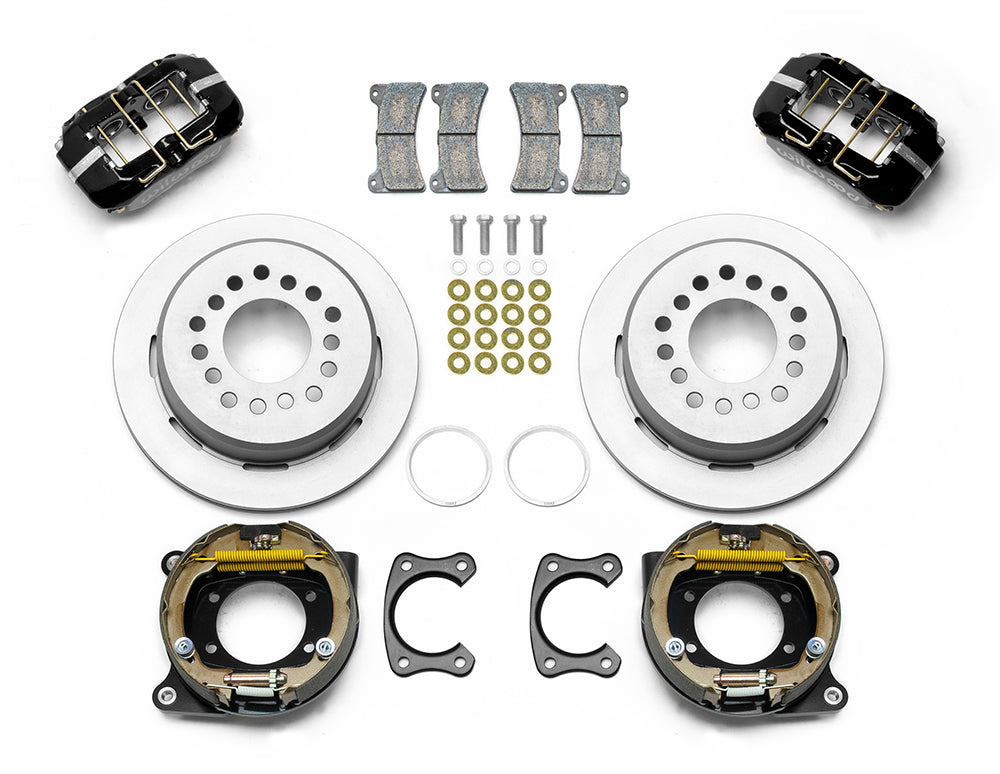

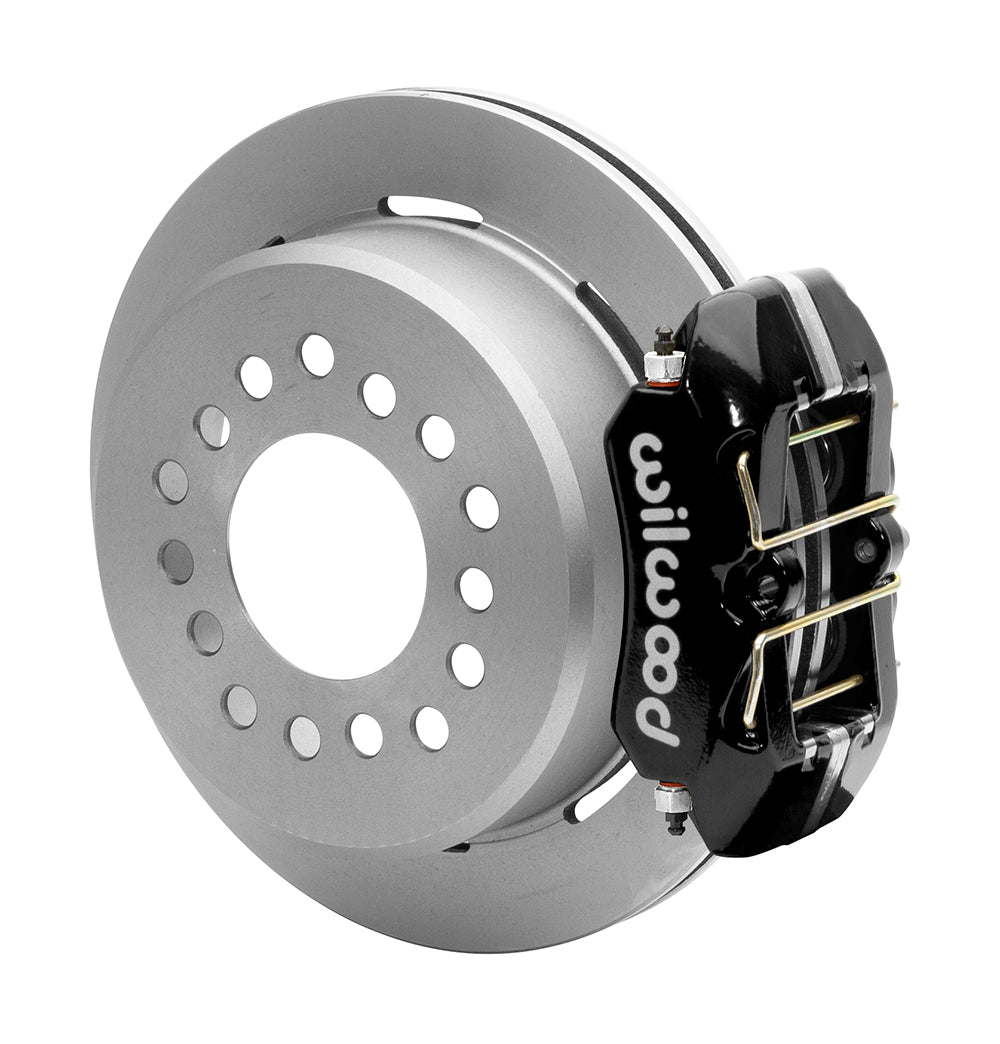

Black Dynapro calipers, plain 11-inch rotors and parking shoes suit the new-style Big Ford flange. Confirm the 2.50-inch axle-flange offset. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15602
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.52 in; 13.21 mm
• Rotor surface finish: Plain
• Rotor vane / construction reference: 32 V
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Required spindle / rear housing interface: Big Ford New Style
• Required axle-flange offset: 2.50 in; 63.5 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: low-profile Dynapro
• Pad compound: BP-10

Fitment & Compatibility

This kit requires the specified new-style Big Ford rear housing flange with a 2.50-inch axle-flange offset. Measure between the wheel-side axle-flange face and the housing-flange face as the axle worksheet directs; it is not the rotor-hat offset. Stock 1990 Lincoln Town Car compatibility remains unverified. Confirm the actual axle before relying on the vehicle entry below. One-piece 11.00 × 0.81-inch iron rotors contain the parking hats and work with included internal shoes. Cables, clevises, cable adapters and flexlines are separately supplied. Verify flange diameter/chamfer, the 3.06-inch rotor center and the supplied 2.80-inch register adapter. Studs larger than the clearance holes may require machining. Nominal 14-inch wheel guidance remains conditional on the drawing.

Listed models: Town Car. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions · Technical bulletin

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
