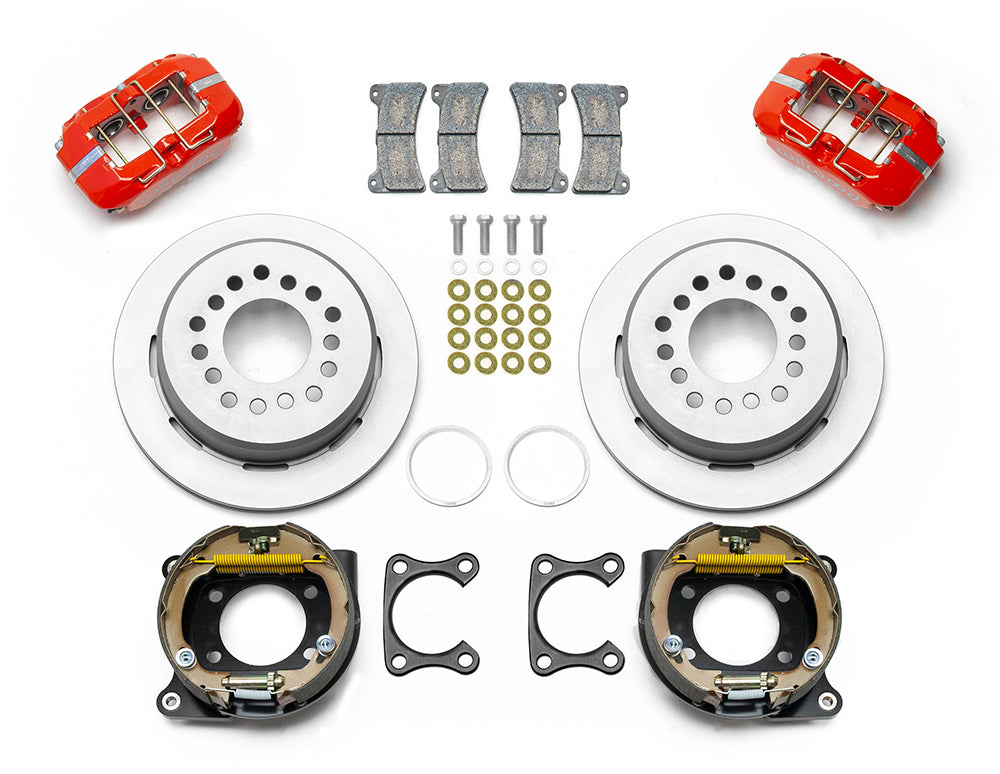

Wilwood Plain 11-Inch Rear Brake Package with Red Dynapro Calipers for Big Ford Flanges and 2.36-Inch Axle Offset

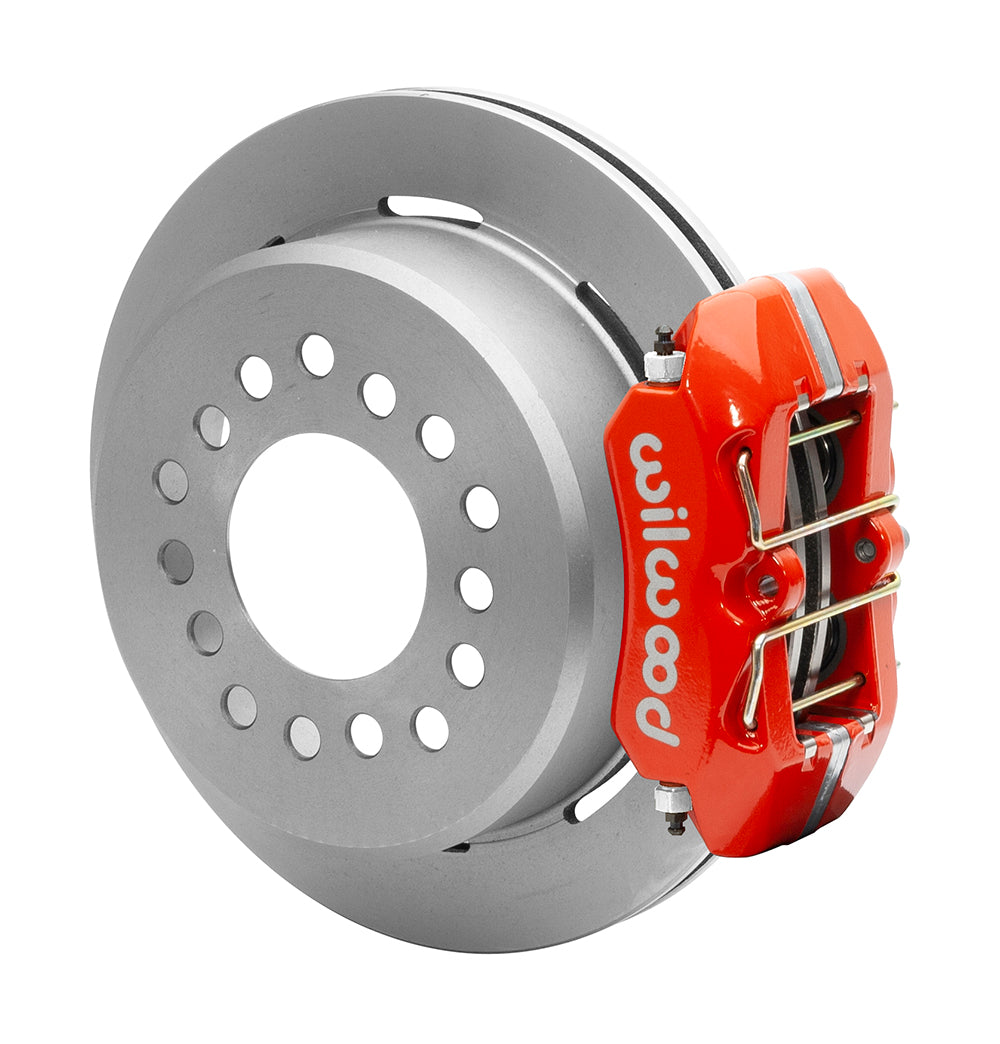

Red low-profile calipers and plain 11-inch rotors fit the specified Big Ford interface. Check the 2.36-inch axle offset and internal parking setup. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15601-R
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: low-profile Dynapro
• Pad compound: BP-10
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.52 in; 13.21 mm
• Rotor surface finish: Plain
• Rotor vane / construction reference: 32 V
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Required spindle / rear housing interface: Big Ford
• Required axle-flange offset: 2.36 in; 59.94 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No

Fitment & Compatibility

Select by the documented Big Ford rear housing flange and a 2.36-inch axle-flange offset, measured from the wheel-side axle-flange face to the housing-flange face. This geometry is distinct from the new-style Big Ford and Small Ford kits. Stock 1990 Lincoln Town Car fitment is unverified; the vehicle entry below does not establish the required axle geometry. Confirm the actual housing, axle register and offset before treating that vehicle assignment as verified. The 11.00 × 0.81-inch one-piece iron rotors incorporate parking hats; internal shoes are included, while cables, clevises, adapters and hoses are separate. Check the maximum 6.61-inch axle-flange diameter, specified chamfer and 3.06-inch rotor register; a 2.80-inch register adapter is supplied. Larger studs may require rotor-hole machining; 0.520-inch holes are clearance dimensions, not a thread. Match the wheel template even where nominal 14-inch guidance applies.

Listed models: Town Car. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions · Technical bulletin

With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
