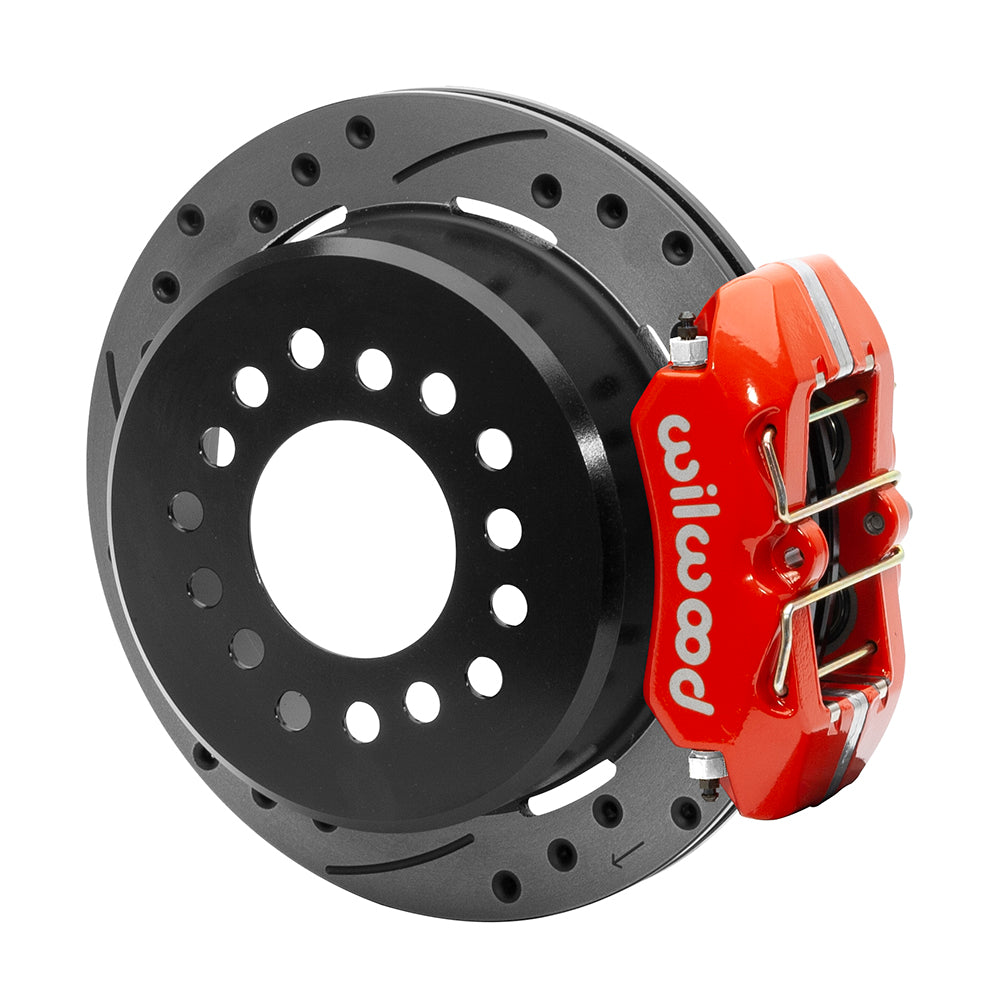

Wilwood Red Low-Profile Rear Brakes for Big Ford Axles with 2.36-Inch Offset and Drilled 11-Inch Rotors

Red Dynapro calipers, drilled parking-hat rotors and internal shoes form this rear conversion. Match the actual axle flange, register and 2.36-inch offset. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15601-DR
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc; Parking
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Required spindle / rear housing interface: Big Ford
• Required axle-flange offset: 2.36 in; 59.94 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.52 in; 13.21 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 32 V
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: low-profile Dynapro
• Pad compound: BP-10

Fitment & Compatibility

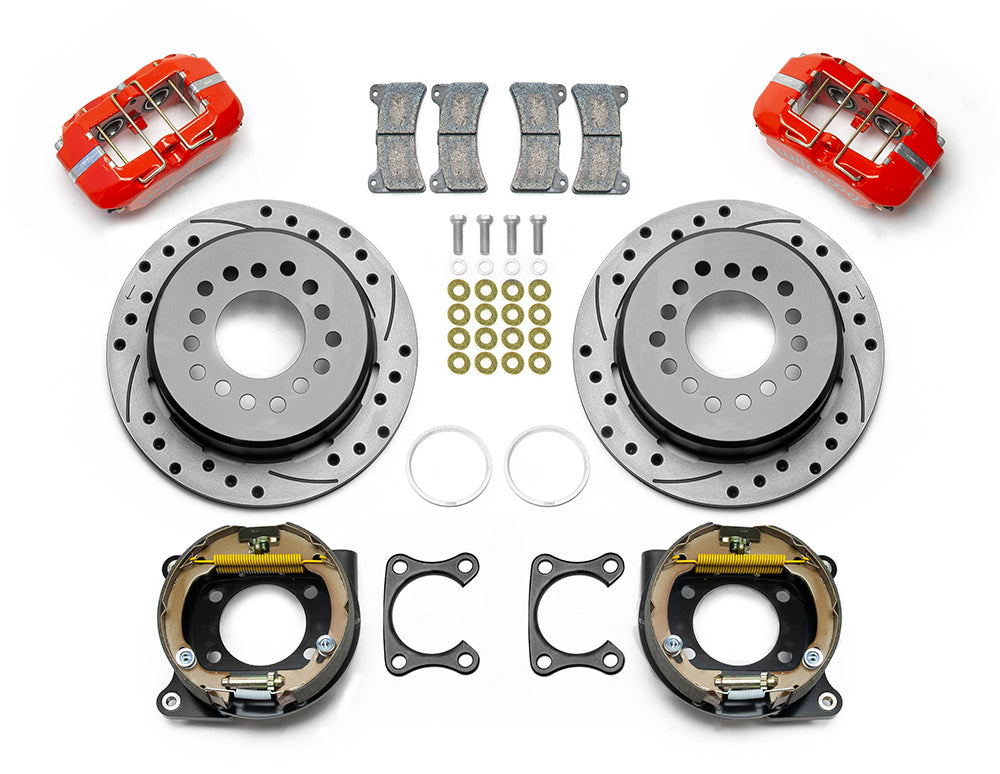

The red four-piston, drilled-and-slotted version uses the Big Ford housing-flange layout and exactly 2.36 inches of axle-flange offset. Verify that distance between the wheel-side axle flange and housing flange, then check the housing pattern, bearing arrangement and axle center register. Stock 1990 Lincoln Town Car compatibility is unverified. Confirm the physical axle interface before relying on the listed vehicle entry. The kit supplies 11.00 × 0.81-inch one-piece iron parking-hat rotors and internal parking shoes; hydraulic hoses, parking cables, clevises and vehicle cable adapters are extra. Rotor centering uses a 3.06-inch center or the supplied 2.80-inch register ring. The axle flange must meet the 6.61-inch maximum and specified chamfer. Check stud clearance and any required rotor-hole machining, then verify the wheel drawing rather than relying on the conditional 14-inch diameter guidance.

Listed models: Town Car. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions · Technical bulletin

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
