Product details

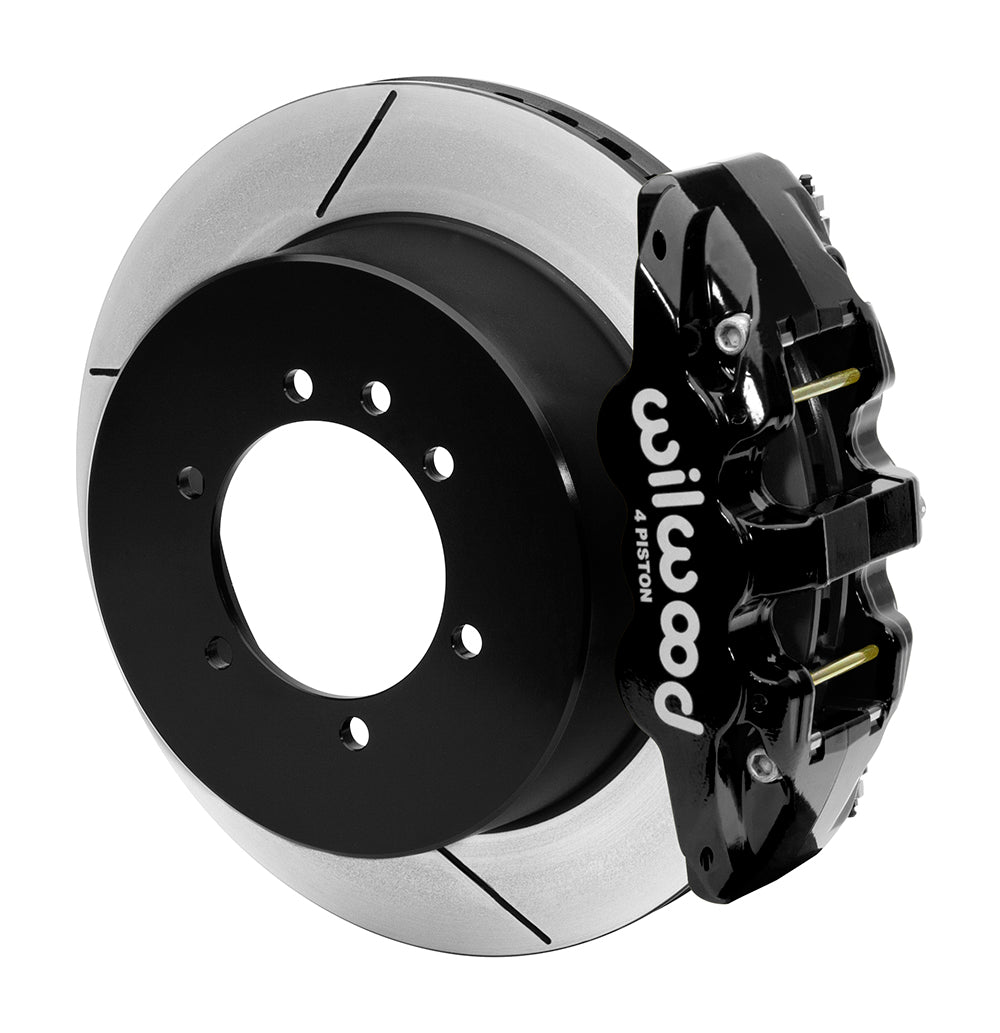

Black AERO4 calipers and integral-hat rotors suit the Patrol Y61 rear interface. Included hoses may need minor original hard-line adjustment. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15597
- Kit classification: Rear Brake Kits - Street Performance
- Axle position: Rear Kits
- Brake Type: Disc
- Selling unit: Sold as a kit.
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: Yes
- Rotor Outside Diameter: 14.25 in; 361.95 mm
- Rotor Thickness: 1.10 in; 27.94 mm
- Rotor Material: Iron
- Surface Type: GT Slotted
- Rotor construction: Vented
- Bolt Circle Diameter: 6 x 5.5 in; 6 x 139.7 mm
- Rotor-hat mounting-hole clearance diameter (not stud thread): 0.50 in; 12.70 mm
- Rotor surface finish: Black Electro Coat
- Rotor vane / construction reference: 42 V
- Pistons per service caliper: 4
- Service-caliper piston material: Stainless
- Service-caliper mounting: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Black
- Caliper Finish: Black Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: AERO4-DS
- Pad compound: BP-20
- Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
- Required spindle / rear housing interface: OEM
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
Fitment & Compatibility

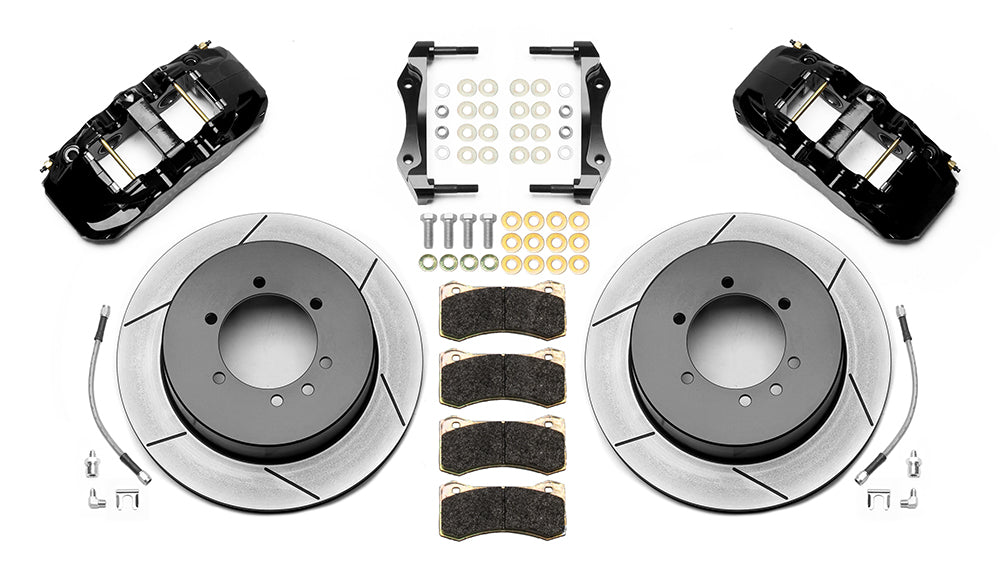

The documented rear installation is the 1997–2018 Nissan Patrol Y61 configuration in DS-1326. Four-piston dust-sealed AERO4 calipers use BP-20 pads and 14.25 × 1.10-inch one-piece iron rotors with integral parking hats. Retain the original parking-brake mechanism. Rear hose kit 220-15680 is included; minor adjustment to the original hard line may be necessary for a safe connection. Check the six-on-5.50-inch interface, caliper alignment and original parking equipment. Use the wheel drawing with the nominal 18-inch minimum guidance rather than assuming every wheel of that diameter clears. The current vehicle listing specifies Japan, Near East and Africa-market Patrol Y61 applications; verify the actual regional hub and brake configuration.
Wilwood product specifications · Installation instructions
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
