Product details

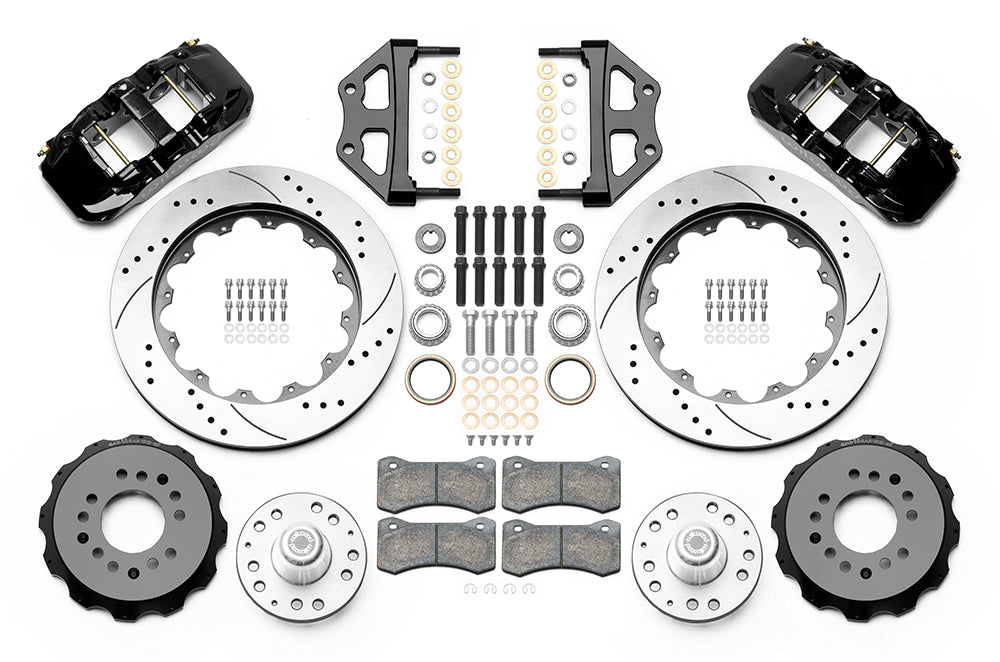

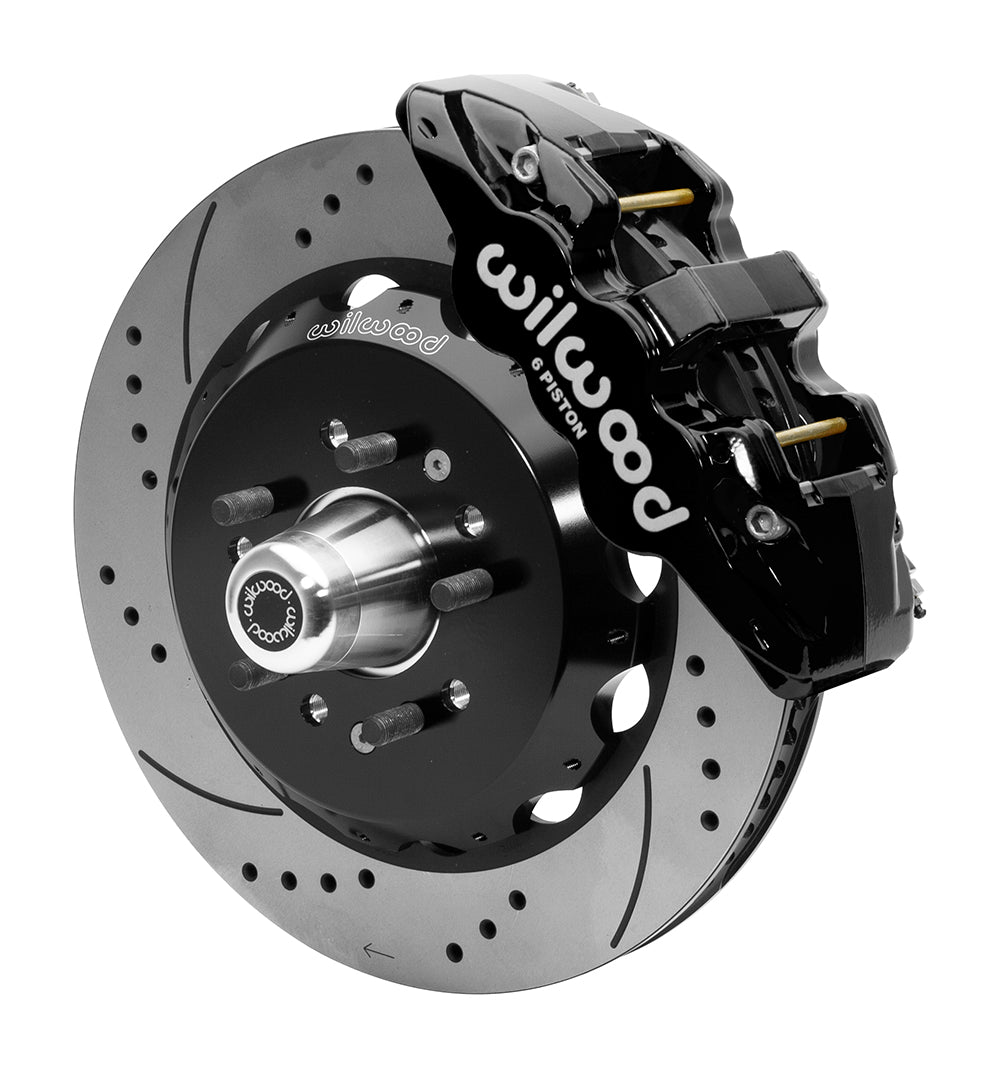

Drilled-and-slotted 14-inch rotors and black AERO6 calipers fit the specified CPP front interface. Verify the spindle casting and 18-inch wheel guidance. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15558-D
- Kit classification: Front Brake Kits - Street Performance
- Axle position: Front Kits
- Brake Type: Disc
- Selling unit: Sold as a kit.
- Pistons per service caliper: 6
- Service-caliper piston material: Stainless
- Service-caliper mounting: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Black
- Caliper Finish: Black Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: AERO6
- Pad compound: BP-10
- Rotor Outside Diameter: 14.00 in; 355.6 mm
- Rotor Thickness: 1.25 in; 31.75 mm
- Rotor Material: Spec-37 Iron
- Surface Type: SRP Drilled & Slotted
- Rotor construction: Vented
- Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Included wheel-stud thread: 1/2-20 thread
- Rotor surface finish: Black Electro Coat
- Rotor vane / construction reference: 72 CV
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset (not axle-flange offset): 1.100 in
- Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: Yes
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
- Separately specified hydraulic components: 220-7699; 220-8307
Fitment & Compatibility
Match the specific CPP two-inch drop spindle, casting CP30102, on the listed 1955–1957 Chevrolets before selecting this AERO6 conversion. Retain the 1957-only Del Ray restriction and the other models' individual rows. Six-piston AERO6 calipers clamp 14.00 × 1.25-inch rotors using separate hats and included aluminum hubs, bearings, seals and 1/2-20 studs. The new wheel patterns are 5 × 4.50 and 5 × 4.75 inches. Hydraulic hoses are not included; select the referenced line kit by actual route and end fittings. Confirm spindle casting, brake actuation and the wheel template; an 18-inch wheel diameter alone does not prove clearance.
Listed models: Bel Air; Nomad; One-Fifty Series; Sedan Delivery; Two-Ten Series; Del Ray. See the supplied table below for each year, submodel and equipment condition.
Wilwood product specifications · Installation instructions
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1955-1957 | Chevrolet | Bel Air | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1955-1957 | Chevrolet | Nomad | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1955-1957 | Chevrolet | One-Fifty Series | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1955-1957 | Chevrolet | Sedan Delivery | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1955-1957 | Chevrolet | Two-Ten Series | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1957 | Chevrolet | Del Ray | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
