Product details

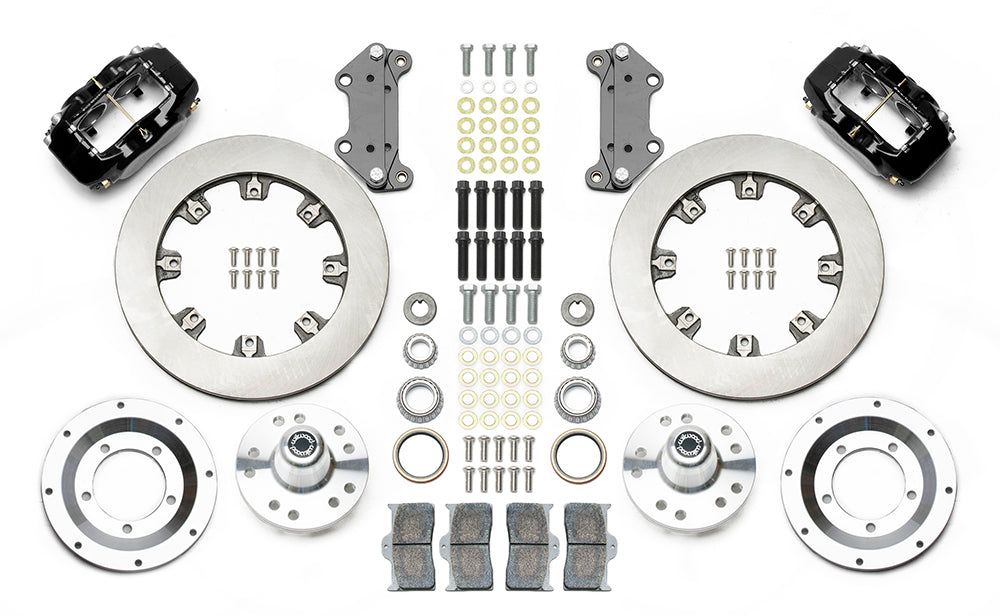

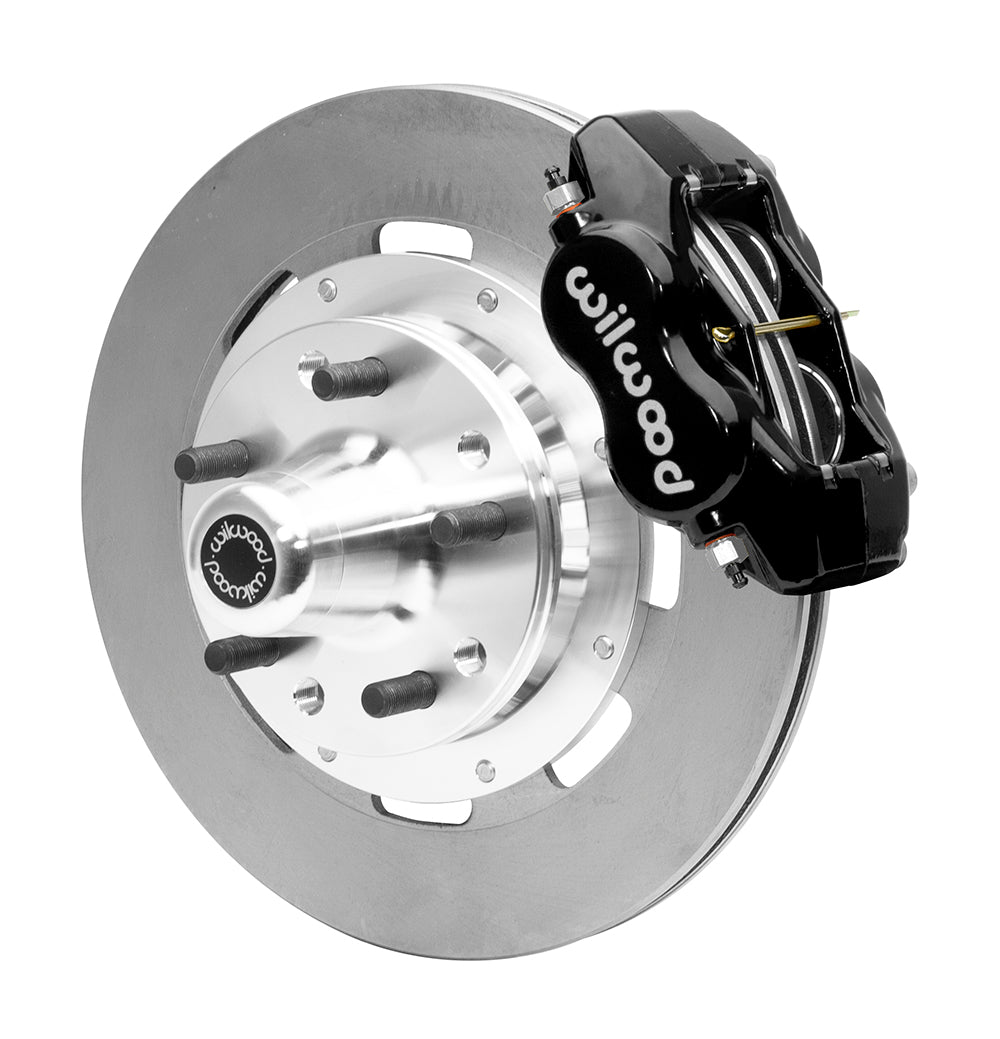

Black Dynalite calipers, plain 12.19-inch rotors and hubs suit the specified CPP two-inch drop spindles on listed 1955–1957 Chevrolets. Hoses are separate. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15548
- Kit classification: Front Brake Kits - Street Performance
- Axle position: Front Kits
- Brake Type: Disc
- Selling unit: Sold as a kit.
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
- Separately specified hydraulic components: 220-7699; 220-8307
- Rotor Outside Diameter: 12.19 in; 309.63 mm
- Rotor Thickness: 0.81 in; 20.57 mm
- Rotor Material: Iron
- Surface Type: Plain Face
- Rotor construction: Vented
- Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Included wheel-stud thread: 1/2-20 thread
- Rotor surface finish: Plain
- Rotor vane / construction reference: 32 V
- Pistons per service caliper: 4
- Service-caliper piston material: Stainless
- Service-caliper mounting: Lug
- Caliper body construction: Forged aluminum
- Caliper Color: Black
- Caliper Finish: Black Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: Dynalite
- Pad compound: BP-10
- Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: Yes
Fitment & Compatibility
The listed 1955–1957 Chevrolet applications require the specified CPP two-inch drop spindle, casting CP30102. This is not a stock-spindle conversion by model name alone. Listed Del Ray coverage is 1957 only; retain each other model's exact table range. Four-piston Dynalite calipers use BP-10 pads and 12.19 × 0.81-inch vented rotors. Aluminum hubs, bearings, seals and 1/2-20 studs are supplied, with 5 × 4.50 and 5 × 4.75-inch wheel patterns. Flexlines are separate; the 220-7699/220-8307 references must be selected for the actual fittings, steering travel and route. Check the supplied wheel drawing with the nominal 15-inch minimum guidance.
Listed models: Bel Air; Nomad; One-Fifty Series; Sedan Delivery; Two-Ten Series; Del Ray. See the supplied table below for each year, submodel and equipment condition.
Wilwood product specifications · Installation instructions
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
| Years | Make | Model | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|
| 1955-1957 | Chevrolet | Bel Air | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1955-1957 | Chevrolet | Nomad | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1955-1957 | Chevrolet | One-Fifty Series | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1955-1957 | Chevrolet | Sedan Delivery | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1955-1957 | Chevrolet | Two-Ten Series | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
| 1957 | Chevrolet | Del Ray | Vehicles using CPP 2" Drop Spindle CP30102 | Drop | Drum | Front Kit | 1, 2, 3, 4, 5 |
