Product details

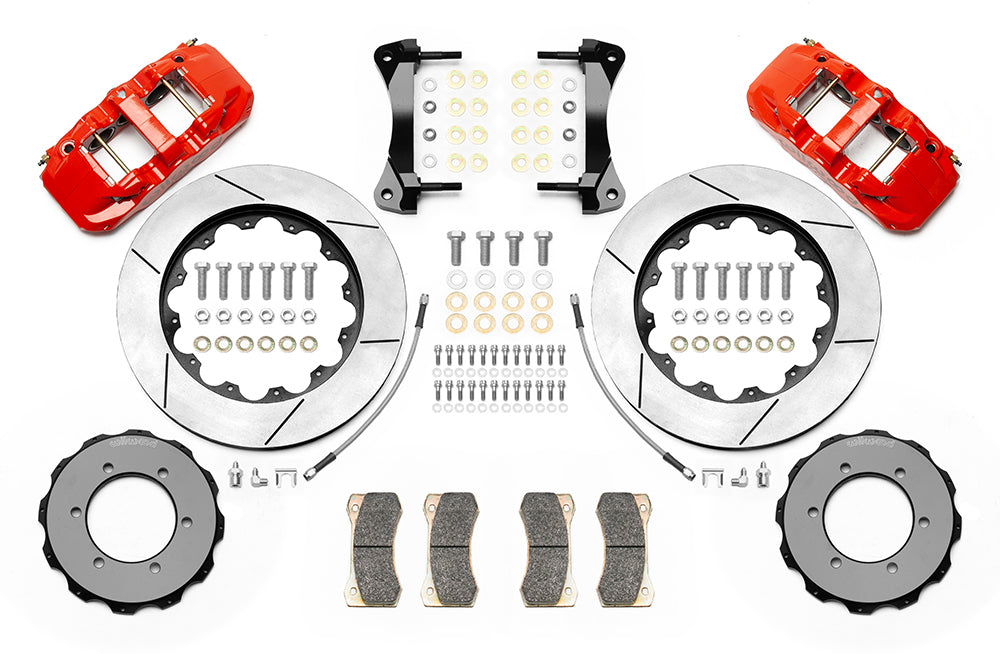

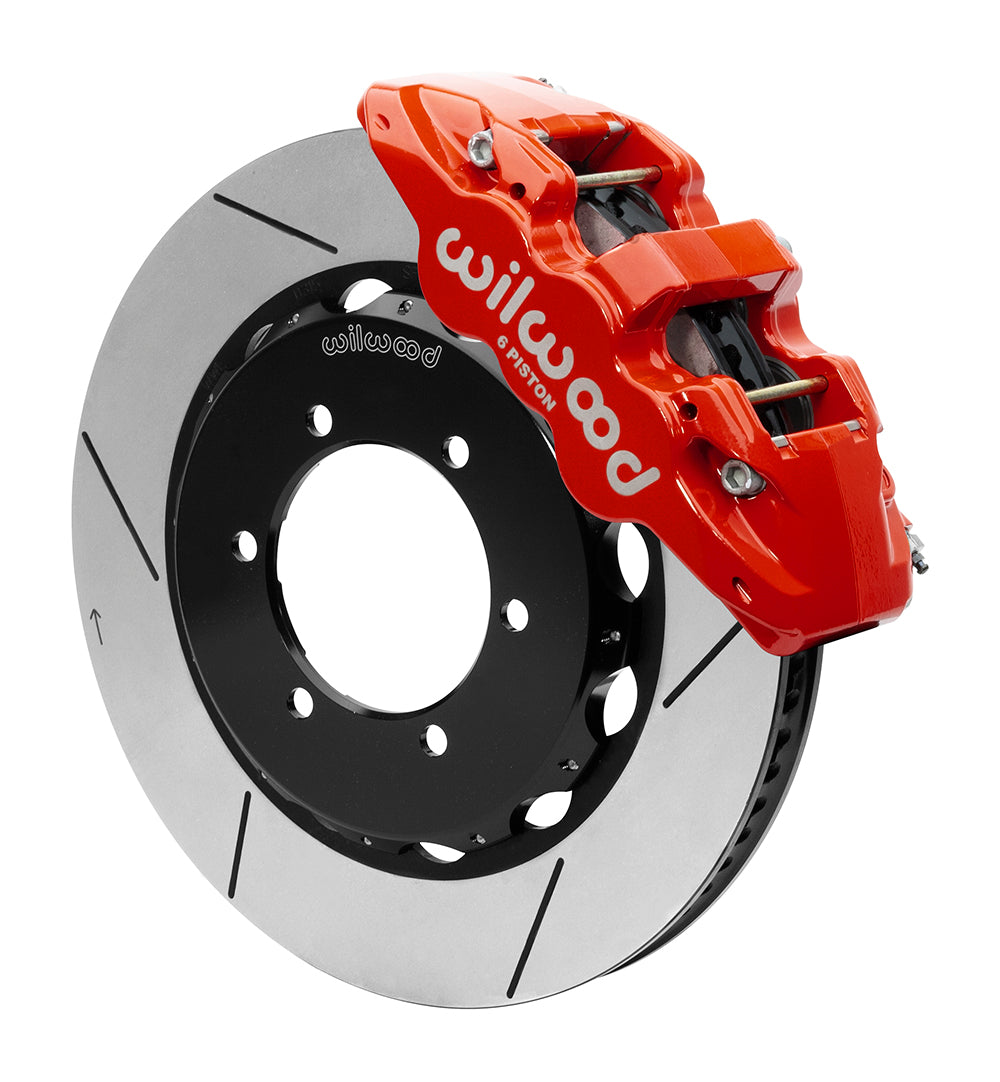

Red AERO6 calipers, GT rotors and braided lines form this Patrol front kit. The hat-to-hub mounting circle differs from the wheel lug pattern. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15525-R
- Kit classification: Front Brake Kits - Street Performance
- Axle position: Front Kits
- Brake Type: Disc
- Selling unit: Sold as a kit.
- Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: No
- Pistons per service caliper: 6
- Service-caliper piston material: Stainless
- Service-caliper mounting: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Red
- Caliper Finish: Red Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: AERO6-DS
- Pad compound: BP-20
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: Yes
- Rotor Outside Diameter: 14.25 in; 361.95 mm
- Rotor Thickness: 1.25 in; 31.75 mm
- Rotor Material: Spec-37 Iron
- Surface Type: GT Slotted
- Rotor construction: Vented
- Hat-to-original-hub mounting circle (not wheel lug pattern): 6 x 5.39 in; 6 x 136.91 mm
- Rotor-hat mounting-hole clearance diameter (not stud thread): 0.490 in; 12.45 mm
- Rotor surface finish: Black Electro Coat
- Rotor vane / construction reference: 72 CV
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset (not axle-flange offset): 0.470 in
Fitment & Compatibility
For the specified 1997–2018 Nissan Patrol Y61 front installation in DS-1308, retaining the original hubs. AERO6 dust-sealed six-piston calipers use BP-20 pads and 14.25 × 1.25-inch Spec37 GT rotors. The approximately 6 × 5.394-inch circle is the hat-to-original-hub mounting pattern; it is not the wheel lug pattern. The associated 0.490-inch clearance holes likewise are not a wheel-stud thread specification. Follow the M12 × 1.75 hub-to-hat fastener arrangement and assembly sequence in the sheet. Front braided hose kit 220-15535 is included. Check hub condition, hose routing and the clearance template; the nominal minimum wheel guidance is 18 inches. The current vehicle listing specifies Japan, Near East and Africa-market Patrol Y61 applications; verify the actual regional hub and brake configuration.
Wilwood product specifications · Installation instructions
PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
