Product details

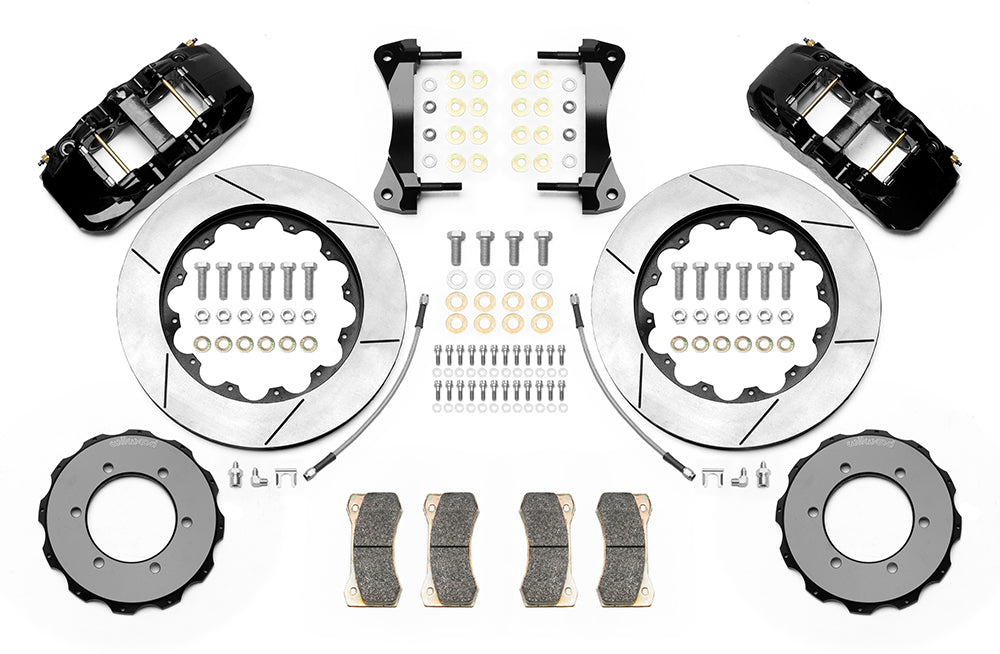

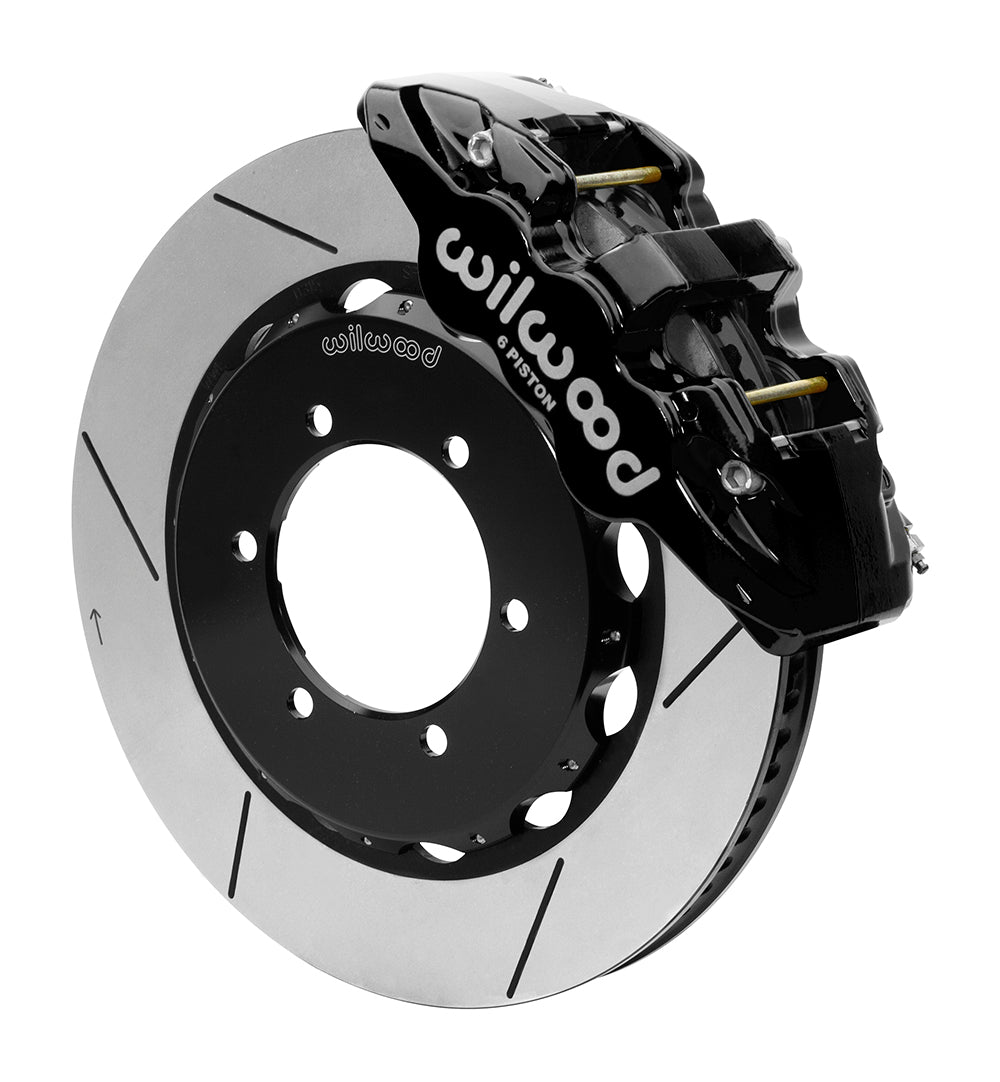

Black six-piston calipers, slotted 14.25-inch rotors and included hoses suit the specified Patrol Y61 front hubs. Confirm wheel clearance and hub mounting. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15525
- Kit classification: Front Brake Kits - Street Performance
- Axle position: Front Kits
- Brake Type: Disc
- Selling unit: Sold as a kit.
- Rotor Outside Diameter: 14.25 in; 361.95 mm
- Rotor Thickness: 1.25 in; 31.75 mm
- Rotor Material: Spec-37 Iron
- Surface Type: GT Slotted
- Rotor construction: Vented
- Hat-to-original-hub mounting circle (not wheel lug pattern): 6 x 5.39 in; 6 x 136.91 mm
- Rotor-hat mounting-hole clearance diameter (not stud thread): 0.490 in; 12.45 mm
- Rotor surface finish: Black Electro Coat
- Rotor vane / construction reference: 72 CV
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset (not axle-flange offset): 0.470 in
- Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: No
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: Yes
- Pistons per service caliper: 6
- Service-caliper piston material: Stainless
- Service-caliper mounting: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Black
- Caliper Finish: Black Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: AERO6-DS
- Pad compound: BP-20
Fitment & Compatibility
For the specified 1997–2018 Nissan Patrol Y61 front installation in DS-1308, retaining the original hubs. AERO6 dust-sealed six-piston calipers use BP-20 pads and 14.25 × 1.25-inch Spec37 GT rotors. The approximately 6 × 5.394-inch circle is the hat-to-original-hub mounting pattern; it is not the wheel lug pattern. The associated 0.490-inch clearance holes likewise are not a wheel-stud thread specification. Follow the M12 × 1.75 hub-to-hat fastener arrangement and assembly sequence in the sheet. Front braided hose kit 220-15535 is included. Check hub condition, hose routing and the clearance template; the nominal minimum wheel guidance is 18 inches. The current vehicle listing specifies Japan, Near East and Africa-market Patrol Y61 applications; verify the actual regional hub and brake configuration.
Wilwood product specifications · Installation instructions
For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
