Product details

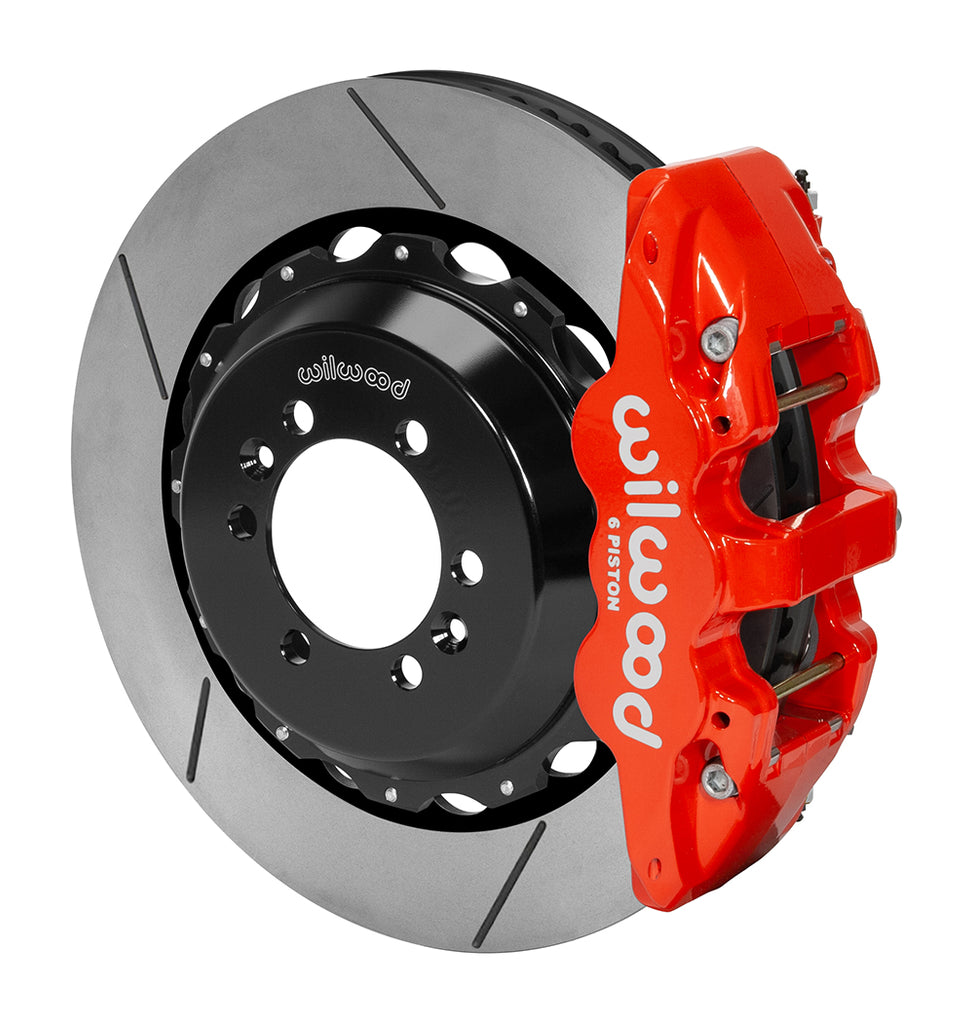

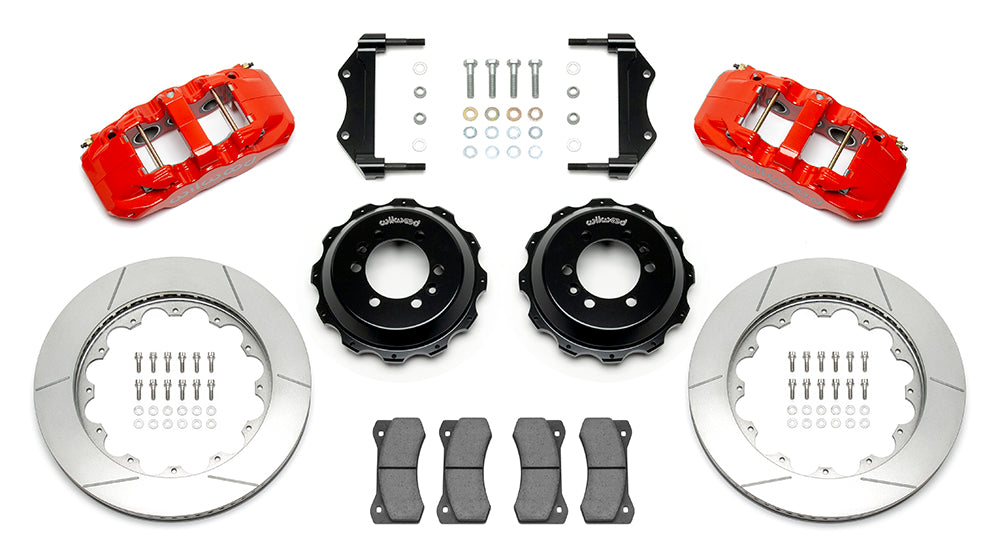

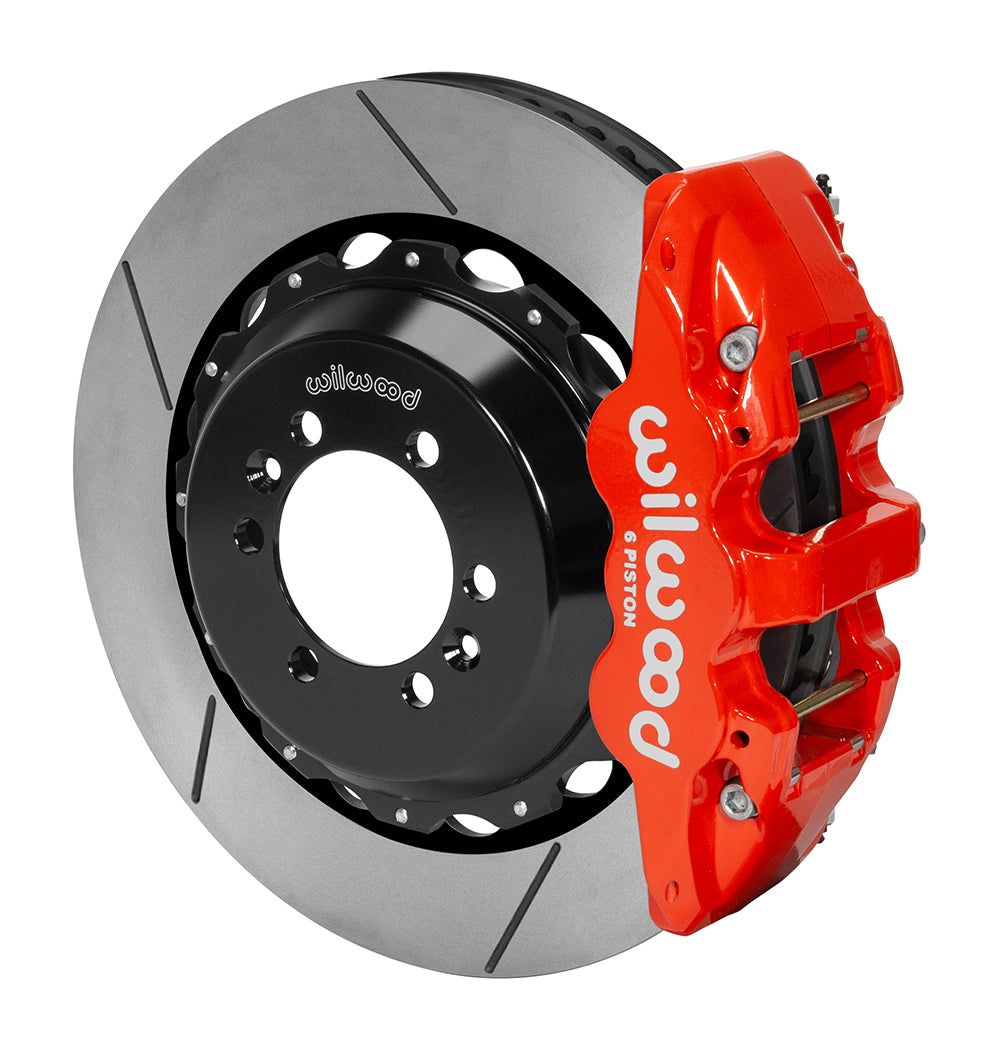

For the Superformance GT40 rear interface, red AERO6 calipers pair with slotted Spec37 rotors and separate hats. Flexlines are purchased separately. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15498-R
- Kit classification: Rear Brake Kits - Street Performance
- Axle position: Rear Kits
- Brake Type: Disc; Parking
- Selling unit: Sold as a kit.
- Pistons per service caliper: 6
- Service-caliper piston material: Stainless
- Service-caliper mounting: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Red
- Caliper Finish: Red Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: AERO6
- Pad compound: BP-20
- Rotor Outside Diameter: 14.00 in; 355.6 mm
- Rotor Thickness: 1.25 in; 31.75 mm
- Rotor Material: Spec-37 Iron
- Surface Type: GT Slotted
- Rotor construction: Vented
- Specified rotor-hat mounting pattern: 6 x 4.25 in; 6 x 107.95 mm
- Rotor-hat mounting-hole clearance diameter (not stud thread): 0.530 in; 13.46 mm
- Rotor surface finish: Black Electro Coat
- Rotor vane / construction reference: 72 CV
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset (not axle-flange offset): 1.270 in
- Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: No
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
Fitment & Compatibility
This rear kit is specific to the documented Superformance GT40 installation, not general original or replica GT40 compatibility. Six-piston AERO6/Aerolite 6R calipers provide hydraulic service braking. The 14.00 × 1.25-inch Spec37 GT rotor rings attach to separate aluminum hats with the specified six-on-4.25-inch mounting interface. Retain the existing parking mechanism. No hydraulic hoses are included; select appropriate lines, end fittings and length for the actual car. Check the hat/hub interface, caliper alignment and wheel drawing.
Wilwood product specifications · Installation instructions
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
