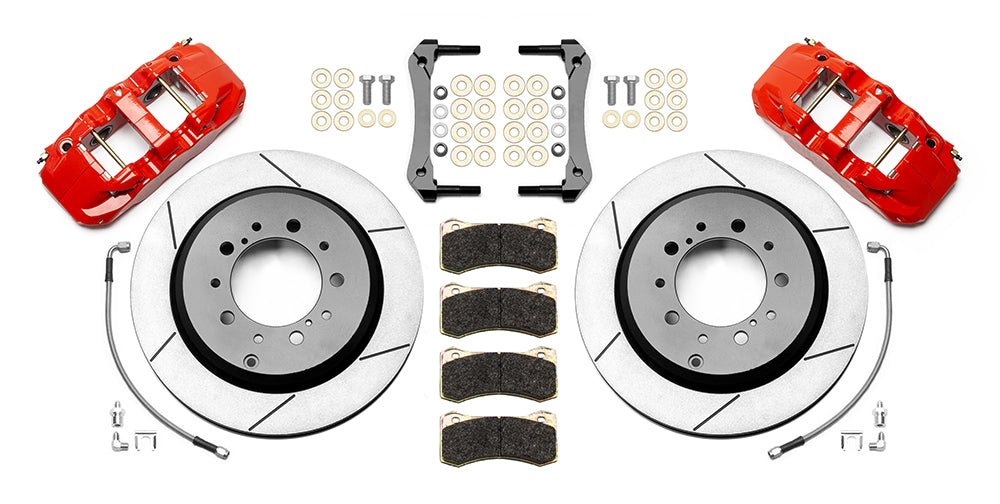

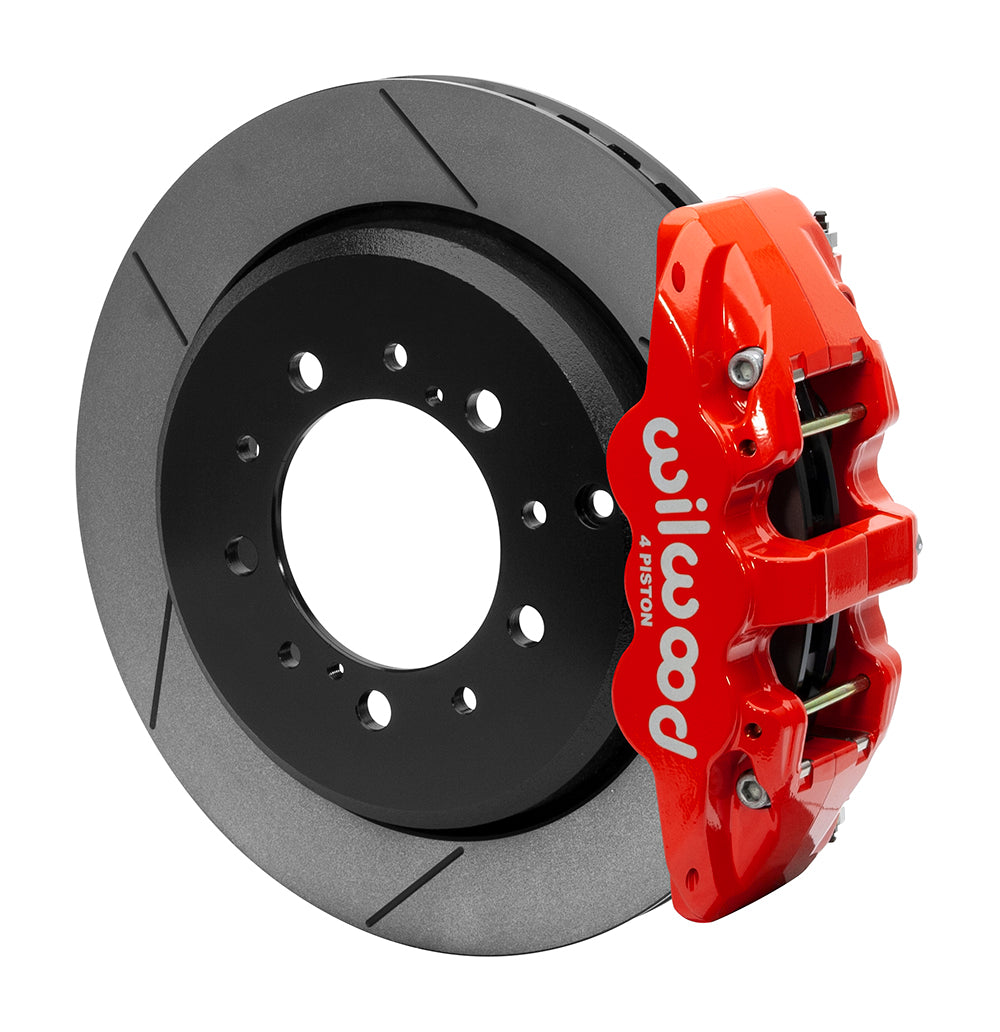

Wilwood 14.50-Inch Rear Disc Brake Conversion with Red AERO4 Calipers for Specified Toyota Trucks and Lexus LX 570

Red four-piston calipers pair with integral-hat rotors on listed Toyota/Lexus rear axles. Check year limits, parking hardware and machining needs. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15474-R
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Required spindle / rear housing interface: OEM
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Rotor Outside Diameter: 14.50 in; 368.3 mm
• Rotor Thickness: 1.10 in; 27.94 mm
• Rotor Material: Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 X 5.91 in; 5 X 150.11 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.64 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 42 V
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO4-DS
• Pad compound: BP-20
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

Rear application years differ from the matching front family: Tundra is listed for 2007–2015, Land Cruiser J200/Lexus LX 570 for 2008–2011 and 2013–2015, and Sequoia for 2008 only. Do not extend the front Sequoia range to this rear kit or infer the missing 2012 applications. The correct rear rotor diameter is 14.50 inches, with 1.10-inch thickness and an integral iron parking hat. Retain the original parking mechanism. Four-piston dust-sealed AERO4 calipers use BP-20 pads; rear hoses 220-15889 are included. DS-1357 requires cutting the backing plate/dust shield and original upright caliper-mount tabs; qualified machining is necessary. Confirm this work and the wheel template before selecting the kit.

Listed models: Tundra; LX570; Land Cruiser; Sequoia. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
