Wilwood 14.25-Inch Front Conversion with Red AERO6 Calipers for Verified Toyota and Lexus Truck/SUV Applications

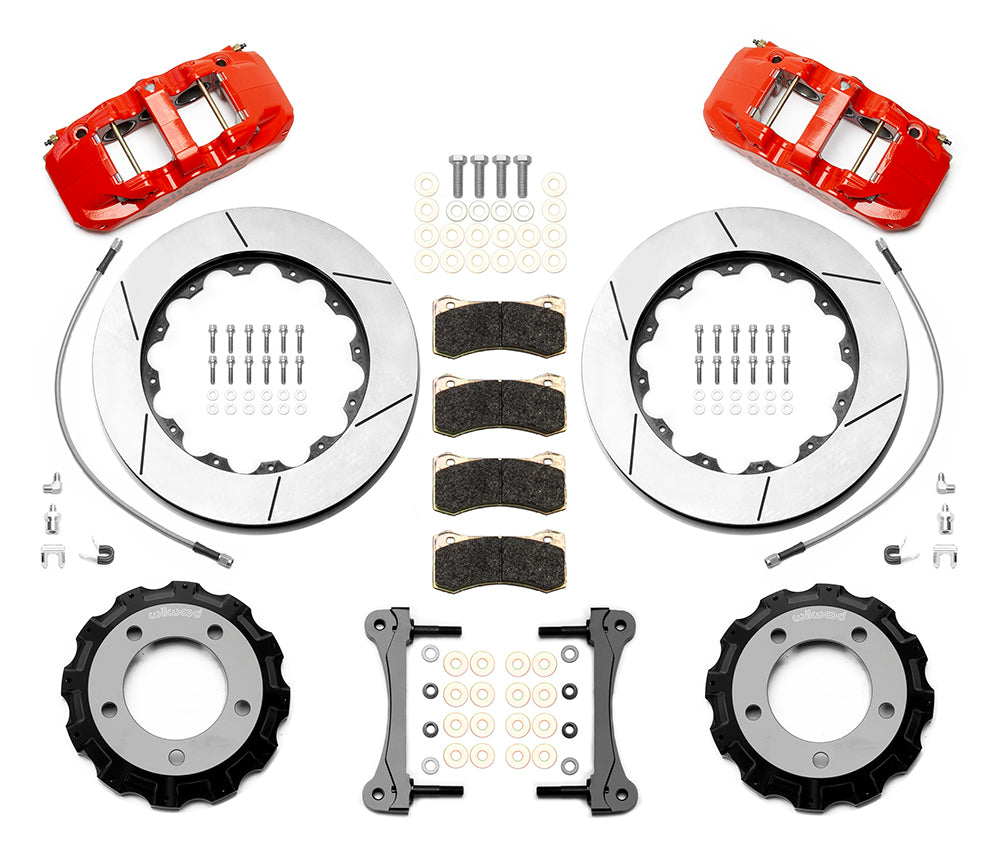

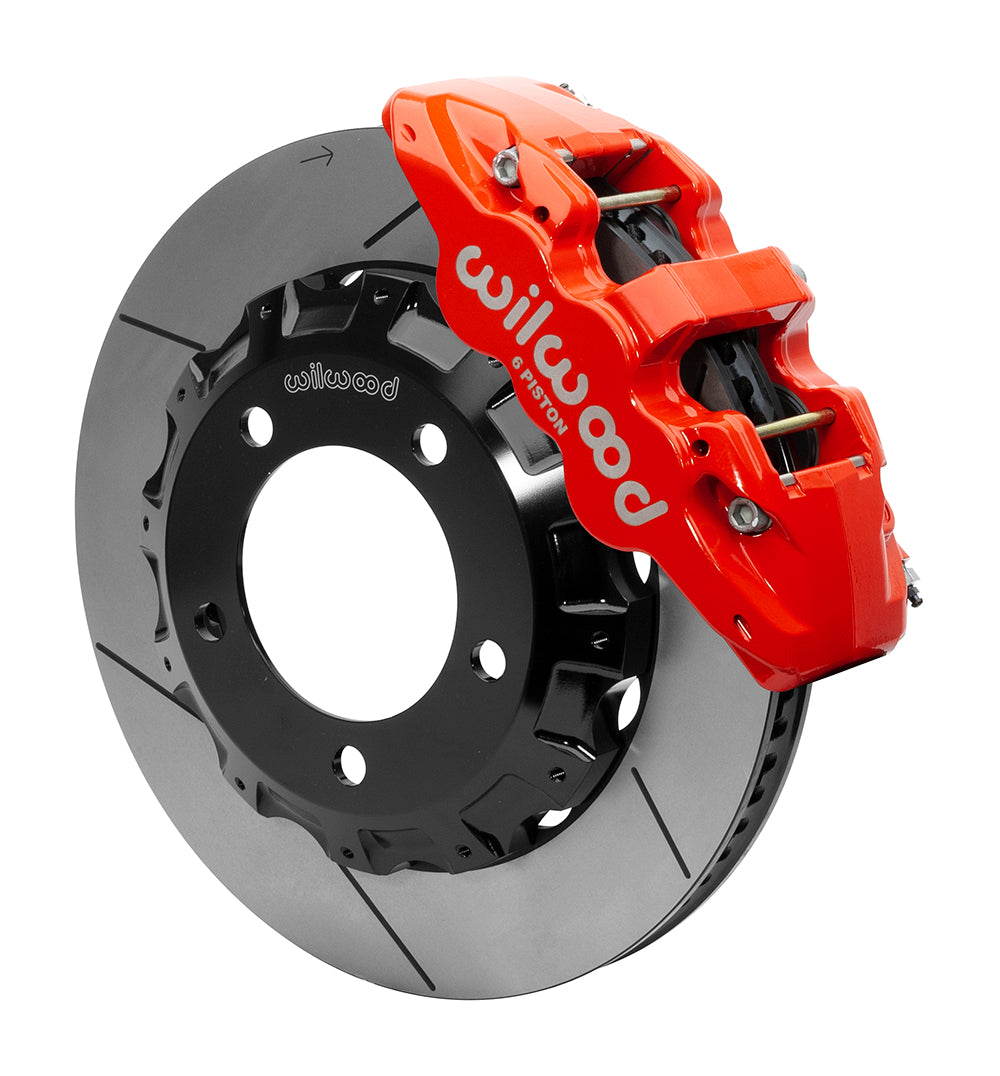

Red AERO6 calipers, 14.25-inch GT rotors and hoses form this front kit. Check separate Tundra, Sequoia, Land Cruiser and LX 570 year limits. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15473-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 14.25 in; 361.95 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 5.91 in; 5 x 150.11 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 1.240 in
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6-DS
• Pad compound: BP-20

Fitment & Compatibility

The front table specifies Tundra for 2007–2015; Land Cruiser J200 and Lexus LX 570 for 2008–2011 and 2013–2015; and Sequoia for 2008–2022. The 2012 Land Cruiser/LX 570 gap is retained; do not fill it by inference. Six-piston dust-sealed AERO6 calipers use BP-20 pads and 14.25 × 1.25-inch Spec37 GT rotors with separate aluminum hats. The listed wheel pattern is 5 × 5.91 inches. Front hose kit 220-15888 is included. Check the exact hub/upright and wheel template, using 18 inches only as minimum wheel-diameter guidance.

Listed models: Tundra; LX570; Land Cruiser; Sequoia. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.
